REAR BODY SIDE PANEL

65080BHANDLE ASSY, SIDE GATE LATCH

main65080-BZ012iS403..T2202205

G - ABS&L/REAR BODY W/ REINFORCE

65090AHANDLE ASSY, SIDE GATE LATCH, LH

main65090-BZ012iS403..T2202205

G - ABS&L/REAR BODY W/ REINFORCE

65500PANEL ASSY, REAR BODY SIDE, RH

main65001-BZ060iS403..T2202205

G - ABS&L/REAR BODY W/ REINFORCE

65504APOST SUB-ASSY, SIDE PANEL FRONT END, LH

main65205-BZ013iS403..T2202205

G - ABS&L/REAR BODY W/ REINFORCE

65550POST ASSY, SIDE PANEL FRONT END, RH

main65204-BZ013iS403..T2202205

G - ABS&L/REAR BODY W/ REINFORCE

65600PANEL ASSY, REAR BODY SIDE, LH

main65002-BZ060iS403..T2202205

G - ABS&L/REAR BODY W/ REINFORCE

65679FPROTECTOR, SIDE GATE

main66135-B5010iS403..T2202205

PHILIPPINE&G - ABS&L/REAR BODY W/ REINFORCE

66110CHINGE ASSY, SIDE GATE, NO.1 RH

main66110-BZ071iS403..T2202205

G - ABS&L/REAR BODY W/ REINFORCE

66120CHINGE ASSY, SIDE GATE, NO.1 LH

main66110-BZ071iS403..T2202205

G - ABS&L/REAR BODY W/ REINFORCE

66151LATCH, SIDE GATE FEMALE, RH

main66151-BZ021iS403..T2202205

G - ABS&L/REAR BODY W/ REINFORCE

66152LATCH, SIDE GATE FEMALE, LH

main66152-BZ021iS403..T2202205

G - ABS&L/REAR BODY W/ REINFORCE

66153ALATCH, TAIL GATE FEMALE, RH

main66153-BZ040iS403..T2202205

G - ABS&L/REAR BODY W/ REINFORCE

66154ALATCH, TAIL GATE FEMALE, LH

main66153-BZ040iS403..T2202205

G - ABS&L/REAR BODY W/ REINFORCE

66167CAP, SIDE GATE LATCH HANDLE

main66165-BZ010iS403..T2202205

PHILIPPINE&G - ABS&L/REAR BODY W/ REINFORCE

66311EHOOK, ROPE

main66310-BZ010iS403..T2202205

G - ABS&L/REAR BODY W/ REINFORCE

66311GHOOK, ROPE

main66310-BZ010iS403..T2202205

G - ABS&L/REAR BODY W/ REINFORCE

9004467557

main90044-67557

9004A11339

main9004A-11339

9004A11340

main9004A-11340

9004A11359

main9004A-11359

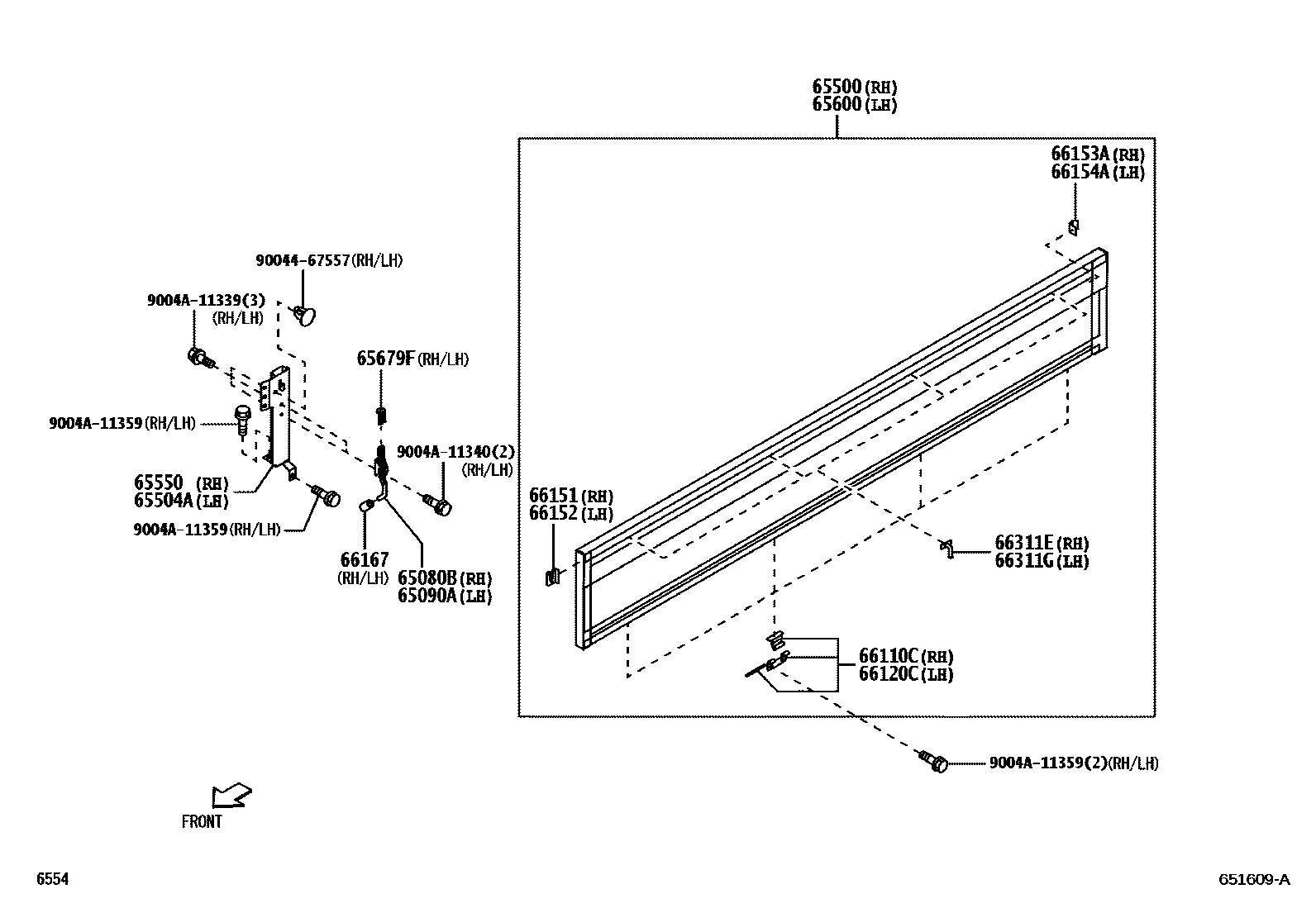

20 parts on this diagram · 1 diagram in section
