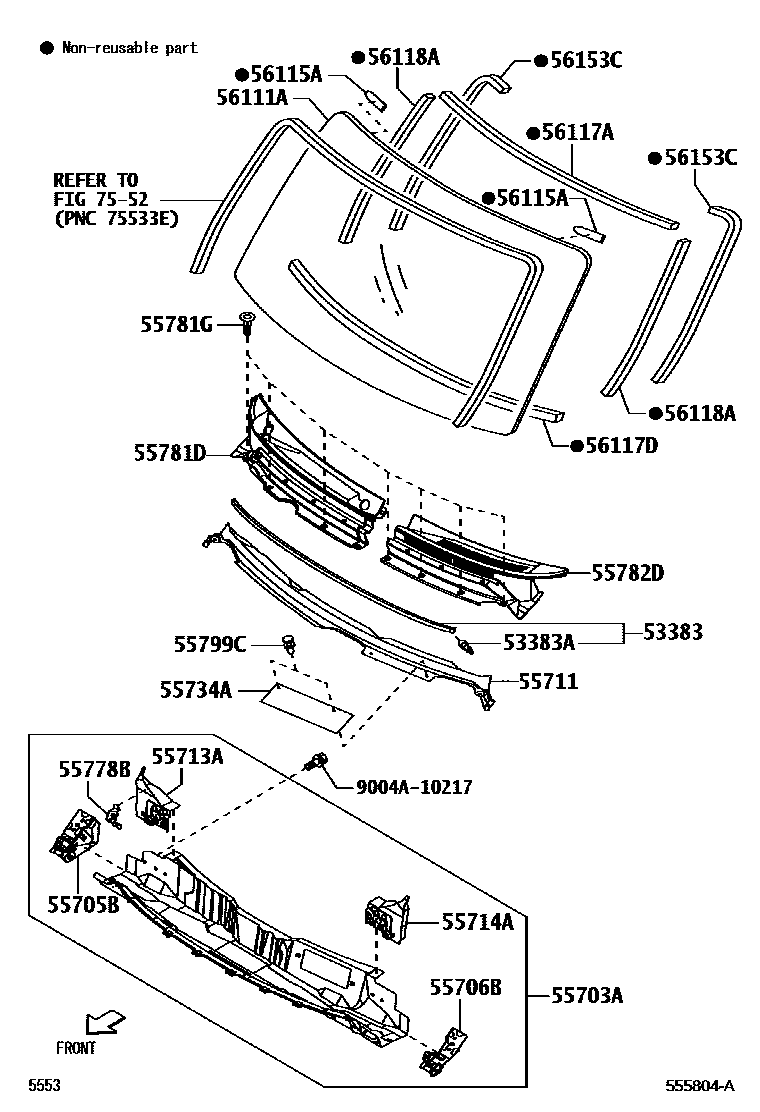

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383SEAL, HOOD TO COWL TOP

main53383-BZ050iS403¥1,060202205

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90044-67533iS403¥200202205

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-BZ590iS403..RHD202205

main55703-BZ800iS403..LHD202205

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-BZ050iS403202205

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-BZ050iS403202205

55711PANEL, COWL TOP, OUTER

main55701-BZ110iS403..RHD¥13,600202205

main55701-BZ120iS403..LHD202205

55713APANEL, COWL TOP SIDE, RH

main61121-BZ030iS403202205

55714APANEL, COWL TOP SIDE, LH

main61122-BZ030iS403202205

55734APLATE, WATER GUARD, RH

main55734-BZ010iS403¥650202205

55778BBRACKET, IDENTIFICATION NUMBER PLATE

main55774-BZ110iS403..LHD202205

main55774-BZ120iS403..RHD¥520202205

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-BZ090iS403..LHD202205

main55781-BZ120iS403..RHD202205

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07055-C1iS403202205

-

sub90467-07055¥160

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-BZ080iS403..LHD202205

main55782-BZ110iS403..RHD202205

55799CCLIP, COWL TOP VENTILATOR LOUVER

main9004A-46323iS403¥170202205

56111AGLASS, WINDSHIELD

main56111-BZ180iS403¥62,100202205

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-BZ080iS403¥340202205

56117ADAM, WINDOW GLASS ADHESIVE

main56117-BZ030iS403202205

L=1326

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-BZ030iS403202205

L=1406

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56117-BZ050iS403202205

L=665

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56151-BZ010iS403202205

7552

9004A10217

main9004A-10217

22 parts on this diagram · 2 diagrams in section
