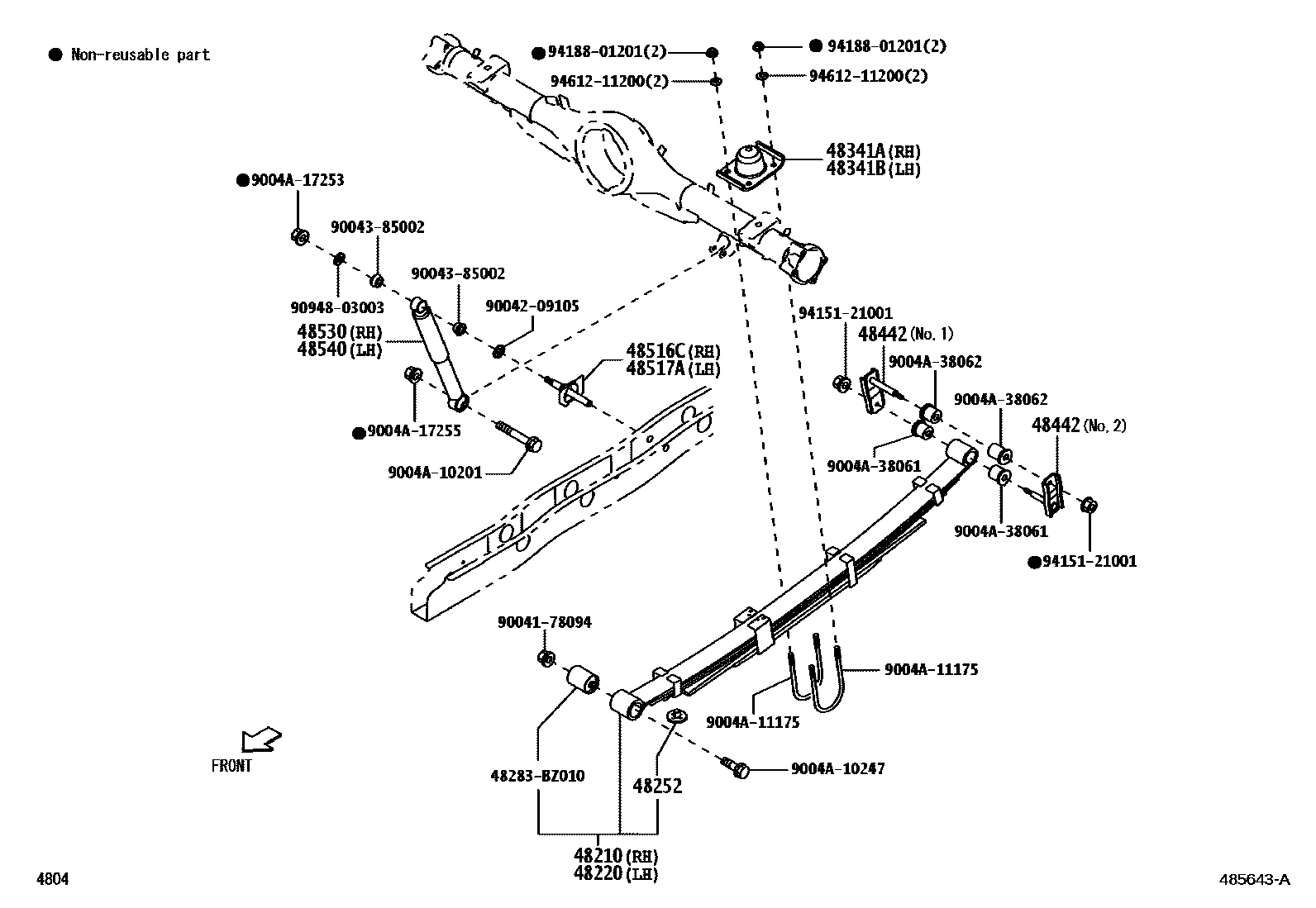

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

48210SPRING ASSY, REAR RH

main48210-BZ100iS403..T2202205

48220SPRING ASSY, REAR LH

main48210-BZ100iS403..T2202205

48252SILENCER, REAR SPRING

main48252-BZ011iS403..T2202205

48341BUMPER, REAR SPRING

main48341-BZ010iS403..VAN202205

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-BZ060iS403..T2202205

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-BZ060iS403..T2202205

48442SHACKLE, SPRING, NO.2

main48408-BZ020iS403..T2202205

NO.1

main48408-BZ030iS403..T2202205

NO.2

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48505-BZ080iS403..VAN202205

48516CBRACKET, REAR SHOCK ABSORBER, NO.1 RH

main48505-BZ060iS403..T2202205

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48505-BZ080iS403..VAN202205

48517ABRACKET, REAR SHOCK ABSORBER, NO.1 LH

main48505-BZ071iS403..T2202205

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-BZ230iS403..T2202205

MARK 48530-BZ230

main48531-BZ820iS403..VAN202205

MARK 48531-BZ820

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-BZ230iS403..T2202205

MARK 48530-BZ230

main48531-BZ820iS403..VAN202205

MARK 48531-BZ820

48283BZ010CLIP, REAR HELPER SPRING, NO.2

main48283-BZ010

9004178094

main90041-78094

9004209105

main90042-09105

9004385002

main90043-85002

9004A10201

main9004A-10201

9004A10247

main9004A-10247

9004A11175

main9004A-11175

9004A17253

main9004A-17253

9004A17255

main9004A-17255

9004A38061

main9004A-38061

9004A38062

main9004A-38062

9094803003

main90948-03003

9415121001

main94151-21001

9418801201

main94188-01201

9461211200

main94612-11200

28 parts on this diagram · 2 diagrams in section
