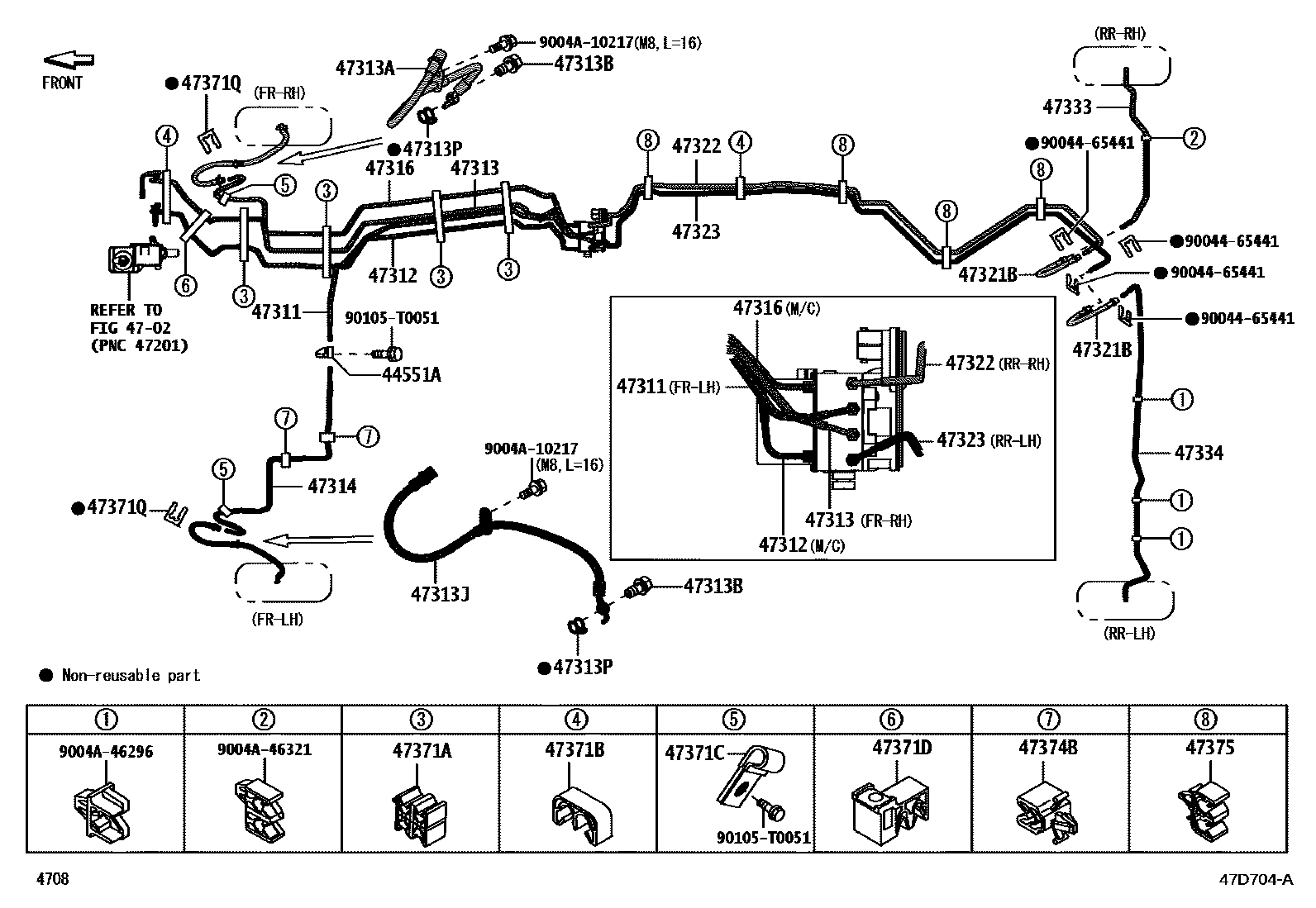

BRAKE TUBE & CLAMP
44551AWAY, NO.1(FOR BRAKE ACTUATOR)
4702
47311TUBE, FRONT BRAKE, NO.1
PHILIPPINE&G - ABS&W/O ABS(ANTI-LOCK BRK SYSTM)
47312TUBE, FRONT BRAKE, NO.2
PHILIPPINE&G - ABS&W/O ABS(ANTI-LOCK BRK SYSTM)
CAMBODIA&G - ABS + VSC P/W CNTLOCK&W/O ABS(ANTI-LOCK BRK SYSTM)&WITH VSC
PHILIPPINE&G - ABS + VSC CNT-LOCK&W/O ABS(ANTI-LOCK BRK SYSTM)
47313TUBE, FRONT BRAKE, NO.3
PHILIPPINE&G - ABS&W/O ABS(ANTI-LOCK BRK SYSTM)
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
PHILIPPINE&G - ABS&W/O ABS(ANTI-LOCK BRK SYSTM)
47316TUBE, FRONT BRAKE, NO.6
CAMBODIA&G - ABS + VSC P/W CNTLOCK&W/O ABS(ANTI-LOCK BRK SYSTM)&WITH VSC
PHILIPPINE&G - ABS + VSC CNT-LOCK&W/O ABS(ANTI-LOCK BRK SYSTM)
47321TUBE, REAR BRAKE, NO.1
PHILIPPINE&G - ABS&W/O ABS(ANTI-LOCK BRK SYSTM)
47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
G - ABS&W/O ABS(ANTI-LOCK BRK SYSTM)
47334TUBE, REAR BRAKE, NO.13
G - ABS&W/O ABS(ANTI-LOCK BRK SYSTM)
47371ACLAMP, BRAKE TUBE, NO.1
47371BCLAMP, BRAKE TUBE, NO.6
47371CCLAMP, BRAKE TUBE, NO.7
47371DCLAMP, BRAKE TUBE, NO.8
47371QCLAMP, BRAKE TUBE, NO.15
47374BCLAMP, BRAKE TUBE, NO.4
PHILIPPINE&G - ABS&W/O ABS(ANTI-LOCK BRK SYSTM)
47375CLAMP, BRAKE TUBE, NO.5
9004465441
main90044-65441
9004A10217
main9004A-10217
9004A46296
main9004A-46296
9004A46321
main9004A-46321
90105T0051
main90105-T0051
29 parts on this diagram · 7 diagrams in section
