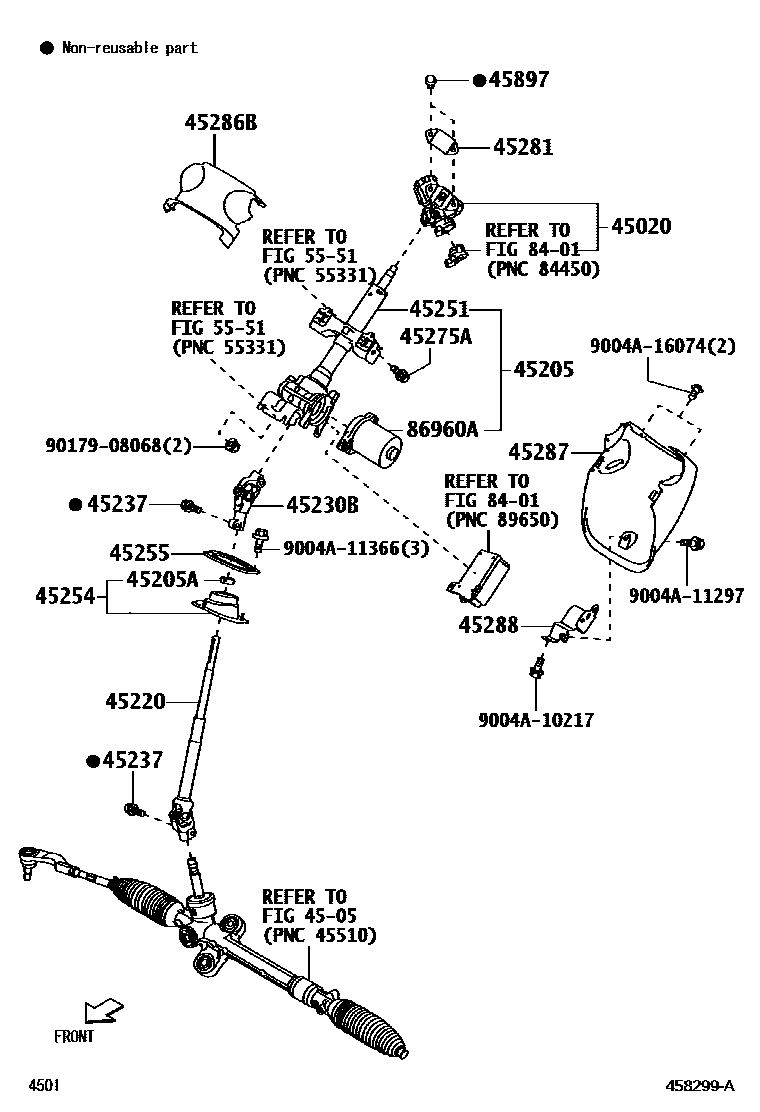

STEERING COLUMN & SHAFT

0001 1RHD 0002 1LHD

45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH

main45020-BZ270iS403..4FC..GCC202406

main45020-BZ280iS403..RHD..5F..GEN202205

G + IMMOBI

main45020-BZ280iS403..RHD..5F..GEN202205

G+KEYLES IMOBI PW CNTLOCK

main45020-BZ280iS403..5F..GCC202406

main45020-BZ290iS403..5F..GCC202205-202406

main45020-BZ290iS403..LHD..GEN;S403..5F..(CRI,MMR,THAI)202205

G + P/W PACK

main45020-BZ430iS403..4FC..(GEN,MMR)202205-202406

4505

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-BZ210iS403202205

45205ABUSH(FOR STEERING COLUMN TUBE)

main45273-B0040iS403..LHD202205

main45273-B5020iS403..RHD202205

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-BZ290iS403..RHD202205

main45220-BZ490iS403..LHD202205

45230BJOINT ASSY, STEERING SHAFT UNIVERSAL

main45230-BZ010iS403202205

45237BOLT, FLEXIBLE ATTACHING(FOR STEERING MAIN SHAFT)

main90041-19747iS403202205

M8,L=30

45251TUBE SET, STEERING COLUMN

main45251-B9260iS403202205

45254SHIELD, STEERING COLUMN HOLE

main45254-BZ210iS403..RHD202205

main45254-BZ300iS403..LHD202205

45255PLATE, STEERING COLUMN HOLE COVER

main45223-BZ010iS403..RHD202205

main45223-BZ040iS403..LHD202205

45275ABOLT, HEXAGON(FOR STEERING COLUMN BRACKET)

main90041-20097iS403202205

45281HOUSING, STEERING COLUMN

main45281-BZ140iS403202205

45286BCOVER, STEERING COLUMN, UPR

main45286-BZ230-B0iS403202205

DK.GRAY,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-BZ420-B0iS403202205

DK.GRAY,TRIM1#

45288PLATE, STEERING COLUMN COVER

main45288-BZ070iS403202205

45897BOLT, STEERING LOCK SET

main45897-B2010iS403202205

5551

8401

86960AMOTOR SET, POWER STEERING

main80960-B9180iS403202205

9004A10217

main9004A-10217

9004A11297

main9004A-11297

9004A11366

main9004A-11366

9004A16074

main9004A-16074

9017908068

main90179-08068

24 parts on this diagram · 2 diagrams in section
