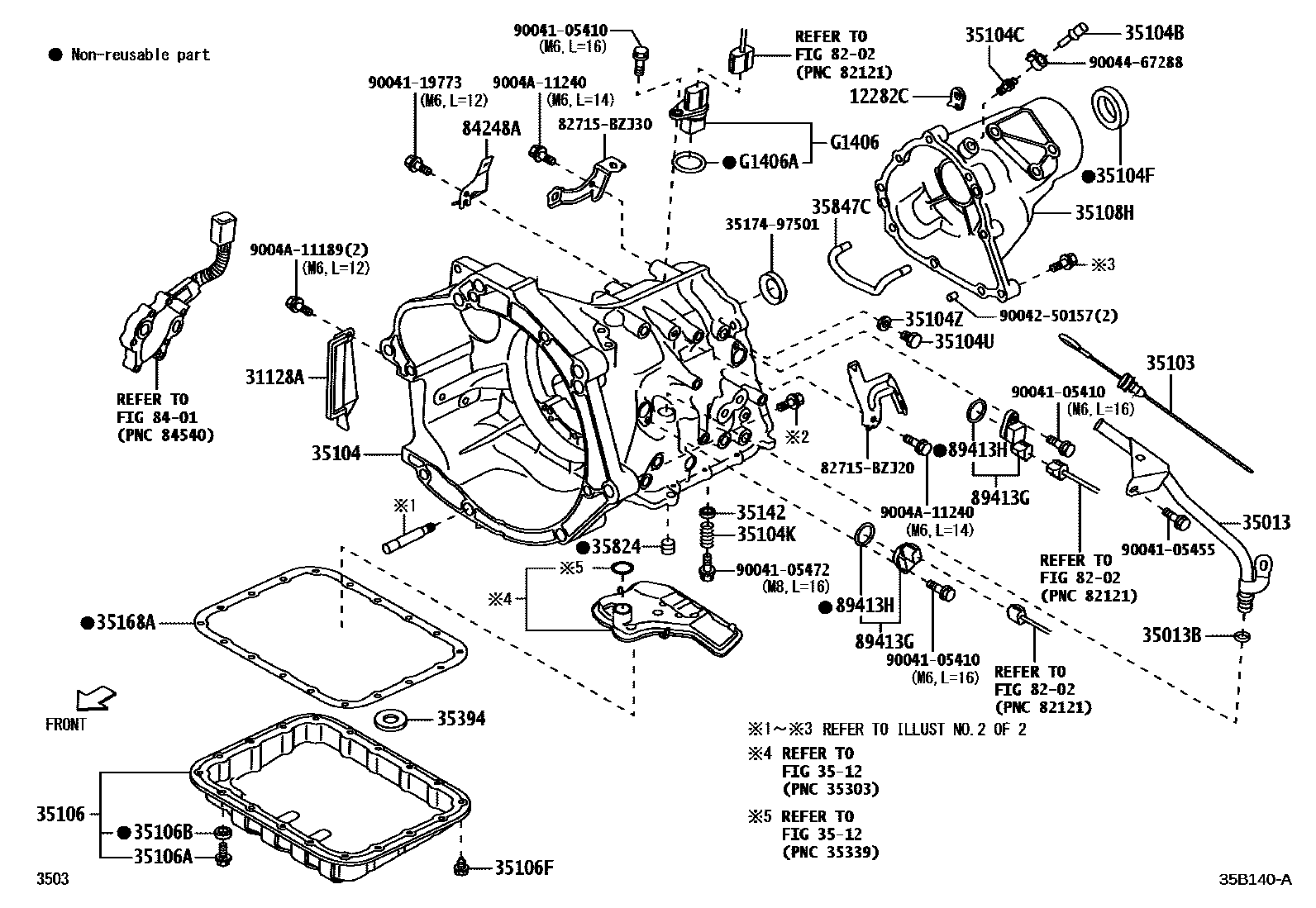

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A4R-C2 0002 1A4R-C2

12282CHANGER, ENGINE, NO.2

main12282-B1020i2NRVE..S403..4FC202205

31128ACOVER, CLUTCH HOUSING UNDER(ATM)

main31123-BZ020iS403..4FC202205

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-B5070iS403..4FC202205

35013BRING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90043-01193iS403..4FC202205

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-B5050iS403..4FC202205

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35141-B5060iS403..4FC202205

35104BPLUG, BREATHER, NO.1 (ATM)

main35120-B0020iS403..4FC202205

35104CPLUG, BREATHER, NO.2 (ATM)

main90049-15054iS403..4FC202205

35104FSEAL, OIL (FOR TRANSAXLE CASE)

main90043-11285iS403..4FC202205

35104KCOMPRESSION SPRING, TRANSAXLE CASE

main90045-01951iS403..4FC202205

35104UBOLT (FOR TRANSAXLE CASE)

main90041-05404×6iS403..4FC202205

M10,L=14

35104ZGASKET (FOR TRANSAXLE CASE)

main90044-30317×6iS403..4FC202205

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35160-B1030iS403..4FC202205

35106APLUG SUB-ASSY, DRAIN (ATM)

main90043-41041iS403..4FC202205

35106BGASKET, DRAIN PLUG (ATM)

main90044-30281iS403..4FC202205

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90041-20203×18iS403..4FC202205

M6,L=14.5

35108HHOUSING SUB-ASSY, EXTENSION

main35108-B5020iS403..4FC202205

3512

35142GASKET, TRANSMISSION CASE(ATM)

main90044-30330iS403..4FC202205

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-B1060iS403..4FC202205

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main33449-B2010iS403..4FC202205

35824SEAL, BRAKE CYLINDER

main35824-97501iS403..4FC202205

35847CTUBE, TRANSMISSION LUBE APPLY

main35847-B5010iS403..4FC202205

8202

8401

84248ACLAMP, SWITCH HARNESS

main84248-B5060iS403..4FC202205

89413GSENSOR, TRANSMISSION REVOLUTION

main89413-97202×2iS403..4FC202205

89413HRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90043-01278×2iS403..4FC202205

G1406CONNECTOR SUB-ASSY, TRANS SOLENOID

mainG1406B1010iS403..4FC202205

G1406ARING, O(FOR TRANS SOLENOID CONNECTOR)

main44618-B1010iS403..4FC202205

3517497501SEPARATOR, TRANSAXLE HOUSING OIL

main35174-97501

82715BZJ20BRACKET,WIRING HARNESS CLAMP

main82715-BZJ20

82715BZJ30BRACKET,WIRING HARNESS CLAMP

main82715-BZJ30

9004105410

main90041-05410

9004105455

main90041-05455

9004105472

main90041-05472

9004119773

main90041-19773

9004250157

main90042-50157

9004467288

main90044-67288

9004A11189

main9004A-11189

9004A11240

main9004A-11240

41 parts on this diagram · 2 diagrams in section
