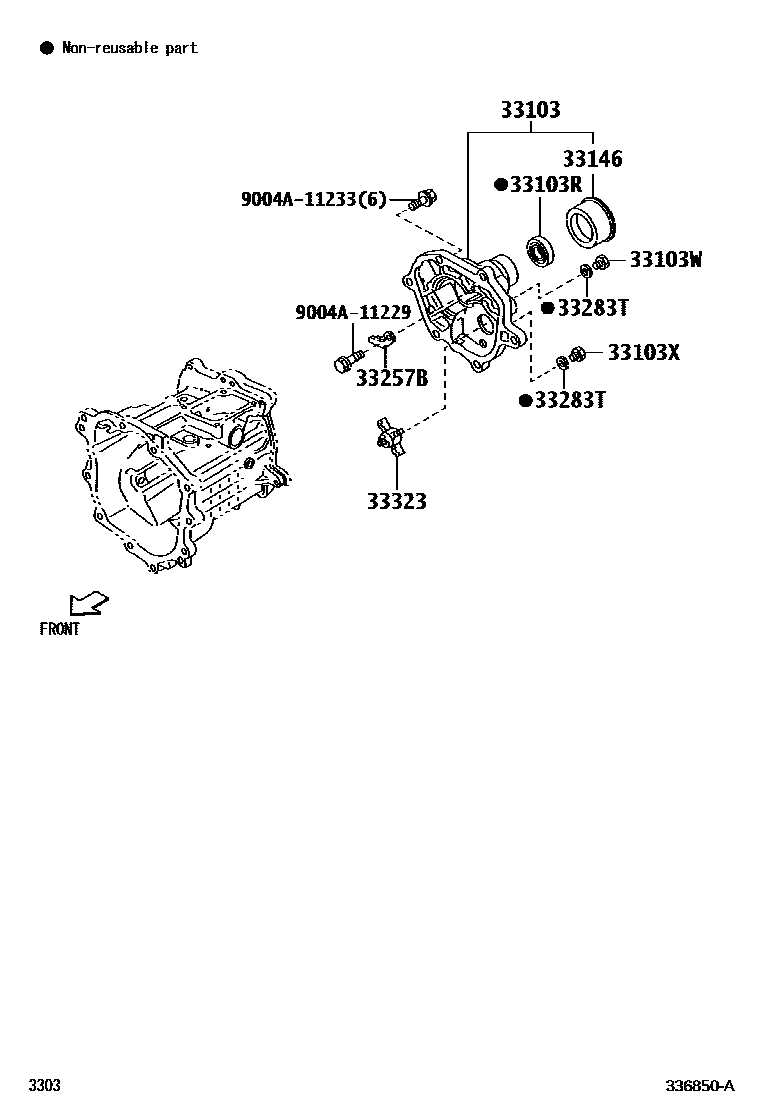

EXTENSION HOUSING (MTM)

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-BZ050iS403..5F202205

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main9004A-31014iS403..5F202205

33103WPLUG(FOR MANUAL TRANSMISSION FILLER)

main9004A-34010iS403..5F202205

sub90341-16012

33103XPLUG(FOR MANUAL TRANSMISSION DRAIN)

main9004A-34010iS403..5F202205

sub90341-16012

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-BZ050iS403..5F202205

33257BPLATE, GEAR OIL

main35345-BZ010iS403..5F202205

sub35257-87501

33283TGASKET (FOR HEAD STRAIGHT SCREW PLUG)

main9004A-43006iS403..5F202205

33323SLINGER, OUTPUT SHAFT OIL

main33467-BZ020iS403..5F202205

9004A11229

main9004A-11229

9004A11233

main9004A-11233

10 parts on this diagram · 1 diagram in section
