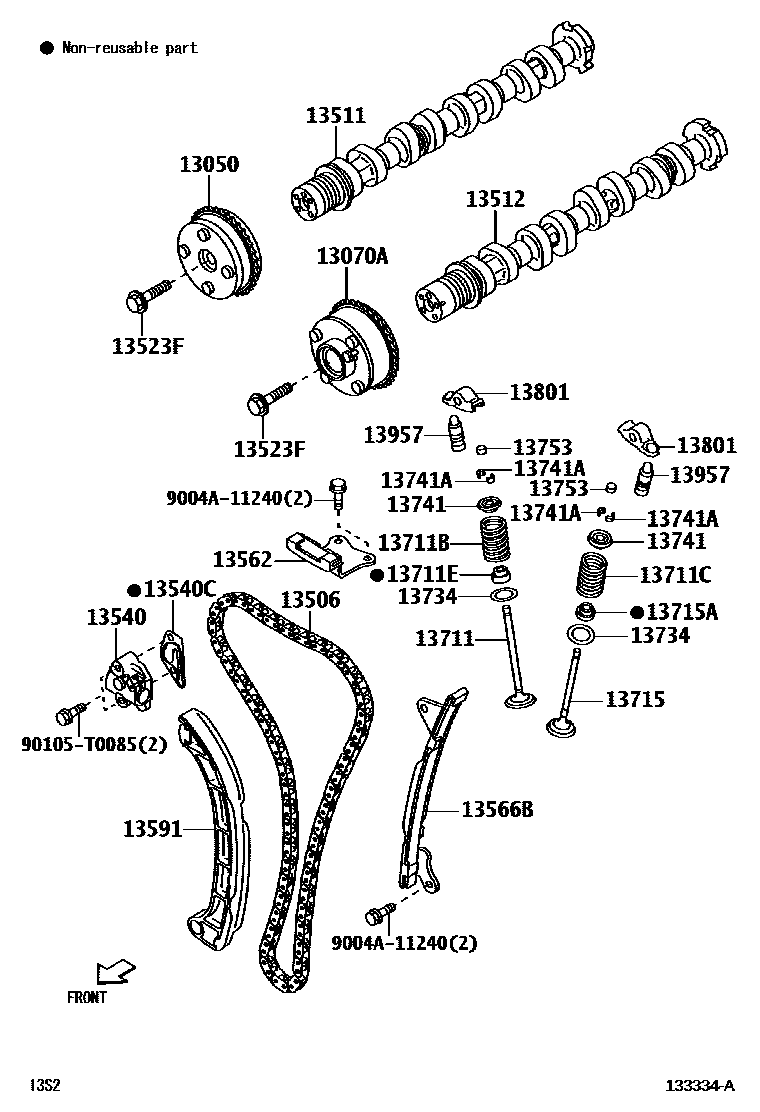

CAMSHAFT & VALVE
13050GEAR ASSY, CAMSHAFT TIMING
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
13506CHAIN SUB-ASSY
13511CAMSHAFT
13512CAMSHAFT, NO.2
13523FBOLT(FOR CAMSHAFT TIMING GEAR)
M10,L=40
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
13562DAMPER, CHAIN VIBRATION, NO.2
13566BGUIDE, TIMING CHAIN
13591ARM, TIMING CHAIN TENSION
13711VALVE, INTAKE
13711BSPRING, COMPRESSION(FOR INNER)
13711CSPRING, COMPRESSION(FOR OUTER)
13711ESEAL, INTAKE VALVE STEM OIL
sub90080-31085
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
sub90080-31084
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13753SHIM, VALVE ADJUSTING
T=2.00
T=2.02
T=2.04
T=2.06
T=2.08
T=2.10
T=2.12
T=2.14
T=2.16
T=2.17
T=2.18
T=2.19
T=2.20
T=2.21
T=2.22
T=2.23
T=2.24
T=2.25
T=2.26
T=2.27
T=2.28
T=2.29
T=2.30
T=2.31
T=2.32
T=2.33
T=2.34
T=2.35
T=2.36
T=2.37
T=2.38
T=2.39
T=2.40
T=2.41
T=2.42
T=2.43
T=2.44
T=2.45
T=2.46
T=2.47
T=2.48
T=2.49
T=2.50
T=2.51
T=2.52
T=2.53
T=2.54
T=2.55
T=2.56
T=2.58
T=2.60
T=2.62
T=2.64
T=2.66
T=2.68
T=2.70
T=2.72
T=2.74
T=2.76
T=2.78
T=2.80
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
13957PIVOT, VALVE ROCKER ARM
9004A11240
main9004A-11240
90105T0085
main90105-T0085
25 parts on this diagram · 1 diagram in section
