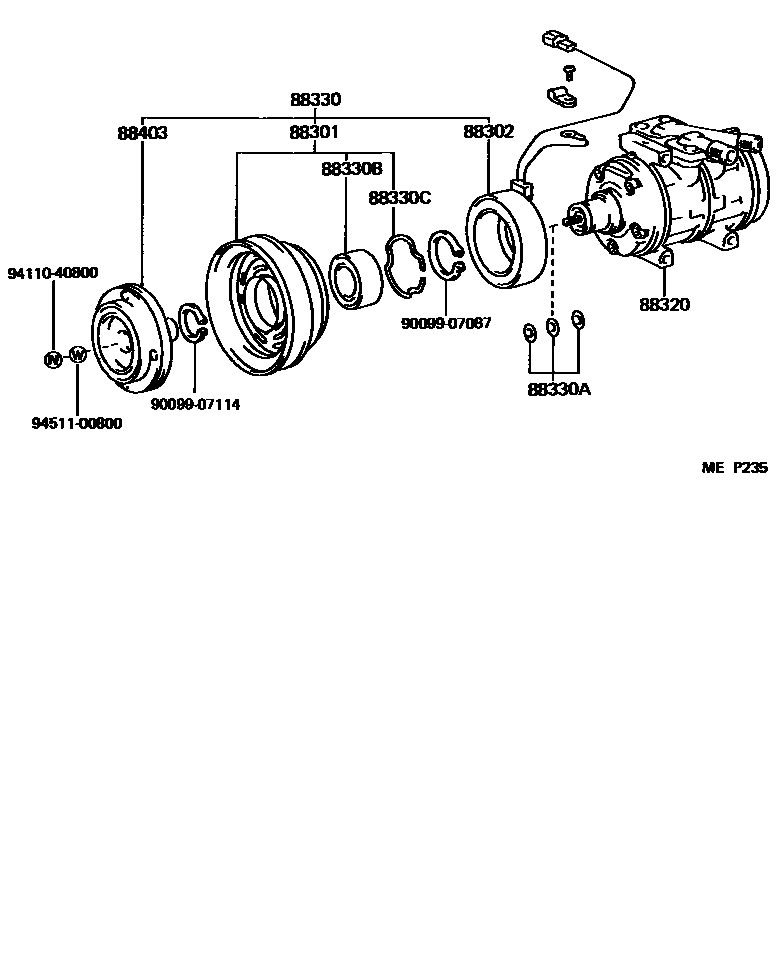

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-20070iCM36..ARL198808-199008

main88412-22030iKM36..06S..ARL;KM30,37,YM30,35;KM36..SRF..(4H,5F)198808-199804

main88412-28020iCM36..5H;CM36..SRF198808-199201

sub88412-22230

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iCM36..ARL198808-199008

main88411-22151iCM36..GEN198808-198902

sub88411-30510

main88411-30510iCM36..5H;CM36..SRF198902-199201

sub88411-35070

main88411-60040iKM36,YM3#..RHD..(4FC,4H,5F)198902-199804

88320COMPRESSOR ASSY, COOLER

main88320-27060iYM30,35198808-199804

main88320-27070iKM36..06S..ARL;KM36..RHD..SRF..(4H,5F)198808-199804

main88320-27090iKM3#..LHD198808-199005

sub88320-27091

main88320-27091iKM3#..LHD199005-199804

main88320-27120iCM36..5H;CM36..SRF198808-199201

main88320-28040iCM36..ARL198808-199201

88330CLUTCH ASSY, MAGNET

main88410-14120iCM36..ARL198808-199008

main88410-22080iKM3#,YM3#..4FC,4H,5F198808-199005

sub88410-60140

main88410-27030iCM36..ARL199008-199201

main88410-28020iCM36..GEN198808-198902

sub88410-28050

main88410-28050iCM36..5H;CM36..SRF198902-199201

main88410-60140iKM36,YM3#..RHD..(4FC,4H,5F)198902-199804

sub88410-36390

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iCM36,KM36..SRF;KM30,37,YM30,35;CM36,KM36..MRF..(4H,5H)198808-199804

88330BBEARING, MAGNET CLUTCH

main90099-10133iKM37;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM30,YM3#..MRF..(4FC,5F)198808-199804

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07094iKM36..06S..ARL;KM30,37,YM30,35;KM36..SRF..(4H,5F)198808-199804

main90099-07118iCM36..ARL198808-199008

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iKM37;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM30,YM3#..MRF..(4FC,5F)198808-199804

main88403-16011iCM36..5H;CM36..SRF198808-199201

9009907087

main90099-07087

9009907114

main90099-07114

9411040800

main94110-40800

9451100800

main94511-00800

12 parts on this diagram · 7 diagrams in section
