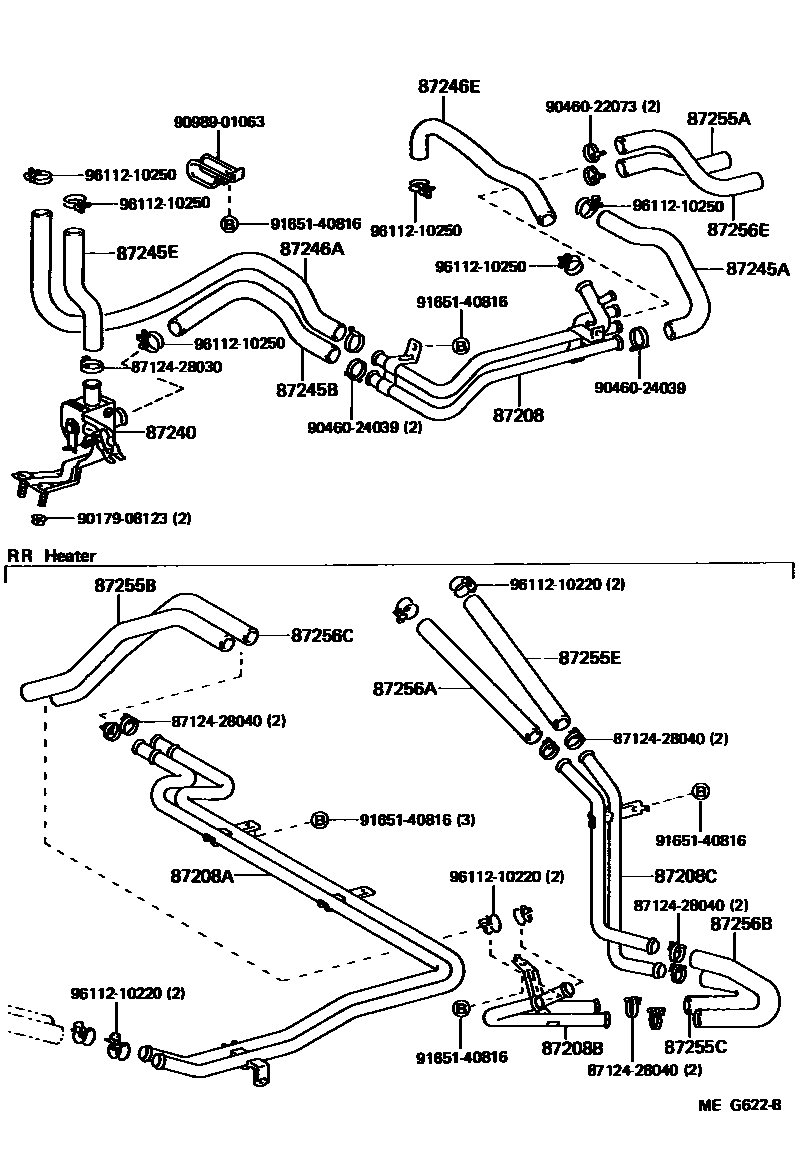

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

87208PIPE SUB-ASSY, HEATER WATER

main87208-95732iYM30198808-199201

main87208-95748iKM36..06S..ARL;KM36..RHD..SRF..(4H,5F)198808-199804

main87208-95749iKM36..LHD198808-199201

main87208-95750iKM37198808-199201

W(RR HEATER)

main87208-95752iKM36..06S..ARL198808-199201

W(RR HEATER)

87208APIPE SUB-ASSY, HEATER WATER, A

main87208-95727iKM37198808-199201

main87208-95738iKM36..06S..ARL198808-199201

87208BPIPE SUB-ASSY, HEATER WATER, B

main87208-95728iKM36..06S..ARL198808-199201

87208CPIPE SUB-ASSY, HEATER WATER, C

main87208-95730iKM36..06S..ARL198808-199201

87240VALVE ASSY, HEATER WATER

main87240-95712iCM36..5H;CM36..SRF;KM37,YM30,35;KM36..SRF..(4H,5F);CM36,KM36..MRF..ARL198808-199804

87245AHOSE, HEATER WATER, INLET A

main87245-95734iKM36..06S..ARL;KM36..RHD..SRF..(4H,5F)198808-199804

main87245-95735iKM37198808-199201

W(RR HEATER)

main87245-95736iCM36..5H;CM36..ARL;CM36..SRF198808-199201

main87245-95737iYM30,35198808-199804

main99556-30500iKM37198808-199201

L=500

87245BHOSE, HEATER WATER, INLET B

main99556-30240iCM36..LHD198809-199201

*H,L=240

sub99556-30300

main99556-30300iCM36,YM3#198808-199804

L=300

main99556-30380iKM37;KM36..06S..ARL;KM36..SRF..(4H,5F)198808-199804

*H,L=380

sub99556-30500

87245EHOSE, HEATER WATER, INLET E

main99556-30210iCM36..5H;CM36..SRF;KM37,YM30,35;KM36..SRF..(4H,5F);CM36,KM36..MRF..ARL198808-199804

*H,L=210

sub99556-30300

87246AHOSE, HEATER WATER, OUTLET A

main99556-30500iKM37;KM36..06S..ARL;KM36..SRF..(4H,5F)198808-199201

L=500

main99556-30700iYM30,35;CM36..5H;CM36..ARL;CM36..SRF198808-199201

L=700

sub99556-31000

87246EHOSE, HEATER WATER, OUTLET E

main87245-95732iKM36..06S..ARL;KM36..RHD..SRF..(4H,5F)198808-199804

main87245-95733iKM36,37..LHD198808-199201

main87245-95739iCM36..5H;CM36..ARL;CM36..SRF198808-199201

main87245-95740iYM30,35198808-199804

87255AHOSE, REAR HEATER WATER INLET, A(FROM ENGINE)

main87245-95738iYM30198808-199201

main87245-95748iKM37198808-199201

sub87245-95J35

main87245-95754iKM36..06S..ARL198808-199201

sub87245-95J35

87255BHOSE, REAR HEATER WATER INLET, B

main87245-95742iKM36..06S..ARL198808-199201

87255CHOSE, REAR HEATER WATER INLET, C

main87245-95749iKM36..06S..ARL198808-199201

87255EHOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)

main87245-95745iYM30198808-199201

sub87245-95J36

main87245-95746iKM37198808-199201

sub87245-95J36

main99556-20200iKM36..06S..ARL198808-199201

L=200

87256AHOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)

main99556-20200iKM36..06S..ARL198808-199201

L=200

main99556-20700iKM37,YM30198808-199201

L=700

87256BHOSE, REAR HEATER WATER OUTLET, B

main87245-95750iKM36..06S..ARL198808-199201

87256CHOSE, REAR HEATER WATER OUTLET, C

main87245-95743iKM36..06S..ARL198808-199201

main87245-95751iYM30198808-199201

87256EHOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)

main87245-95753iYM30198808-199201

main99556-20230iKM36..06S..ARL198808-199201

*H,L=300

sub99556-20300

main99556-20300iKM37198808-199201

L=300

8712428030CLAMP, HEATER

main87124-28030

8712428040CLAMP, HEATER

main87124-28040

9017908123

main90179-08123

9046022073

main90460-22073

9046024039

main90460-24039

9098901063

main90989-01063

9165140816

main91651-40816

9611210220

main96112-10220

9611210250

main96112-10250

27 parts on this diagram · 4 diagrams in section
