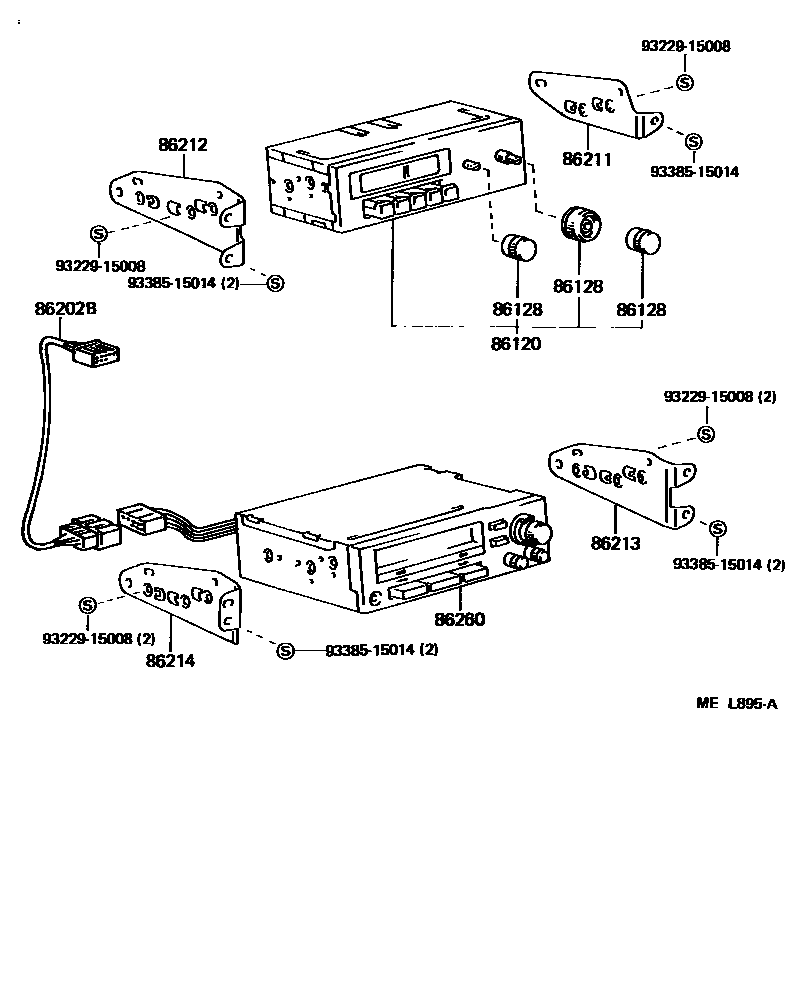

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86120RECEIVER ASSY, RADIO

main86120-16350iCM36..5H;CM36..SRF;KM37,YM35..GEN;KM36..SRF..(4H,5F)..GEN198808-199804

FUJITSU TEN,AM 5-PB

sub86120-10290

main86120-16430iYM35;KM36..06S..ARL198808-199804

FUJITSU TEN,AM/FM MPX 5-PB/2-AMP

main86120-16460iCM36..5H;CM36..SRF;KM37,YM35..GEN;KM36..SRF..(4H,5F)..GEN198808-199804

MATSUSHITA,ID=5108,MW/SW 5-PB

main86120-16470iCM36..5H;CM36..RHD..GEN;KM3#,YM35..(4H,5F)..GEN198808-199804

FUJITSU TEN,AM/FM 5-PB

main86120-22780iYM30198808-199201

AM/FM MPX 6-PB/4-AMP

86128KNOB, RADIO RECEIVER

main86128-16040iCM36..5H;KM37,YM35;CM36,KM36..SRF;CM36,KM36..MRF..ARL198808-199804

PWR/VOL,TUNE

main86128-16060iCM36..5H;KM37,YM35;CM36,KM36..SRF;CM36,KM36..MRF..ARL198808-199804

TONE

main86128-22790iYM30198808-199201

VOL

main86128-22810iYM30198808-199201

TUNING

86202BWIRE, TAPE PLAYER

main86203-95715iCM36..5H;KM37,YM35;CM36,KM36..SRF;CM36,KM36..MRF..ARL198808-199804

main86203-95716iYM30198808-199201

86211BRACKET, RADIO, NO.1

main86211-95714iCM36..RHD..GEN;CM36,KM37..4H,5H;KM36..(4H,5F)..GEN198808-199804

main86215-95700iCM36,KM36,37,YM31,35..GEN198808-199804

W/O(RADIO)

86212BRACKET, RADIO, NO.2

main86212-95704iCM36,KM36,37,YM31,35..GEN198808-199804

W/O(RADIO)

main86212-95706iCM36..RHD..GEN;CM36,KM37..4H,5H;KM36..(4H,5F)..GEN198808-199804

86213BRACKET, RADIO, NO.3

main86211-95712iCM36,KM36,YM3#..RHD198808-199804

main86211-95713iCM36,KM3#..LHD198808-199804

86214BRACKET, RADIO, NO.4

main86212-95704iCM36,KM3#..LHD198808-199804

main86212-95705iCM36,KM36,YM3#..RHD198808-199804

86260TAPE PLAYER ASSY

main86260-16140iCM36..5H;KM37,YM35;CM36,KM36..SRF;CM36,KM36..MRF..ARL198808-199804

main86260-22160iYM30198808-199201

9322915008

main93229-15008

9338515014

main93385-15014

10 parts on this diagram · 2 diagrams in section
