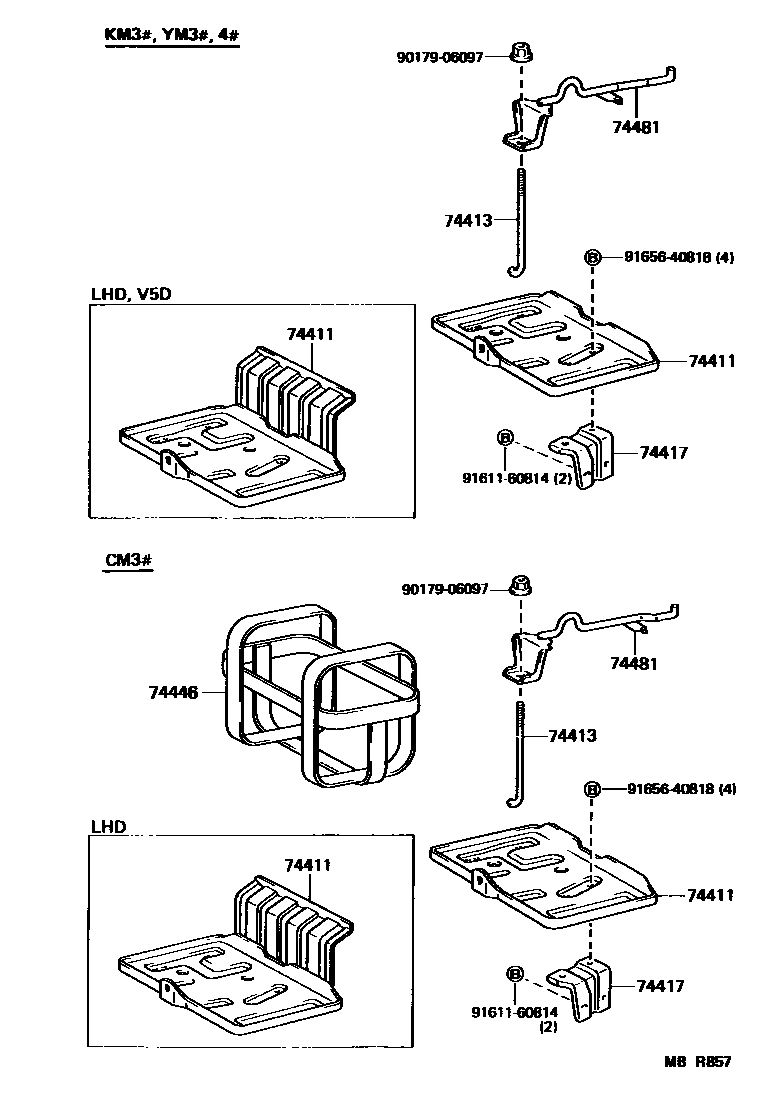

BATTERY CARRIER

74411CARRIER, BATTERY

main74410-95709iKM36..V5D;CM36,KM3#..LHD..V4D198808-199804

main74411-95710iKM36..MRF;CM36,YM3#..RHD;KM36..RHD..V4D..SRF..4H198910-199201

74413BOLT, BATTERY CLAMP

main74451-95J00iCM36,KM3#,YM3#198808-198910

74417BRACKET, BATTERY CARRIER

main74417-95704iCM36,KM3#,YM3#198808-198910

74446BAND, BATTERY

main74446-95702iCM36198808-199804

74481CLAMP, BATTERY HOLD DOWN

main74404-95703iKM3#,YM3#198808-198910

main74404-95704iCM36198808-199804

9017906097

main90179-06097

9161160814

main91611-60814

9165640818

main91656-40818

8 parts on this diagram · 1 diagram in section
