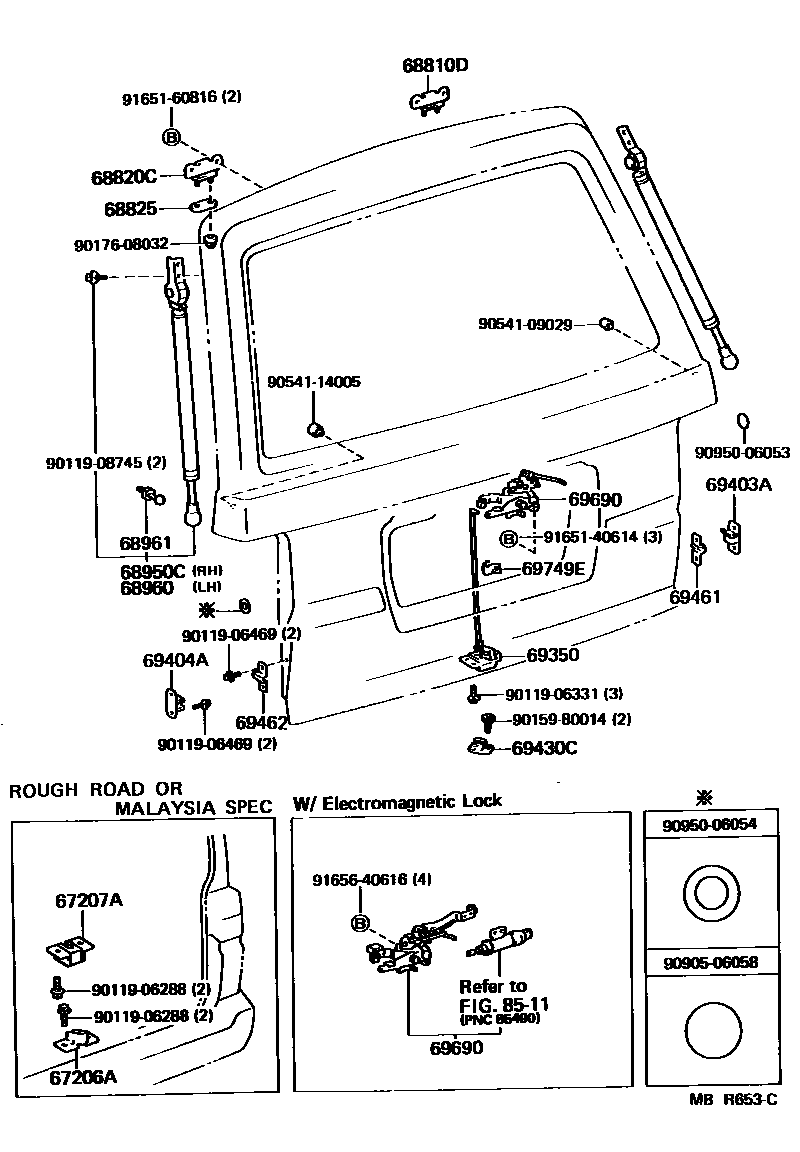

BACK DOOR LOCK & HINGE
67206ABRACKET SUB-ASSY, BACK DOOR STOPPER
main67206-95J00iKM36..MRF;KM36..LHD;KM30,37,YM30;CM36,YM35..02S;CM36..(4F,5H)..05S;KM36..RHD..V4D..SRF..4H199107-199804
CKD SPEC
67207ASTOPPER SUB-ASSY, BACK DOOR, RH
main67207-95J01iKM36..MRF;KM36..LHD;KM30,37,YM30;CM36,YM35..02S;CM36..(4F,5H)..05S;KM36..RHD..V4D..SRF..4H199107-199804
CKD SPEC
68810DHINGE ASSY, BACK DOOR, RH
68820CHINGE ASSY, BACK DOOR, LH
68825PLATE, BACK DOOR HINGE
68950CSTAY ASSY, BACK DOOR, RH
W(REAR WIPER)
MALAYSIA SPEC
68960STAY ASSY, BACK DOOR, LH
W(REAR WIPER)
MALAYSIA SPEC
68961BOLT, BACK DOOR STAY
69350LOCK ASSY, BACK DOOR
69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH
69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH
69430CSTRIKER ASSY, BACK DOOR LOCK
69461STOPPER, BACK DOOR SIDE MALE, RH
69462STOPPER, BACK DOOR SIDE MALE, LH
69690CONTROL ASSY, BACK DOOR REMOTE
W(ELECTROMAGNETIC LOCK)
MALAYSIA SPEC & W(ELECTROMAGNETIC LOCK) & W/O(BACK DOOR INSIDE HANDLE)
sub69690-95702
W(ELECTROMAGNETIC LOCK)
sub69690-95702
MALAYSIA SPEC & W/O(BACK DOOR INSIDE HANDLE)
69749ECLAMP, BACK DOOR LOCK LINK
8511
9011906288
main90119-06288
9011906331
main90119-06331
9011906469
main90119-06469
9011908745
main90119-08745
9015980014
main90159-80014
9017608032
main90176-08032
9054109029
main90541-09029
9054114005
main90541-14005
9090506058
main90905-06058
9095006053
main90950-06053
9095006054
main90950-06054
9165140614
main91651-40614
9165160816
main91651-60816
9165640616
main91656-40616
31 parts on this diagram · 1 diagram in section
