FRONT DOOR LOCK & HANDLE

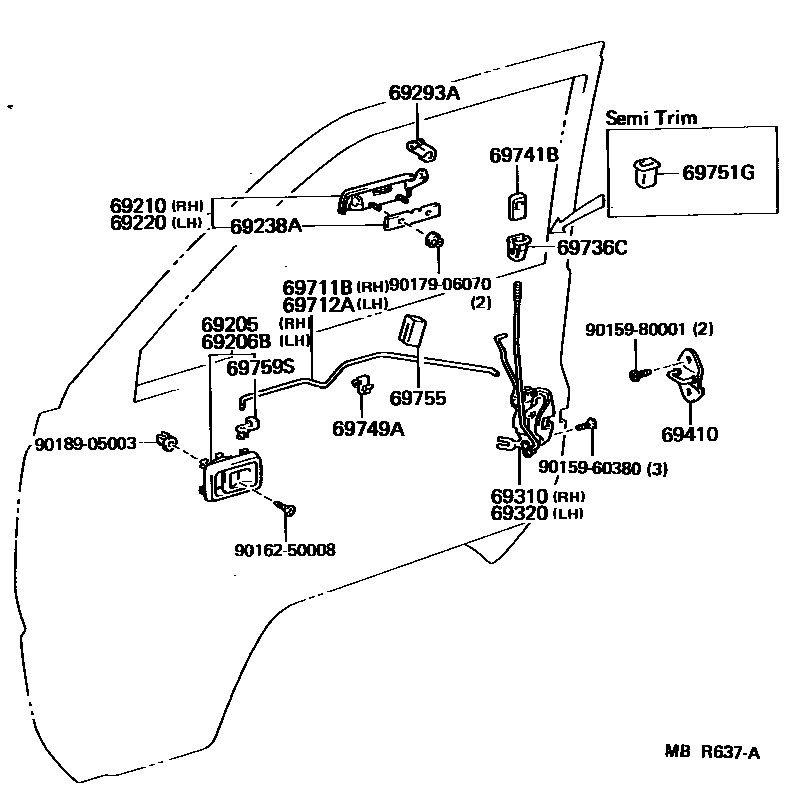

Parts diagram
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-95703-13i198808-199804
GRAY,TRIM1#
main69205-95703-16i198808-199201
SABLE,TRIM4#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-95703-13i198808-199804
GRAY,TRIM1#
main69206-95703-16i198808-199201
SABLE,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-95701i198808-198809
main69210-95702i198809-199804
NO PAINT REQ.
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69220-95701i198808-198809
main69220-95702i198809-199804
BLACK
69238APAD, DOOR OUTSIDE HANDLE
main69238-95J00×2i198808-199804
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
main69293-12030i198808-199804
RH
main69293-12040i198808-199804
LH
69310LOCK ASSY, FRONT DOOR, RH
main69310-27010i199304-199804
main69310-95707i198808-199304
69320LOCK ASSY, FRONT DOOR, LH
main69320-95704i199304-199804
main69320-95706i198808-199304
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-89103×2i198808-199804
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
main69711-95700i198808-199804
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
main69712-95700i198808-199804
69736CGUIDE, FRONT DOOR LOCKING LINK
main69736-12030×2i198808-199108
69741BKNOB, FRONT DOOR LOCK CONTROL
main69741-90K00-03×2i198808-199804
SHADOW GRAY,TRIM1#
sub69741-89102
sub69741-12040
sub69741-89104
main69741-90K00-36×2i198808-199201
SABLE,TRIM4#
sub69741-89102
sub69741-12040
sub69741-89104
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
main69749-30020×4i198808-199804
69751GHOLDER, FRONT DOOR LOCK CONTROL KNOB
main69751-89101-23×2i198808-199804
GRAY,TRIM1#
69755SILENCER, FRONT DOOR LOCK LINK
main69759-95500×2i198808-199804
69759SSNAP, FRONT DOOR INSIDE HANDLE
main69759-14050i198808-199804
PINK
main69759-24070i198808-199804
YELLOW
9015960380
main90159-60380
9015980001
main90159-80001
9016250008
main90162-50008
9017906070
main90179-06070
9018905003
main90189-05003

22 parts on this diagram · 1 diagram in section
