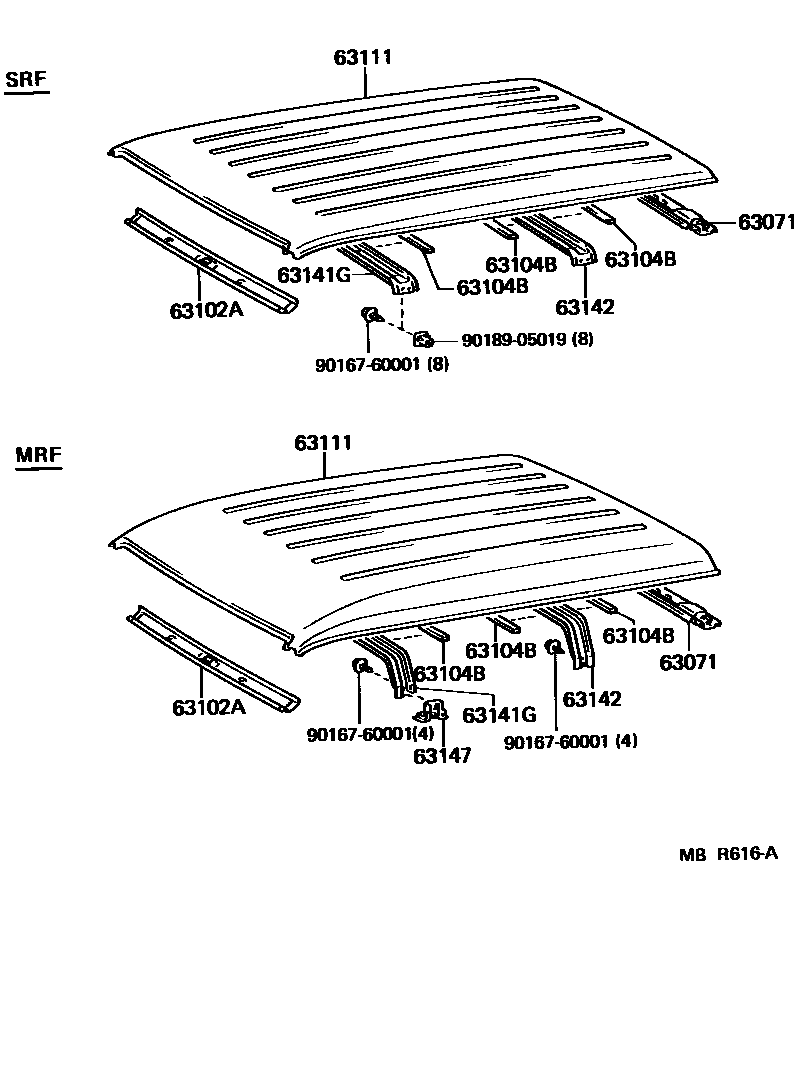

ROOF PANEL & BACK PANEL

63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

main63071-95700iCM36,KM36,37,YM35198808-199804

sub63071-95703

main63071-95701iKM30,YM30,31198808-199804

sub63071-95704

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-95706iCM36,KM36,37,YM35198808-199804

main63102-95707iKM30,YM30,31198808-199804

63104BCUSHION, ROOF TO ROOF REINFORCEMENT

main63357-95701iCM36,KM36,37,YM35..VSG198808-199201

63111PANEL, ROOF

main63111-95710iCM36,KM36,37..SRF198808-199804

main63111-95712iCM36,KM3#,YM3#..MRF198808-199804

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63103-95706iKM30,YM30,31198808-199804

main63141-95701iCM36..SRF;KM36..SRF..(4H,5F)..GEN198808-199804

W(FRONT AIR CONDITIONER)

sub63103-95710

main63141-95708iCM36..5H;YM35..GEN198808-199804

W(FRONT AIR CONDITIONER)

main63141-95710iCM36,KM36,37,YM35..MRF198808-199804

main63142-95703iCM36,KM36,37..SRF198808-199804

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-95703iCM36,KM36,37..SRF198808-199804

main63142-95705iCM36,KM3#,YM3#..MRF198808-199804

63147BRACKET, ROOF PANEL REINFORCEMENT

main63147-95703iCM36,KM30,37..LHD..MRF198808-199804

RH

main63148-95701iCM36,KM36,YM3#..RHD..MRF198808-199804

LH

9016760001

main90167-60001

9018905019

main90189-05019

9 parts on this diagram · 1 diagram in section
