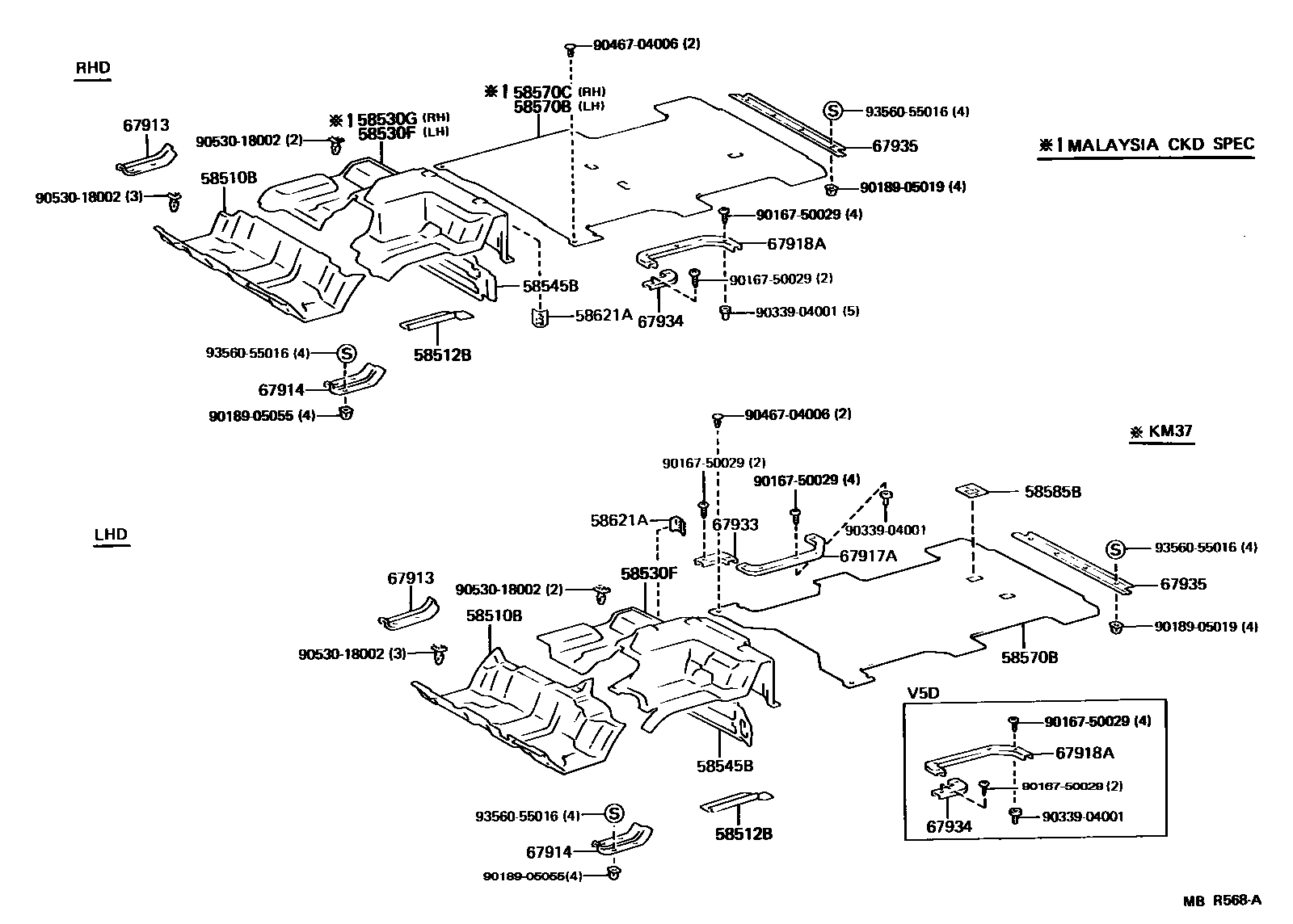

FLOOR MAT & SILENCER PAD

0001 1 0002 1 0003 1

58510BMAT, FRONT FLOOR, FRONT

main58510-27010-03iYM35..GEN;KM36..SRF..05S199108-199804

GRAY,TRIM1#

sub58510-27010

main58510-27010-03iYM35..GEN199107-199804

MALAYSIA CKD SPEC,GRAY,TRIM1#

sub58510-27010

main58510-95700-03iCM36,KM36,YM35..RHD..(02S,05S)198808-199804

GRAY,TRIM1#

sub58510-95700

main58510-95706-03iKM36..RHD..4H198808-199201

GRAY,TRIM1#

sub58510-95706

main58510-95708-03iCM36..LHD..4F198808-199201

GRAY,TRIM1#

sub58510-95708

main58510-95711-03iKM36,37..LHD198808-199201

GRAY,TRIM1#

main58510-95713-03iCM36..5H198808-199201

GRAY,TRIM1#

58512BMAT, FLOOR, FRONT LH

main58512-95703-03iCM36,KM36,37,YM3#198808-199804

GRAY,TRIM1#

sub58512-95703

main58512-95703-16iYM30198808-199201

SABLE,TRIM4#

sub58512-95703

58530FMAT ASSY, HEADER

main58530-27020-03iKM36..MRF..GEN199108-199804

MALAYSIA CKD SPEC,GRAY,TRIM1#

main58530-27020-03iKM36..SRF..05S199108-199804

GRAY,TRIM1#

main58530-27030-B0iCM36..MRF..5F..GEN199109-199804

MALAYSIA CKD SPEC,GRAY,TRIM1#

main58530-27030-B0iCM36..MRF..5F..GEN199109-199804

GRAY,TRIM1#

main58530-95719-03iCM36..5H198808-199201

GRAY,TRIM1#

main58530-95720-03iCM36..LHD..4F198808-199201

GRAY,TRIM1#

main58530-95721-03iKM36,37..LHD198808-199201

GRAY,TRIM1#

main58530-95742-03iKM36..ARL198808-199201

GRAY,TRIM1#

main58530-95757-03iCM36,YM35..ARL198808-199201

GRAY,TRIM1#

main58530-95773-03iKM36..05S198808-199804

GRAY,TRIM1#

sub58530-95773

main58530-95774-03iCM36..RHD..SRF198808-199201

GRAY,TRIM1#

main58530-95G35-03iKM36..RHD..4H..GEN198808-199008

GRAY,TRIM1#

main58530-95G44-03iYM35..GEN198905-199804

GRAY,TRIM1#

58530GCARPET ASSY, HEADER

main58530-27010-B0iYM31199108-199205

GRAY,TRIM1#

main58530-95736-03iKM30199001-199804

GRAY,TRIM1#

main58530-95768-03iYM30198808-199201

GRAY,TRIM1#

sub58530-95782

main58530-95768-16iYM30198808-199201

SABLE,TRIM4#

sub58530-95782

58545BSILENCER, HEADER PANEL

main58545-95714iKM36..RHD198808-199804

main58545-95716iKM36..LHD;CM36,KM30,37,YM3#198808-199804

58570BMAT ASSY, REAR FLOOR

main58570-27020-03iYM35..GEN199107-199110

MALAYSIA CKD SPEC,GRAY,TRIM1#

main58570-27030-B0iYM35199203-199212

MALAYSIA CKD SPEC,GRAY,TRIM1#

main58570-27030-B0iYM35199203-199212

GRAY,TRIM1#

main58570-27050-B0iKM36199212-199804

GRAY,TRIM1#

main58570-27060-B0iCM36,YM35199212-199804

GRAY,TRIM1#

main58570-95700-03iYM35..GEN199110-199203

MALAYSIA CKD SPEC,GRAY,TRIM1#

main58570-95700-03iCM36..RHD..05S198808-199203

GRAY,TRIM1#

main58570-95704-03iCM36,KM36..LHD..VSG198808-199201

GRAY,TRIM1#

main58570-95705-03iKM36..RHD..VSG..GEN198808-199212

GRAY,TRIM1#

main58570-95710-03iKM37198808-199201

W(REAR HEATER-PUT FLOOR TYPE),GRAY,TRIM1#

main58570-95715-03iCM36..RHD..02S..GEN198808-199201

W/O(REAR NO.1 SEAT),GRAY,TRIM1#

main58570-95715-03iCM36..RHD..02S..GEN198808-199201

GRAY,TRIM1#

main58570-95717-03iKM36..LHD..03S198808-199201

GRAY,TRIM1#

sub58570-95754

main58570-95719-03iKM37198808-199201

GRAY,TRIM1#

main58570-95722-03iCM36..LHD..02S198808-199201

W/O(REAR NO.1 SEAT),GRAY,TRIM1#

sub58570-95753

main58570-95722-03iCM36..LHD..02S198808-199201

GRAY,TRIM1#

sub58570-95753

main58570-95728-03iKM36..V4D..03S..GEN198808-199201

GRAY,TRIM1#

main58570-95728-03iKM36..RHD..VSG..SRF..(4H,5F)198808-199804

W/O(REAR NO.1 SEAT),GRAY,TRIM1#

main58570-95730-03iKM36..RHD..V5D198808-199201

GRAY,TRIM1#

main58570-95745-03iCM36,YM35..ARL198808-199201

GRAY,TRIM1#

main58570-95746-03iKM36..06S..ARL198808-199201

GRAY,TRIM1#

main58570-95747-03iKM36..03S..ARL198808-199201

GRAY,TRIM1#

main58570-95G16-03iKM37..MRF198901-199201

W(REAR NO.1 SEAT),GRAY,TRIM1#

main58570-95G17-03iYM35..GEN198905-199212

GRAY,TRIM1#

main58570-95G18-03iYM35..GEN198905-199304

W/O(REAR NO.1 SEAT),GRAY,TRIM1#

58570CCARPET ASSY, REAR FLOOR

main58570-27010-B0iYM31199108-199205

GRAY,TRIM1#

main58570-95731-03iYM30198808-199201

W(REAR HEATER-PUT FLOOR TYPE),GRAY,TRIM1#

main58570-95731-16iYM30198808-199201

W(REAR HEATER-PUT FLOOR TYPE),SABLE,TRIM4#

main58570-95737-03iYM30198808-199201

GRAY,TRIM1#

main58570-95737-16iYM30198808-199201

SABLE,TRIM4#

58585BCOVER, REAR FLOOR SEAT LOCK

main58585-95705-03iKM37198808-199201

GRAY,TRIM1#

main58585-95706-03iYM30198808-198911

GRAY,TRIM1#

main58585-95706-16iYM30198808-198911

SABLE,TRIM4#

main58585-95708-03iKM30,YM30198911-199804

GRAY,TRIM1#

main58585-95708-06iYM30198911-199201

SABLE,TRIM4#

58621APLATE, MAT SET, NO.1 LH

main58621-95706iKM36..V5D198808-199804

67913PLATE, FRONT DOOR SCUFF, RH

main67913-95702-13iCM36,KM3#,YM3#198808-199804

GRAY,TRIM1#

sub67913-27010

main67913-95702-16iYM30198808-199201

SABLE,TRIM4#

sub67913-27010

67914PLATE, FRONT DOOR SCUFF, LH

main67914-95702-13iCM36,KM3#,YM3#198808-199804

GRAY,TRIM1#

sub67914-27010

main67914-95702-16iYM30198808-199201

SABLE,TRIM4#

sub67914-27010

67917APLATE, REAR DOOR SCUFF, RH

main67917-95705iKM36..V5D;CM36,KM36,37..LHD..V4D198808-199201

main67917-95706iKM37..MRF198901-199201

W(REAR NO.1 SEAT)

main67917-95706iKM30199001-199804

67918APLATE, REAR DOOR SCUFF, LH

main67918-95700iKM36..03S,05S;KM36..RHD..06S;CM36,YM31,35..RHD198808-199804

main67918-95705-03iYM30198808-199201

GRAY,TRIM1#

main67918-95705-16iYM30198808-199201

SABLE,TRIM4#

67933PLATE, QUARTER SCUFF, INNER RH

main67933-95700-03iKM36..V5D;CM36,KM3#..LHD..V4D198808-199804

GRAY,TRIM1#

67934PLATE, QUARTER SCUFF, INSIDE LH

main67934-95700-03iKM36..03S,05S;KM36..RHD..06S;CM36,YM31,35..RHD198808-199804

GRAY,TRIM1#

67935PLATE, BACK DOOR SCUFF

main67935-95703iCM36,KM36,37,YM31,35198808-199804

main67935-95705iKM30,YM30198808-199804

9016750029

main90167-50029

9018905019

main90189-05019

9018905055

main90189-05055

9033904001

main90339-04001

9046704006

main90467-04006

9053018002

main90530-18002

9356055016

main93560-55016

23 parts on this diagram · 3 diagrams in section
