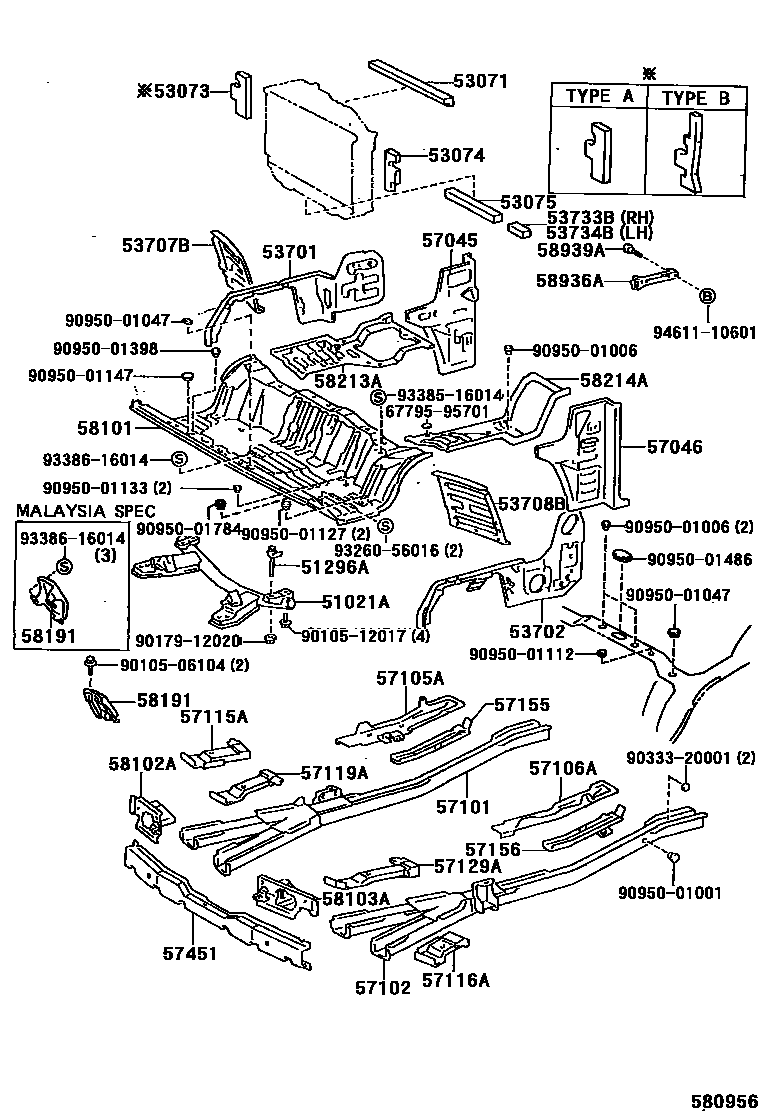

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1

51021AMEMBER SUB-ASSY, ENGINE FRONT SUPPORT

main51021-95706iKM36..RHD198808-199804

main51021-95707iYM3#198808-199804

main51021-95708iCM36198808-199804

main51021-95711iKM3#..LHD198808-199804

51296ABOLT, ENGINE FRONT SUPPORT MEMBER

main51296-95701×4iCM36,KM3#,YM3#198808-199804

53071SHUTTER SUB-ASSY, HOT AIR, UPPER

main53735-95700iCM36,KM37,YM3#;KM36..06S..ARL;KM36..SRF..(4H,5F)198808-199804

53073SHUTTER SUB-ASSY, HOT AIR SIDE, RH

main53727-95707iCM36,KM36,YM30,35..ARL198808-199804

TYPE A

main53727-95708iYM30,35;CM36..5H;CM36..ARL;CM36..SRF198808-199804

53074SHUTTER SUB-ASSY, HOT AIR SIDE, LH

main53728-95704iCM36..5H;CM36..SRF;KM37,YM30,35;KM36..SRF..(4H,5F);CM36,KM36..MRF..ARL198808-199804

53075SHUTTER SUB-ASSY, HOT AIR, LOWER

main53737-95701iCM36,KM37,YM3#;KM36..06S..ARL;KM36..SRF..(4H,5F)198808-199804

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-95711iYM30,35198808-199201

main53701-95712iCM36..5H;CM36..ARL;CM36..SRF198808-199201

main53701-95713iKM37;KM36..SRF;KM36..06S..ARL198808-199201

main53701-95720iCM36..MRF..5F..GEN199109-199201

main53701-95721iKM36,37..4H199108-199201

MALAYSIA SPEC OR ROUGH ROAD PACKAGE

main53701-95722iYM30,35..ARL199107-199201

MALAYSIA SPEC OR ROUGH ROAD PACKAGE

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-95713iKM37;KM36..SRF;KM36..06S..ARL198808-199201

main53702-95714iCM36..5H;CM36..ARL;CM36..SRF198808-199201

main53702-95715iYM30,35198808-199201

main53702-95722iKM36,37..4H199108-199201

MALAYSIA SPEC OR ROUGH ROAD PACKAGE

main53702-95723iCM36..5H;CM36..ARL;CM36..SRF198811-199201

ROUGH ROAD PACKAGE

main53702-95724iYM30,35..ARL199107-199201

MALAYSIA SPEC OR ROUGH ROAD PACKAGE

53707BAPRON SUB-ASSY, FENDER SIDE, RH

main53707-95701iCM36,KM3#,YM3#198808-199804

53708BAPRON SUB-ASSY, FENDER SIDE, LH

main53708-95702iKM36,37..GEN198808-199804

sub90333-25001

main53708-95704iCM36,YM3#;KM36..ARL198808-199804

53733BSHUTTER, HOT AIR SIDE, A RH

main53733-95701iCM36,KM37,YM3#;KM36..06S..ARL;KM36..SRF..(4H,5F)198808-199804

53734BSHUTTER, HOT AIR SIDE, A LH

main53733-95701iCM36,KM37,YM3#;KM36..06S..ARL;KM36..SRF..(4H,5F)198808-199804

57045PLATE SUB-ASSY, FLOOR SIDE RAIL, RH

main57045-95705iCM36..5F..GEN198808-198910

MALAYSIA SPEC OR ROUGH ROAD PACKAGE

main57045-95707iKM36..V5D;CM36,KM3#..LHD..V4D198808-199804

main57045-95715iCM36..RHD..GEN;KM36..RHD..V4D..(4H,5F)..GEN198808-198811

ROUGH ROAD PACKAGE

57046PLATE SUB-ASSY, FLOOR SIDE RAIL, LH

main57046-95705iCM36,KM36,37..LHD..V4D198808-199201

main57046-95716iCM36,KM36,YM3#..RHD198808-199804

main57046-95717iKM36..LHD..03S198808-199201

main57046-95718iCM36,KM36,37..LHD..V4D198808-199201

ROUGH ROAD PACKAGE

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-95722iCM36,KM36,YM31,35..RHD..V4D..GEN198908-199804

sub57101-95728

main57101-95723iKM36..RHD..V5D198808-199201

sub57101-95728

sub90333-25001

sub90333-40001

main57101-95729iCM36,KM3#..LHD198808-199804

sub57101-95727

main57101-95731iCM36,KM36,YM30,35..ARL198908-199201

sub57101-27902

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-95716iCM36,KM36,YM31,35..RHD..GEN198908-199804

sub57102-95721

main57102-95722iCM36,KM3#..LHD198808-199804

sub57102-95720

main57102-95724iYM35..ARL198808-199201

main57102-95725iCM36,KM36,YM30..ARL198908-199201

sub90333-20001

57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-95704iCM36,KM3#,YM3#198808-199804

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57148-95702iCM36,KM3#,YM3#198808-199804

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-95703iCM36,KM3#,YM3#198808-199804

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-95703iCM36,KM3#,YM3#198808-199804

57119APLATE, FRONT SIDE MEMBER, FRONT RH

main57119-95702iCM36,KM3#,YM3#198808-199804

57129APLATE, FRONT SIDE MEMBER, FRONT LH

main57129-95702iCM36,KM3#,YM3#198808-199804

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-95701iCM36,KM3#,YM3#198808-199804

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57044-95702iCM36,KM3#,YM3#198808-199804

sub57044-95703

57451MEMBER, FRONT FLOOR CROSS

main57408-95705iCM36,KM3#,YM3#198808-199804

58101PAN SUB-ASSY, FRONT FLOOR

main58101-95744iYM30,35;CM36..ARL;CM36,KM36..RHD..SRF..(02S,05S)199108-199804

sub58101-27250

main58101-95745iYM35..GEN;KM36..SRF..05S199108-199804

MALAYSIA SPEC

sub58101-27260

main58101-95746iKM36..RHD..4H198808-199201

sub58101-27270

main58101-95748iCM36,KM30..LHD..(4F,5F)198808-199604

sub58101-27280

main58101-95750iCM36..5H198808-199201

sub58101-27290

main58101-95751iKM36,37..LHD198808-199201

sub58101-27300

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-95700iCM36,KM3#,YM3#198808-199804

58103AREINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH

main58103-95704iCM36,KM3#,YM3#198808-199804

58191FOOTREST, FRONT FLOOR

main58191-87001iYM35..GEN;KM36..SRF..05S199108-199804

MALAYSIA SPEC

main58192-95700iKM30199001-199804

58213APANEL, SEAT FLOOR, RH

main58201-95718iCM36,KM3#,YM3#198808-199804

sub58201-27030

58214APANEL, SEAT FLOOR, LH

main58214-95708iCM36,KM36,YM3#..RHD198808-199804

sub58202-27020

main58214-95709iCM36,KM3#..LHD198808-199804

sub58202-27030

58936ABAND, ENGINE SERVICE HOLE COVER SUPPORT

main58402-95714-03iKM30,37,YM3#;CM36,KM36..MRF;CM36,KM36..LHD..SRF198808-199804

GRAY,TRIM1#

main58402-95714-16iYM30198808-199201

SABLE,TRIM4#

main58402-95715-13iCM36,KM36..RHD..SRF198808-199804

GRAY,TRIM1#

58939ASCREW, ENGINE SERVICE HOLE COVER SUPPORT BAND

main58939-95J00iCM36,KM3#,YM3#198808-199804

6779595701BUMPER, FRONT DOOR SWITCH

main67795-95701

9010506104

main90105-06104

9010512017

main90105-12017

9017912020

main90179-12020

9033320001

main90333-20001

9095001001

main90950-01001

9095001006

main90950-01006

9095001047

main90950-01047

9095001112

main90950-01112

9095001127

main90950-01127

9095001133

main90950-01133

9095001147

main90950-01147

9095001398

main90950-01398

9095001486

main90950-01486

9095001784

main90950-01784

9326056016

main93260-56016

9338516014

main93385-16014

9338616014

main93386-16014

9461110601

main94611-10601

52 parts on this diagram · 2 diagrams in section
