FRONT PANEL & WINDSHIELD GLASS

53109ACOVER SUB-ASSY, HEADLAMP SERVICE HOLE

main53109-95700iKM30;CM36,KM36,YM3#..RHD198808-199804

53193SEAL, HEADLAMP COVER

main53196-95700iCM36,KM36,YM30,35..ARL198808-199201

53801JPANEL SUB-ASSY, FRONT SIDE, RH

main53801-95706iCM36..5H;CM36,KM36..SRF;KM30,37,YM30,35;CM36,KM36..MRF..ARL198808-199804

main53801-95707iCM36,KM36,YM31..MRF..5F..GEN199108-199804

main53801-95707iYM35..GEN199107-199804

MALAYSIA SPEC

53802JPANEL SUB-ASSY, FRONT SIDE, LH

main53802-95708iYM35..GEN;CM36..RHD..SRF;KM36..RHD..SRF..(4H,5F)..GEN198808-199201

sub53802-95713

main53802-95709iKM30,37,YM30;CM36,KM36..LHD;CM36,KM36,YM35..ARL198808-199604

main53802-95711iKM30,YM31199108-199804

main53802-95712iCM36,KM36..MRF..5F..GEN199107-199804

MALAYSIA SPEC

main53802-95713iYM35..GEN;CM36,KM36..RHD..(4F,4H)..GEN198910-199008

BODY RUST PROTECTING OR CKD SPEC

main53802-95713iCM36,YM35..RHD..GEN;KM36..RHD..(4H,5F)..GEN198808-199201

BODY RUST PROTECTING

main53802-95713iKM36..4F;KM36..MRF..GEN198808-199804

53823APROTECTOR, FRONT SIDE PANEL, NO.2

main53823-95703iCM36..5H;CM36,KM36..SRF;KM30,37,YM30,35;CM36,KM36..MRF..ARL198808-199804

main53823-95704iYM35..GEN;KM36..SRF..05S199107-199804

MALAYSIA SPEC

main53823-95704iCM36,KM3#,YM31..MRF199108-199804

53824APROTECTOR, FRONT SIDE

main53824-95703iYM35;KM36..SRF198808-199804

main53824-95704iYM35..GEN;KM36..SRF..05S199107-199804

MALAYSIA SPEC

main53824-95704iCM36,KM36,YM31..MRF..5F..GEN199108-199804

53828APROTECTOR, FRONT SIDE PANEL, NO.3

main53828-95702iKM36,YM35198808-199804

main53828-95703iYM35..GEN;KM36..SRF..05S199107-199804

MALAYSIA SPEC

main53828-95703iCM36,KM36,YM31..MRF..5F..GEN199108-199604

CKD SPEC

53828DPROTECTOR, FRONT SIDE PANEL, NO.3 LH

main53828-95702iCM36,KM3#,YM3#198808-199804

main53828-95703iYM35..GEN;KM36..SRF..05S199107-199804

MALAYSIA SPEC

main53828-95703iCM36,KM36,YM31..MRF..5F..GEN199108-199804

53867BRETAINER, FRONT SIDE PANEL

main53867-95700iCM36,KM3#,YM3#198808-199804

53867DRETAINER, FRONT SIDE PANEL, LH

main53867-95700iCM36,KM3#,YM3#198808-199804

53911PANEL, FRONT VALANCE

main53901-95702iYM35;KM36..SRF198808-199804

53915CPROTECTOR, LOWER SHROUD

main53915-95704iCM36,KM3#,YM3#198808-199804

53916CPROTECTOR, LOWER SHROUD, NO.2

main53916-95702iCM36,KM3#,YM3#198808-199804

55700PANEL ASSY, FRONT

main55701-27010iKM30199604-199804

main55701-95740iCM36,KM36,YM31..MRF..5F..GEN199107-199804

MALAYSIA SPEC

main55701-95745iYM35..GEN;CM36..RHD..SRF;KM36..RHD..SRF..(4H,5F)..GEN198808-199804

W(FRONT HEATER) OR W(BOOST VENTILATOR)

sub55701-95754

main55701-95746iKM30199001-199201

main55701-95749iCM36,KM36,37..LHD198808-199201

sub55701-95755

main55701-95750iYM35..GEN;CM36..RHD..SRF;KM36..RHD..SRF..(4H,5F)..GEN198808-199804

sub55701-95756

main55701-95751iCM36,KM36,37..LHD198808-199201

W(FRONT HEATER) OR W(BOOST VENTILATOR)

sub55701-95757

main55701-95752iCM36,KM36,YM35..ARL198808-199201

main55701-95753iYM30198808-199201

sub55701-95752

main55701-95754iYM35..GEN;CM36..RHD..SRF;KM36..RHD..SRF..(4H,5F)..GEN198808-199804

BODY RUST PROTECTING & W(FRONT HEATER OR BOOST VENTILATOR)

main55701-95755iCM36,KM36,37..LHD198808-199201

BODY RUST PROTECTING

main55701-95756iYM35..GEN;CM36..RHD..SRF;KM36..RHD..SRF..(4H,5F)..GEN198808-199804

BODY RUST PROTECTING

main55701-95757iCM36,KM36,37..LHD198808-199201

BODY RUST PROTECTING & W(FRONT HEATER OR BOOST VENTILATOR)

main55701-95758iCM36,KM36..SRF..5F198910-199108

CKD SPEC

main55701-95758iKM36..4F;KM36..MRF..GEN198808-199108

main55701-95758iCM36..5F..GEN198808-198910

MALAYSIA SPEC

55706AREINFORCEMENT SUB-ASSY, FRONT PANEL, UPPER

main55706-95706iCM36,KM36,YM3#..RHD198808-199804

main55706-95707iKM30198808-199804

55773RETAINER, WIPER SHAFT, CENTER

main55773-95704iCM36,KM3#,YM3#198808-199001

sub55773-95705

main55773-95705iCM36,KM3#,YM3#199001-199804

main55773-95705iKM30199604-199804

CENTER

main55774-95705iKM30199604-199804

SIDE

55774RETAINER, WIPER SHAFT SIDE

main55774-95704iCM36,KM36,YM3#..RHD198808-199001

sub55774-95706

main55774-95705iCM36,KM3#..LHD198808-199201

main55774-95706iCM36,KM36,YM3#..RHD199001-199804

56111GLASS, WINDSHIELD

main56111-95711iCM36,KM36,37,YM31,35..GEN198808-199804

*ZT,T=5.0

sub56111-95714

main56111-95712iYM35..GEN198808-199804

*TZT,T=5.0

sub56111-95718

main56111-95714iCM36..5H;CM36..SRF;KM37,YM35..GEN;KM36..SRF..(4H,5F)..GEN198808-199804

*LAM,T=5.3

sub56111-95716

main56111-95716iCM36..5H;CM36..SRF;KM37,YM35..GEN;KM36..SRF..(4H,5F)..GEN198808-199804

*TL,T=5.3

main56111-95717iCM36,KM36,YM30,35..ARL198808-199201

*LAM,T=5.3

sub56111-95716

main56111-95717iYM35..GEN198808-199804

*LAM,T=5.3,W(TOP SHADE)

sub56111-95716

56119SEAL, WINDSHIELD GLASS

main56119-95700iCM36,KM3#,YM3#198808-199804

56121WEATHERSTRIP, WINDSHIELD

main56121-95708iCM36,KM36,37,YM35198808-199804

sub56121-27010

main56121-95709iKM30,YM30,31198808-199804

sub56121-27020

56129HOSE, WINDSHIELD DRAIN

main56129-95700iCM36,KM3#,YM3#198808-199804

9011906350

main90119-06350

9015960076

main90159-60076

9015960279

main90159-60279

9018906015

main90189-06015

9018906118

main90189-06118

9033320001

main90333-20001

9040607001

main90406-07001

9165560820

main91655-60820

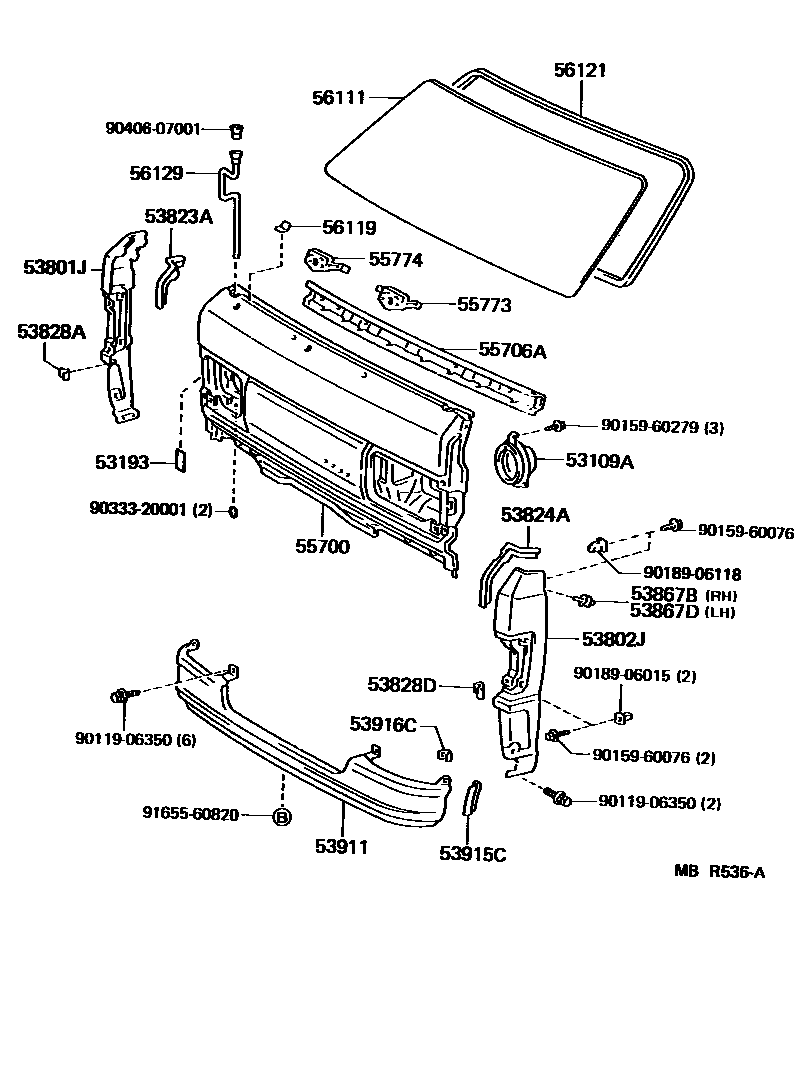

29 parts on this diagram · 1 diagram in section
