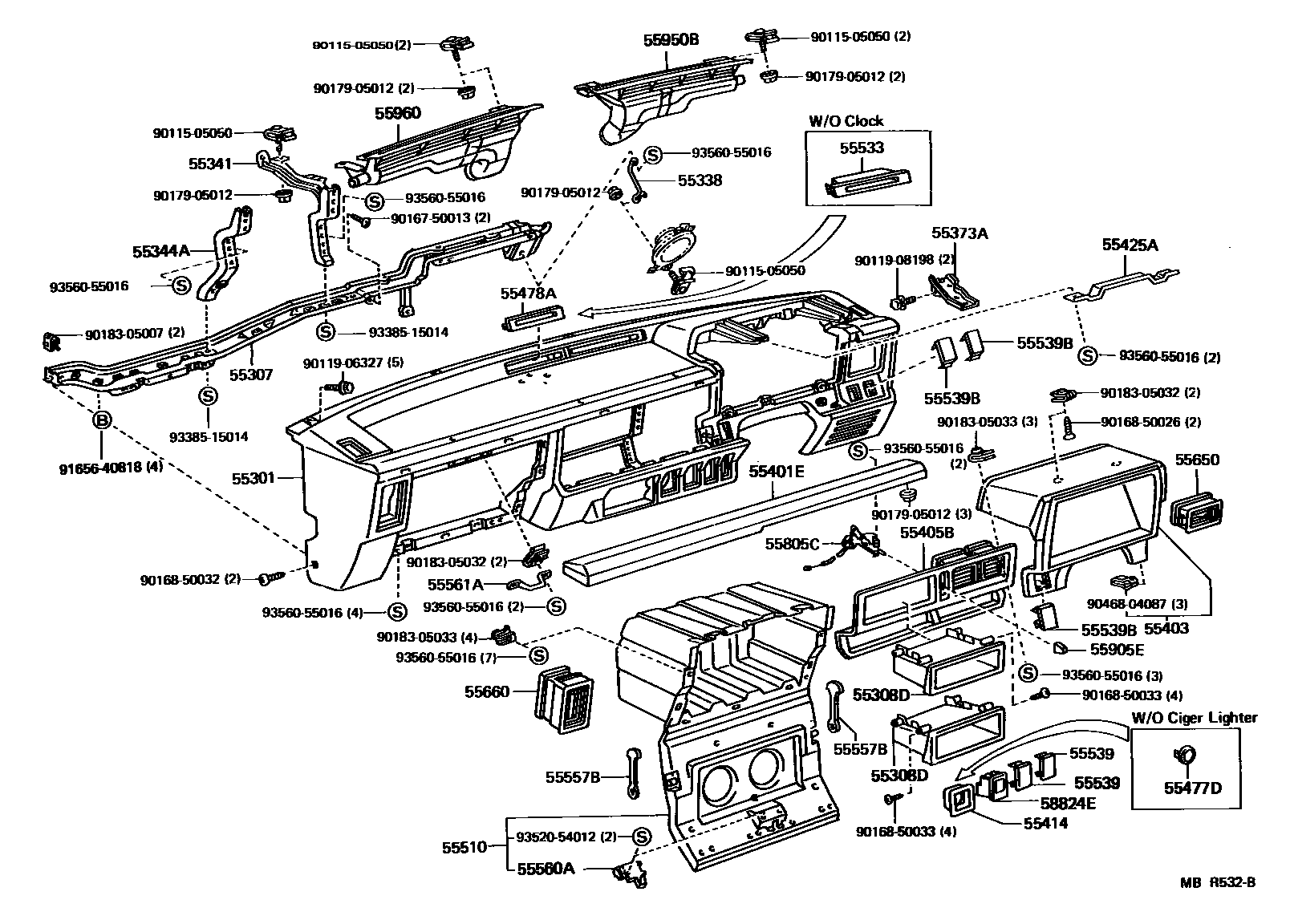

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55311-95710-03iYM31199108-199804

GRAY,TRIM1#

main55311-95711-03iYM30198808-199201

GRAY,TRIM1#

main55311-95711-16iYM30198808-199201

SABLE,TRIM4#

main55311-95713-13iCM36,KM36,YM35..RHD198808-199804

GRAY,TRIM1#

main55311-95714-03iCM36,KM3#..LHD198808-199804

GRAY,TRIM1#

55307REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER

main55307-95703iCM36,KM36,YM3#..RHD198808-199804

main55307-95704iCM36,KM3#..LHD198808-199804

55308DBOX SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-95701iCM36,KM3#,YM3#198808-199804

55338EXTENSION, INSTRUMENT PANEL REINFORCEMENT, NO.1

main55338-95700iCM36,KM36,YM3#..RHD198808-199804

main55338-95701iCM36,KM3#..LHD198808-199804

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-95702iCM36,KM3#,YM3#198808-199804

55344ABRACE, INSTRUMENT PANEL TO COWL, NO.3

main55344-95700iCM36,KM36,YM3#..RHD198808-199804

main55344-95701iCM36,KM3#..LHD198808-199804

TYPE A

main55344-95702iCM36,KM3#..LHD198808-199804

TYPE B

55373ABRACKET, OIL RESERVOIR TANK

main55035-27010iCM36,KM36,YM3#..RHD199012-199804

main55373-95700iCM36,KM36,YM3#..RHD198808-199012

main55373-95701iCM36,KM3#..LHD198808-199804

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-95704-03iYM30198808-199201

GRAY,TRIM1#

main55401-95704-16iYM30198808-199201

SABLE,TRIM4#

main55401-95707-03iYM31199108-199804

GRAY,TRIM1#

55403HOOD SUB-ASSY, METER

main55403-95702-03iCM36,KM36,YM30,35..RHD198808-199804

GRAY,TRIM1#

sub55403-95705

sub55403-95704

sub55403-95702

main55403-95702-16iYM30198808-199201

SABLE,TRIM4#

sub55403-95705

sub55403-95704

sub55403-95702

main55403-95703-03iCM36,KM3#..LHD198808-199804

GRAY,TRIM1#

main55403-95706-03iYM31199108-199804

GRAY,TRIM1#

sub55403-95706

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-95703-13iCM36..5H;CM36..SRF;KM37,YM35..GEN;KM36..SRF..(4H,5F)..GEN198808-199804

W(FRONT HEATER),GRAY,TRIM1#

sub55405-95703

main55405-95703-13iKM36..4F;KM36,YM35..VSP..ARL;CM36,KM30,36,YM30,31..MRF..(4FC,4H,5F)198808-199804

GRAY,TRIM1#

sub55405-95703

main55405-95703-16iYM30198808-199201

SABLE,TRIM4#

sub55405-95703

main55405-95705-03iYM35..GEN;CM36..RHD..SRF;KM36..RHD..SRF..(4H,5F)..GEN198808-199804

GRAY,TRIM1#

main55405-95706-03iCM36,KM36,37..LHD198808-199201

GRAY,TRIM1#

55414BEZEL, CIGAR LIGHTER HOLE

main55414-95J00iCM36,KM3#,YM3#198808-199804

55425ABRACKET, METER HOOD SET

main55425-95702iYM31199108-199804

55477DCOVER, CIGARETTE LIGHTER HOLE

main55477-95010-03iCM36..5H;KM37,YM35..GEN;CM36,KM36..SRF..GEN198808-199804

GRAY,TRIM1#

sub55477-10010

sub55477-95010

55478ABEZEL, AUTO CLOCK HOLE

main55478-95701-13iYM35..GEN;KM36..SRF..05S198808-199804

GRAY,TRIM1#

sub55478-95701

main55478-95701-16iYM30198808-199201

SABLE,TRIM4#

sub55478-95701

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-95707-13iCM36,KM3#,YM3#198808-199804

GRAY,TRIM1#

sub55501-95707

main55501-95707-16iYM30198808-199201

SABLE,TRIM4#

sub55501-95707

55533COVER, AUTO CLOCK HOLE

main55423-95702-13iCM36..5H;KM37,YM30,35;CM36,KM36..SRF;CM36,KM36..MRF..ARL198808-199804

GRAY,TRIM1#

sub55423-95702

main55423-95702-16iYM30198808-199201

SABLE,TRIM4#

sub55423-95702

55539COVER, SPARE SWITCH HOLE

main55539-24010-13iCM36,KM3#,YM3#198808-199804

GRAY,TRIM1#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

main55539-24010-46iYM30198808-199201

SABLE,TRIM4#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-32010-13iCM36,KM3#,YM3#198808-199804

SHADOW GRAY,TRIM1#

sub55539-32010

sub55539-32030

main55539-32010-56iYM30198808-199201

SABLE,TRIM4#

sub55539-32010

sub55539-32030

55557BSTOPPER, GLOVE COMPERTMENT DOOR CHECK

main55557-95700iCM36,KM3#,YM3#198808-199804

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-95704-13iCM36,KM3#,YM3#198808-199804

GRAY,TRIM1#

sub55560-95704

sub55560-95J00

main55560-95704-16iYM30198808-199201

SABLE,TRIM4#

sub55560-95704

sub55560-95J00

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-95702iCM36,KM3#,YM3#198808-198911

sub55561-95704

main55561-95704iCM36,KM3#,YM3#198911-199804

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-95701-13iCM36,KM3#,YM3#198808-199804

GRAY,TRIM1#

main55650-95701-16iYM30198808-199201

SABLE,TRIM4#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-95701-13iCM36,KM3#,YM3#198808-199804

GRAY,TRIM1#

sub55660-95701

main55660-95701-16iYM30198808-199201

SABLE,TRIM4#

sub55660-95701

55805CBRACKET SUB-ASSY, AIR DAMPER CONTROL LEVER

main55805-95704iCM36,KM3#,YM3#198808-199804

55905EKNOB SUB-ASSY, CONTROL

main55905-12050-01iCM36,KM3#,YM31,35198808-199804

BLACK,TRIM1#,4#

sub55905-12050

sub55905-20230

sub55905-35090

main55905-12050-01iYM30198808-199804

BLACK,TRIM1#

sub55905-12050

sub55905-20230

sub55905-35090

55950BNOZZLE ASSY, DEFROSTER, RH

main55950-95703iCM36,KM3#,YM3#198808-199804

55960NOZZLE ASSY, DEFLOSTER, LH

main55960-95702iCM36,KM3#,YM3#198808-199804

58824EBOX, INSTRUMENT PANEL COIN

main58824-95703-13iCM36,KM36,37,YM31..GEN198808-199804

GRAY,TRIM1#

sub58824-95703

9011505050

main90115-05050

9011906327

main90119-06327

9011908198

main90119-08198

9016750013

main90167-50013

9016850026

main90168-50026

9016850032

main90168-50032

9016850033

main90168-50033

9017905012

main90179-05012

9018305007

main90183-05007

9018305032

main90183-05032

9018305033

main90183-05033

9046804087

main90468-04087

9165640818

main91656-40818

9338515014

main93385-15014

9352054012

main93520-54012

9356055016

main93560-55016

44 parts on this diagram · 2 diagrams in section
