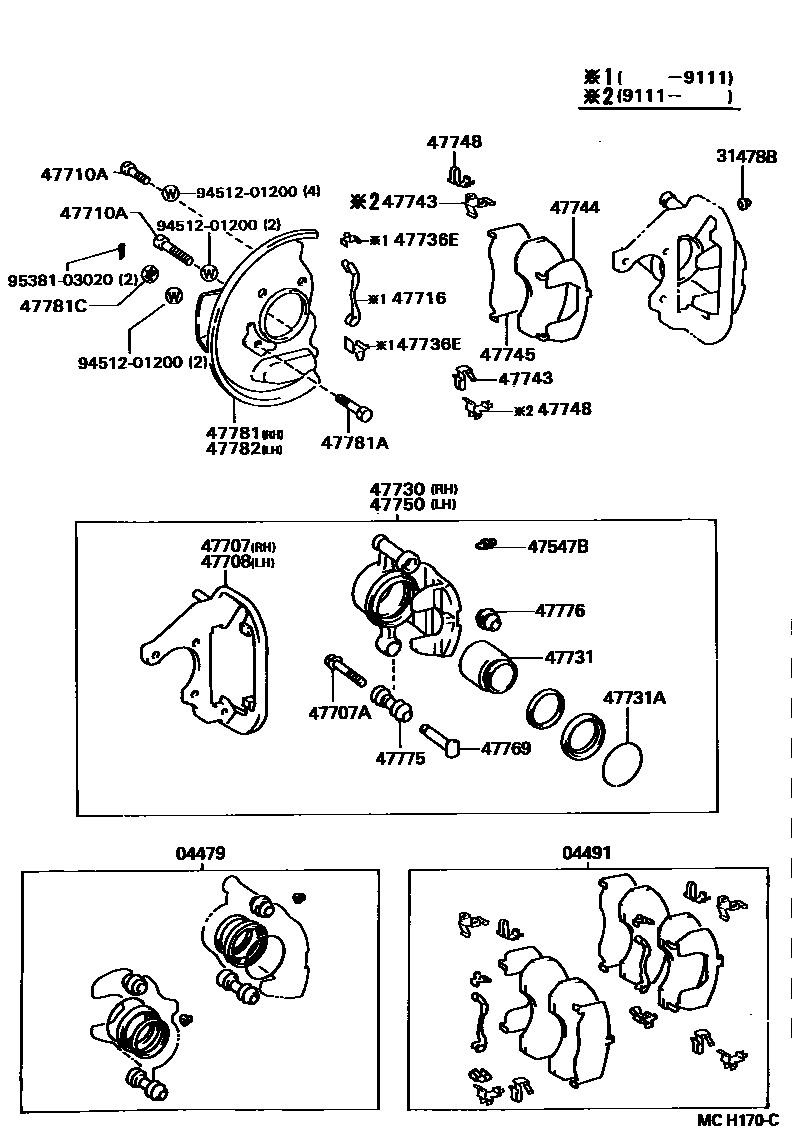

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-27010iCM36,KM3#,YM3#198808-199804

04491PAD KIT, DISC BRAKE, FRONT

main04491-27080iCM36,KM3#..GEN198808-198910

sub04491-27081

main04491-27081iCM36,KM3#,YM31..GEN198910-199505

sub04491-28260

main04491-27090iYM35;CM36,KM36,YM30..ARL198808-198910

sub04491-28260

main04491-28260iYM35;CM36,KM36,YM30..ARL198910-199505

sub04465-27010

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iCM36,KM3#,YM3#198808-199804

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iCM36,KM3#,YM3#198808-199804

47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH

main47707-27040iCM36,KM3#,YM31198808-199804

main47707-28060iYM35;CM36,KM36,YM30..ARL198808-199804

47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)

main90119-08384iCM36,KM3#,YM3#198808-199804

47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH

main47708-27040iCM36,KM3#,YM31198808-199804

main47708-28060iYM35;CM36,KM36,YM30..ARL198808-199804

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12010iCM36,KM3#,YM3#198808-199804

*12-1.25PX50-26

main90101-12030iCM36,KM3#,YM3#198808-199804

*12-1.25PX31-20

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-28020iCM36,KM3#,YM3#198808-199111

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-27060iCM36,KM3#,YM31..GEN198808-199804

main47730-27070iYM35;CM36,KM36,YM30..ARL198808-199804

47731PISTON, FRONT DISC BRAKE

main47731-14090iCM36,KM3#,YM3#198808-199804

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-69002iCM36,KM3#,YM3#198808-199804

47736EPLATE, FRONT DISC BRAKE PAD GUIDE, NO.1

main47736-14030iCM36,KM3#,YM3#198808-199111

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-14040iCM36,KM3#,YM3#199111-199804

LOWER

main47743-14040iCM36,KM3#,YM3#198808-199111

main47743-28010iCM36,KM3#,YM3#199111-199804

UPPER

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-28010iCM36,KM3#,YM31..GEN198808-199804

sub47744-28020

main47744-28020iYM35;CM36,KM36,YM30..ARL198808-199804

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47744-28030iCM36,KM3#,YM3#198910-199804

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-14050iCM36,KM3#,YM3#199111-199804

UPPER

main47748-14050iCM36,KM3#,YM3#198808-199111

main47748-28010iCM36,KM3#,YM3#199111-199804

LOWER

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-27060iCM36,KM3#,YM31..GEN198808-199804

main47750-27070iYM35;CM36,KM36,YM30..ARL198808-199804

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-28010iCM36,KM3#,YM3#198808-199804

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-17010iCM36,KM3#,YM3#198808-199804

47776BOOT, MAIN PIN(FOR FRONT DISC BRAKE)

main47776-14010iCM36,KM3#,YM3#198808-199804

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-28051iYM35199408-199804

main47703-28072iCM36,KM3#,YM31199408-199804

main47781-28050iCM36,KM3#,YM31..GEN198808-199408

main47781-28060iYM35;CM36,KM36,YM30..ARL198808-199408

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90102-12001iCM36,KM3#,YM3#198808-199804

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main94145-71200iCM36,KM3#,YM3#198808-199804

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-28051iYM35199408-199804

main47704-28072iCM36,KM3#,YM31199408-199804

main47782-28050iCM36,KM3#,YM31..GEN198808-199408

main47782-28060iYM35;CM36,KM36,YM30..ARL198808-199408

9451201200

main94512-01200

9538103020

main95381-03020

27 parts on this diagram · 2 diagrams in section
