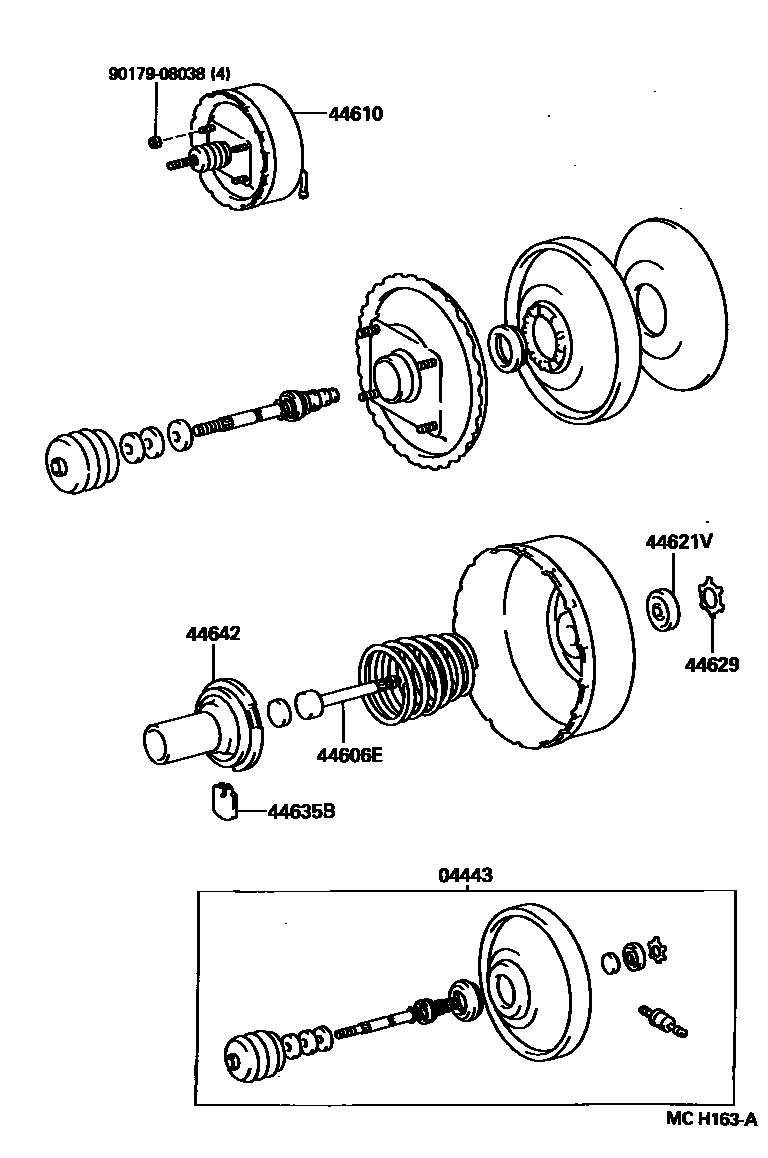

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

04443BOOSTER KIT, BRAKE

main04443-27260iKM3#..LHD¥11,400198808-199201

main04443-27270iCM36..LHD¥11,400198808-199201

main04443-27370iKM36..SRF¥13,200198808-199804

main04443-27380iCM36..ARL;CM36..RHD..SRF¥13,200198808-199201

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-12520iCM36,KM36,YM3#..RHD¥2,660198808-199804

44610BOOSTER ASSY, BRAKE

main44610-27250iCM36,KM3#..LHD¥46,200198808-199804

main44610-27350iCM36,KM36,YM3#..RHD¥46,000198808-199804

44621VSEAL, BOOSTER BODY

main44621-28120iCM36,KM36,YM3#..RHD¥590198808-199804

44629RING, CIRCULAR INTERNAL

main44628-28120iCM36,KM36,YM3#..RHD¥390198808-199804

44635BKEY, VALVE STOPPER

main44635-12630iCM36,KM36,YM3#¥410198808-199804

44642PISTON, BRAKE BOOSTER

main44642-12520iCM36,KM36,YM3#¥5,500198808-199804

9017908038

main90179-08038¥130

8 parts on this diagram · 4 diagrams in section
