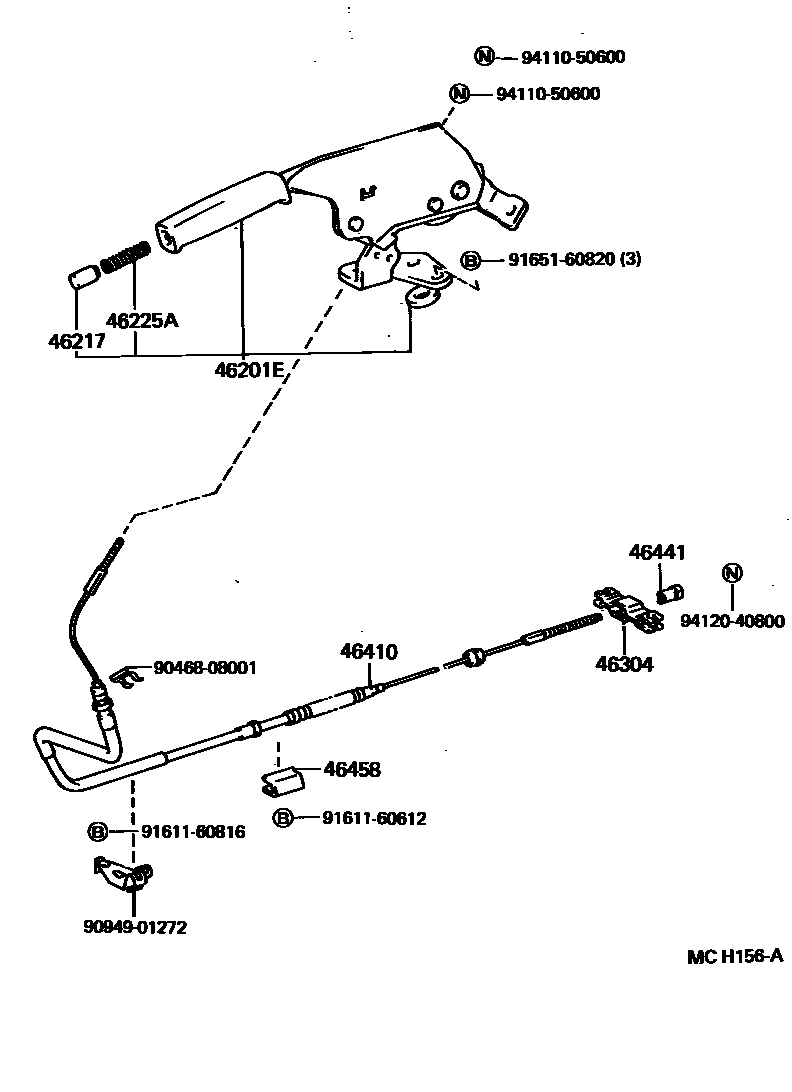

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-27021-13iCM36,KM36,YM31,35..RHD..GEN198808-199804

GRAY,TRIM1#

sub46201-27021

main46201-27021-16iYM30198808-198810

SABLE,TRIM4#

sub46201-27021

main46201-27030-03iCM36,KM36,YM30,35..ARL198810-199201

GRAY,TRIM1#

sub46201-27030

main46201-27030-06iYM30198810-199201

SABLE,TRIM4#

sub46201-27030

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020iCM36,KM36,YM31,35..RHD..GEN199009-199804

sub46217-16030

main46217-12020-03iCM36,KM36,YM35..RHD..GEN198808-199009

SHADOW GRAY,TRIM1#

sub46217-12020

sub46217-16030

main46217-12020-06iYM30198808-198810

SABLE,TRIM4#

sub46217-12020

sub46217-16030

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10132iCM36,KM36,YM31,35..RHD..GEN198810-199804

main90501-10745iCM36,KM36,YM3#..RHD198808-198810

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-22020iCM36,KM3#,YM3#198808-199804

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-27120iKM36,YM3#198808-199804

main46410-27140iCM36..RHD198808-199804

main46410-27150iCM36,KM3#..LHD198808-199804

46441NUT, WIRE ADJUSTING, NO.1

main46441-35010iCM36,KM3#,YM3#198808-199804

46458RETAINER, CABLE

main46458-28010iCM36,KM3#,YM3#198808-199804

9046808001

main90468-08001

9094901272

main90949-01272

9161160612

main91611-60612

9161160816

main91611-60816

9165160820

main91651-60820

9411050600

main94110-50600

9412040800

main94120-40800

14 parts on this diagram · 3 diagrams in section
