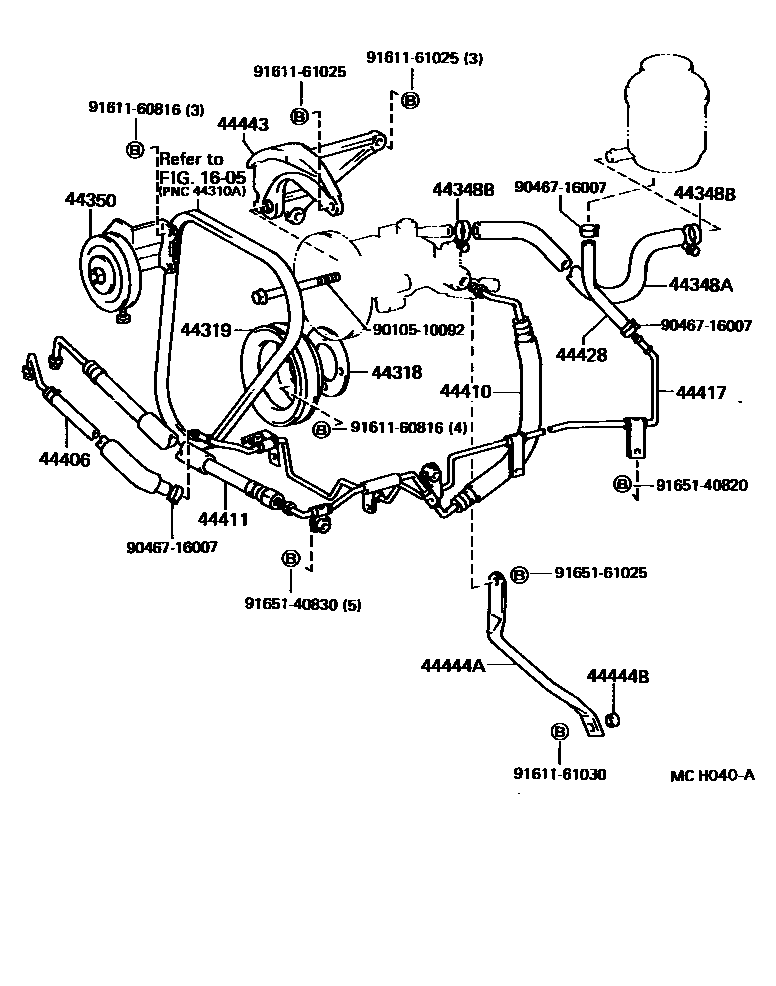

POWER STEERING TUBE

0001 1 0002 1

1605

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-27010iKM30199604-199804

main44318-28012iYM30198908-199201

44319PULLEY, VANE PUMP DRIVE

main44319-27020iKM30199604-199804

main44319-28013iYM30198908-199201

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-27100iYM30198908-199201

main44348-27170iKM30199604-199804

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90467-21005iYM30198908-199201

sub90467-21010

44350PULLEY ASSY, POWER STEERING IDLE

main44350-27010iKM30199604-199804

main44350-28011iYM30198908-199201

44406TUBE SUB-ASSY, RETURN

main44406-27010iYM30198908-199201

44410TUBE ASSY, PRESSURE FEED

main44410-27040iYM30198908-199201

main44410-27230iKM30199604-199804

44411HOSE, PRESSURE FEED

main44411-27020iYM30198908-199201

44417TUBE, RETURN, NO.2

main44417-27040iYM30198908-199201

main44417-27080iKM30199604-199804

sub44416-22250

44428HOSE, RETURN, NO.2

main44428-27010iYM30198908-199201

44443BRACKET, PUMP

main44443-27010iKM30199604-199804

main44443-28011iYM30198908-199201

44444ASTAY, PUMP, REAR NO.1

main44444-27020iKM30199604-199804

main44444-27030iYM30198908-199201

44444BCOLLAR (FOR PUMP REAR STAY)

main90387-12031iYM30198908-199201

9010510092

main90105-10092

9046716007

main90467-16007

9161160816

main91611-60816

9161161025

main91611-61025

9161161030

main91611-61030

9165140820

main91651-40820

9165140830

main91651-40830

9165161025

main91651-61025

22 parts on this diagram · 2 diagrams in section
