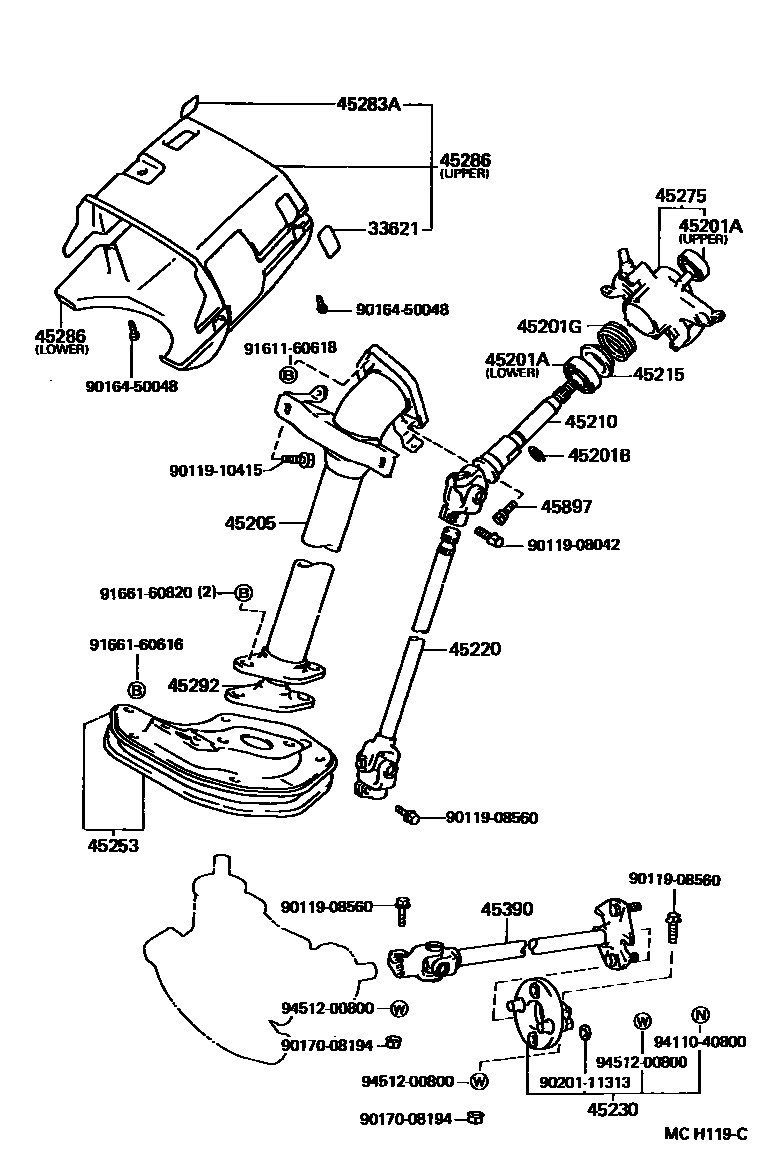

STEERING COLUMN & SHAFT

0001 1 0002 1W(TILT STEERING) 0003 1W(TILT STEERING) 0004 1

33621PLATE, CONTROL LEVER CAUTION

main33621-36010iKM36,37..LHD198808-199201

main33621-36030iCM36..5H198808-199201

main33621-36040iKM36..RHD..4H198808-199201

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iCM36,KM3#,YM3#198808-199201

UPPER

main90363-28001iCM36,KM3#,YM3#198808-199201

LOWER

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iCM36,KM3#,YM3#198808-199201

T=1.20

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-45011iCM36,KM3#,YM3#198808-199201

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-27090iCM36,KM36,YM30,35..RHD198808-199201

main45205-27100iYM31199108-199804

main45205-27110iCM36,KM3#..LHD198808-199804

45210SHAFT ASSY, STEERING MAIN

main45210-22050iCM36,KM3#,YM3#198808-199305

main45210-22120iCM36,KM3#,YM3#199305-199804

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-22011iCM36,KM3#,YM3#199201-199804

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-27110iCM36,KM36,YM3#..RHD198808-199201

main45220-27120iCM36,KM3#..LHD198808-199804

45230COUPLING ASSY, FLEXIBLE

main45230-27080iCM36,KM3#,YM3#198808-199604

main45230-27090iKM30199604-199804

45253COVER, STEERING COLUMN HOLE

main45253-27080iKM36..RHD..4H198808-199201

main45253-27090iCM36,KM36,37..LHD..(4H,5H)198808-199201

45275BRACKET, STEERING COLUMN, UPPER

main45280-27092iKM36..RHD..4H198808-199201

main45280-27101iCM36,KM36,YM35199201-199804

main45280-27111iYM31199108-199804

main45280-27121iCM36,KM36,37..LHD..(4H,5H)198808-199201

main45280-27131iCM36,KM30..LHD..(4F,5F)198808-199804

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iCM36,KM36,YM3#..RHD198808-199201

45286COVER, STEERING COLUMN

main45286-27161-03iKM36..RHD..4H198808-199201

GRAY,TRIM1#,UPPER

main45286-27171-06iYM30198808-199201

SABLE,TRIM4#,UPPER

main45286-27171-13iCM36,KM36,YM30,35..RHD..(02S,05S,08S)198808-199804

GRAY,TRIM1#,UPPER

main45286-27181-03iCM36,YM30,35..ARL198808-199201

W(TILT STEERING),GRAY,TRIM1#,UPPER

main45286-27181-06iYM30198808-199201

W(TILT STEERING),SABLE,TRIM4#,UPPER

main45286-27190-03iKM36,37..LHD198808-199201

GRAY,TRIM1#,UPPER

main45286-27200-03iCM36..5H198808-199201

GRAY,TRIM1#,UPPER

main45286-27211-03iCM36,KM30..LHD..(4F,5F)198808-199804

GRAY,TRIM1#,UPPER

main45287-27070-13iKM36..RHD..4H198808-199201

GRAY,TRIM1#,LOWER

main45287-27080-13iCM36,KM36,YM30,35..RHD..(02S,05S,08S)198808-199804

GRAY,TRIM1#,LOWER

main45287-27080-16iYM30198808-199201

BROWN,TRIM4#,LOWER

main45287-27090-03iCM36,YM30,35..ARL198808-199201

W(TILT STEERING),GRAY,TRIM1#,LOWER

main45287-27090-16iYM30198808-199201

W(TILT STEERING),SABLE,TRIM4#,LOWER

main45287-27100-03iCM36,KM36,37..LHD..(4H,5H)198808-199201

GRAY,TRIM1#,LOWER

main45287-27110-03iCM36,KM30..LHD..(4F,5F)198808-199804

GRAY,TRIM1#,LOWER

45292SEAL, MAIN SHAFT LOWER DUST

main45292-27010iCM36,KM3#,YM3#198808-199201

45390SHAFT ASSY, STEERING TORQUE

main45390-27060iCM36,KM3#,YM3#198808-199604

main45390-27070iYM30198908-199008

W(POWER STEERING)

45897BOLT, STEERING LOCK SET

main45897-14010iCM36,KM3#..LHD198808-199201

sub45897-12030

9011908042

main90119-08042

9011908560

main90119-08560

9011910415

main90119-10415

9016450048

main90164-50048

9017008194

main90170-08194

9020111313

main90201-11313

9161160618

main91611-60618

9166160616

main91661-60616

9166160820

main91661-60820

9411040800

main94110-40800

9451200800

main94512-00800

27 parts on this diagram · 4 diagrams in section
