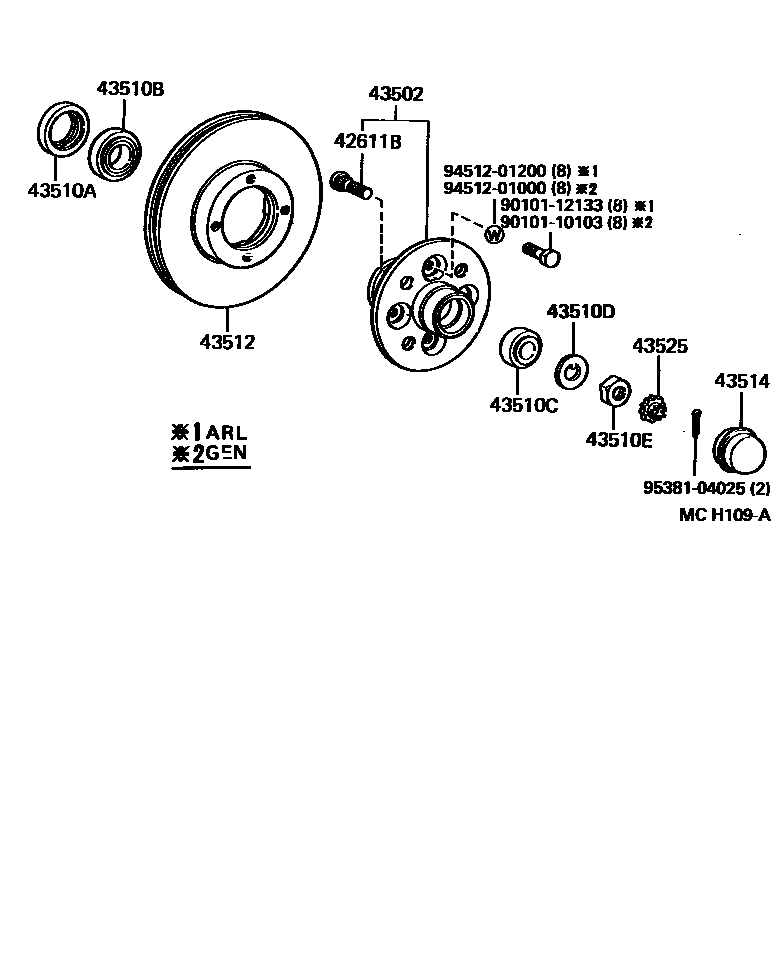

FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02048iCM36,KM3#,YM3#198808-199804

43502HUB SUB-ASSY, FRONT AXLE

main43502-20010iCM36,KM3#,YM31..GEN198808-199804

main43502-28030iYM35;CM36,KM36,YM30..ARL198808-199804

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-48001iCM36,KM3#,YM3#198808-199804

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-31067iCM36,KM3#,YM3#198808-199804

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-19037iCM36,KM3#,YM3#198808-199804

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20005iCM36,KM3#,YM3#198808-199804

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185iCM36,KM3#,YM3#198808-199804

43512DISC, FRONT

main43512-28020iCM36,KM3#,YM31198808-199804

main43512-28050iCM36,KM36,YM3#..ARL198808-198904

sub43512-28051

main43512-28051iYM35;CM36,KM36,YM30..ARL198904-199804

43514CAP, FRONT HUB GREASE

main43514-22020iCM36,KM3#,YM3#199309-199804

main43514-27010iCM36,KM3#,YM3#198808-199309

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010iCM36,KM3#,YM3#198808-199804

9010110103

main90101-10103

9010112133

main90101-12133

9451201000

main94512-01000

9451201200

main94512-01200

9538104025

main95381-04025

15 parts on this diagram · 1 diagram in section
