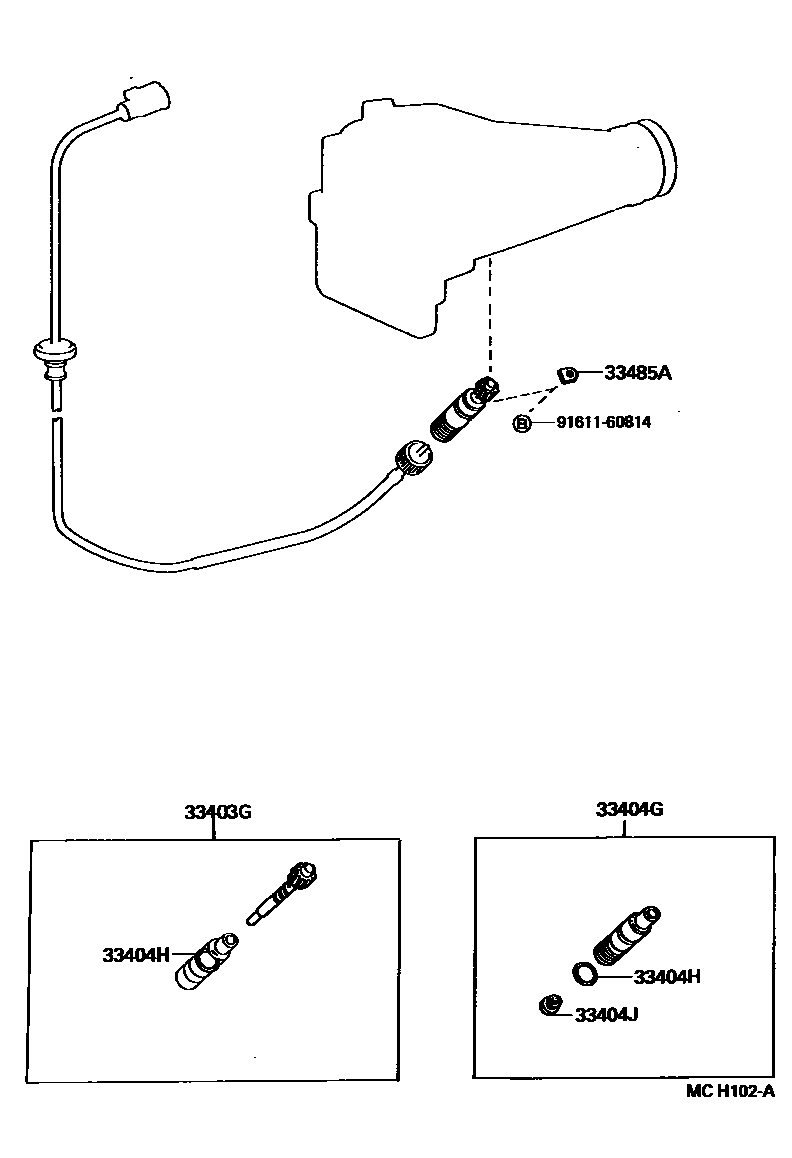

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29245iYM30,35..4FC198808-199201

N=19,MARK 19:5

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iYM30,35..4FC198808-199201

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iYM30,35..4FC198808-199201

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iYM30,35..4FC198808-199201

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iYM30,35..4FC198808-199201

9161160814

main91611-60814

6 parts on this diagram · 1 diagram in section
