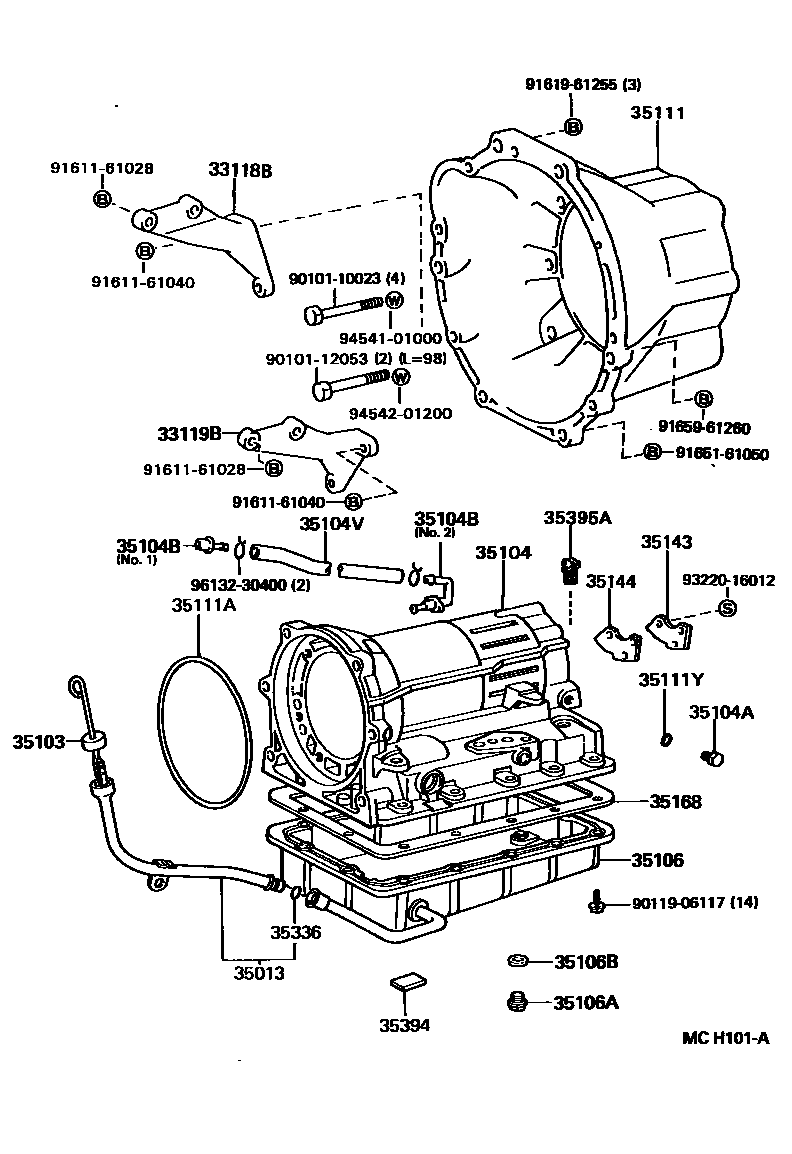

TRANSMISSION CASE & OIL PAN (ATM)
33118BPLATE, STIFFENER, RH(ATM)
33119BPLATE, STIFFENER, LH(ATM)
35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104APLUG, AUTOMATIC TRANSMISSION CASE
35104BPLUG, BREATHER, NO.1 (ATM)
NO.1
NO.2
35104VHOSE (FOR BREATHER PLUG)
sub90445-11090
35106APLUG SUB-ASSY, DRAIN (ATM)
sub90341-10011
35106BGASKET, DRAIN PLUG (ATM)
35111HOUSING, AUTOMATIC TRANSMISSION
35111ARING, O (FOR AUTOMATIC TRANSMISSION HOUSING)
35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)
35143COVER, TRANSMISSION CASE, REAR
35168GASKET, AUTOMATIC TRANSMISSION OIL PAN
35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
35395ASTRAINER, GOVERNOR OIL
9010110023
main90101-10023
9010112053
main90101-12053
9011906117
main90119-06117
9161161028
main91611-61028
9161161040
main91611-61040
9161961255
main91619-61255
9165161050
main91651-61050
9165961260
main91659-61260
9322016012
main93220-16012
9454101000
main94541-01000
9454201200
main94542-01200
9613230400
main96132-30400
32 parts on this diagram · 1 diagram in section
