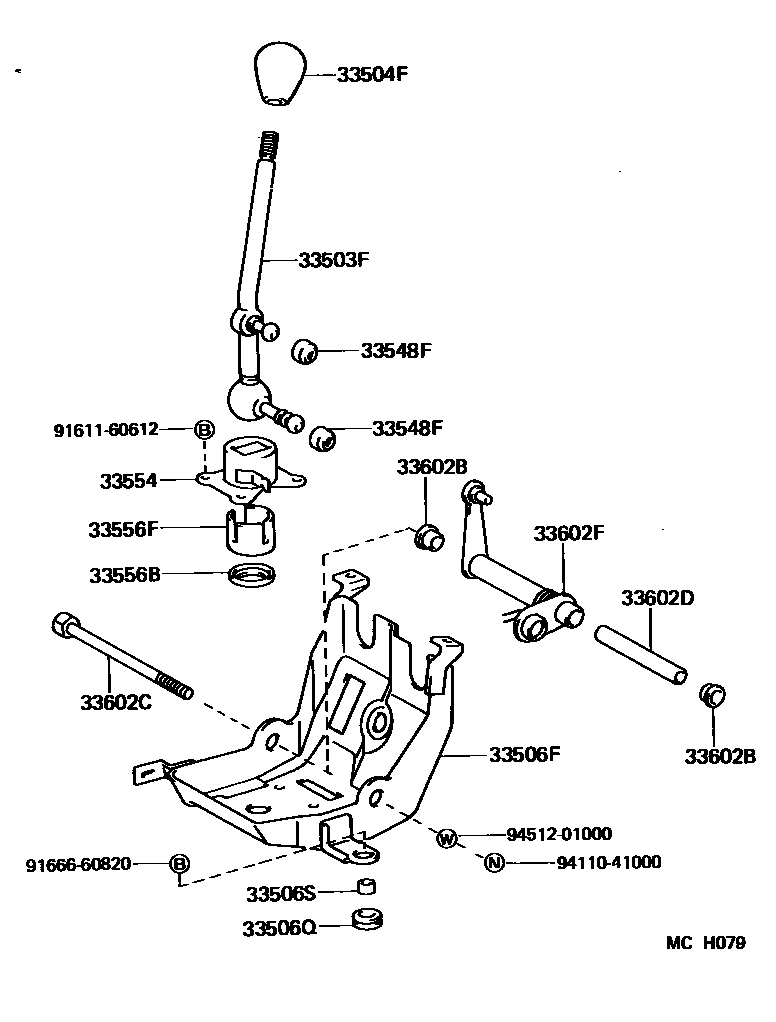

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33503-27050iYM30..4FC198808-199201

W(URETHANE STEERING WHEEL)

main33503-27070iYM35..4FC198808-199201

main33503-27090iCM36,KM36..RHD..4F198808-199201

main33503-27100iCM36..LHD..4F198808-199201

main33503-27110iCM36,KM36,YM3#..5F198808-199804

main33503-27120iKM30199001-199804

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14040-33iCM36,KM36..4F198808-199201

GRAY,TRIM1#

sub33504-14040

main33504-14070-43iCM36,KM36,YM35..5F198808-199701

GRAY,TRIM1#

sub33504-14070

sub33504-14050

main33504-14070-P0iCM36,KM36,YM35199701-199804

SHADOW GRAY,TRIM1#

sub33504-14070

sub33504-14050

main33504-24010-20iCM36,YM35..MRF..5F198808-199009

W(URETHANE STEERING WHEEL),GRAY,TRIM1#

sub33504-24010

main33504-24010-20iKM30,YM30..5F198808-199009

GRAY,TRIM1#

sub33504-24010

main33504-24010-59iYM30..5F198808-199201

SABLE,TRIM4#

sub33504-24010

main33504-24010-B0iYM35..5F;CM36..ARL198808-199804

W(URETHANE STEERING WHEEL),MEDIUM GRAY,TRIM1#

sub33504-24010

main33504-24010-B0iKM30,YM30,31..5F198808-199804

MEDIUM GRAY,TRIM1#

sub33504-24010

main33504-24010-B3iYM35..5F;CM36..ARL199009-199804

W(URETHANE STEERING WHEEL),SHADOW GRAY,TRIM1#

sub33504-24010

main33504-24010-B3iYM35..5F;CM36..ARL199009-199804

SHADOW GRAY,TRIM1#

sub33504-24010

main33542-32010-33iYM35..4FC198808-199201

GRAY,TRIM1#

sub33542-32010

main33542-32040-03iYM35..4FC198808-199201

W(URETHANE STEERING WHEEL),SHADOW GRAY,TRIM1#

sub33542-32040

main33542-32040-03iYM30..4FC198808-199201

SHADOW GRAY,TRIM1#

sub33542-32040

main33542-32040-26iYM30..4FC198808-199201

SABLE,TRIM4#

sub33542-32040

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-27020iCM36,KM30,36,YM3#..4F,5F198808-199804

33506QGROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)

main90480-13012iCM36,KM30,36,YM3#..4F,5F198808-199804

33506SCOLLAR, NO.1(FOR CONTROL SHIFT LEVER RETAINER)

main90387-09011iCM36,KM30,36,YM3#..4F,5F198808-199804

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-12021iCM36,KM30,36,YM3#..4F,5F198808-199804

33554CAP, SHIFT LEVER

main33554-27020iCM36,KM36..4F198808-199201

main33554-27030iCM36,KM30,36,YM3#..5F198808-199804

33556BBUSH (FOR TRANSMISSION SHIFT LEVER BALL SEAT)

main90385-24001iCM36,KM30,36,YM3#..4F,5F198808-199804

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-27020iCM36,KM30,36,YM3#..4F,5F198808-199804

33602BBUSHING (FOR SELECT LEVER)

main90386-13007iCM36,KM30,36,YM3#..4F,5F198808-199804

33602CBOLT (FOR SELECT LEVER)

main90101-10191iCM36,KM30,36,YM3#..4F,5F198808-199804

33602DCOLLAR (FOR SELECT LEVER)

main90387-10083iCM36,KM30,36,YM3#..4F,5F198808-199804

33602FLEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)

main33602-27040iCM36,KM36..4F198808-199201

main33602-27050iCM36,KM30,36,YM3#..5F198808-199804

9161160612

main91611-60612

9166660820

main91666-60820

9411041000

main94110-41000

9451201000

main94512-01000

17 parts on this diagram · 6 diagrams in section
