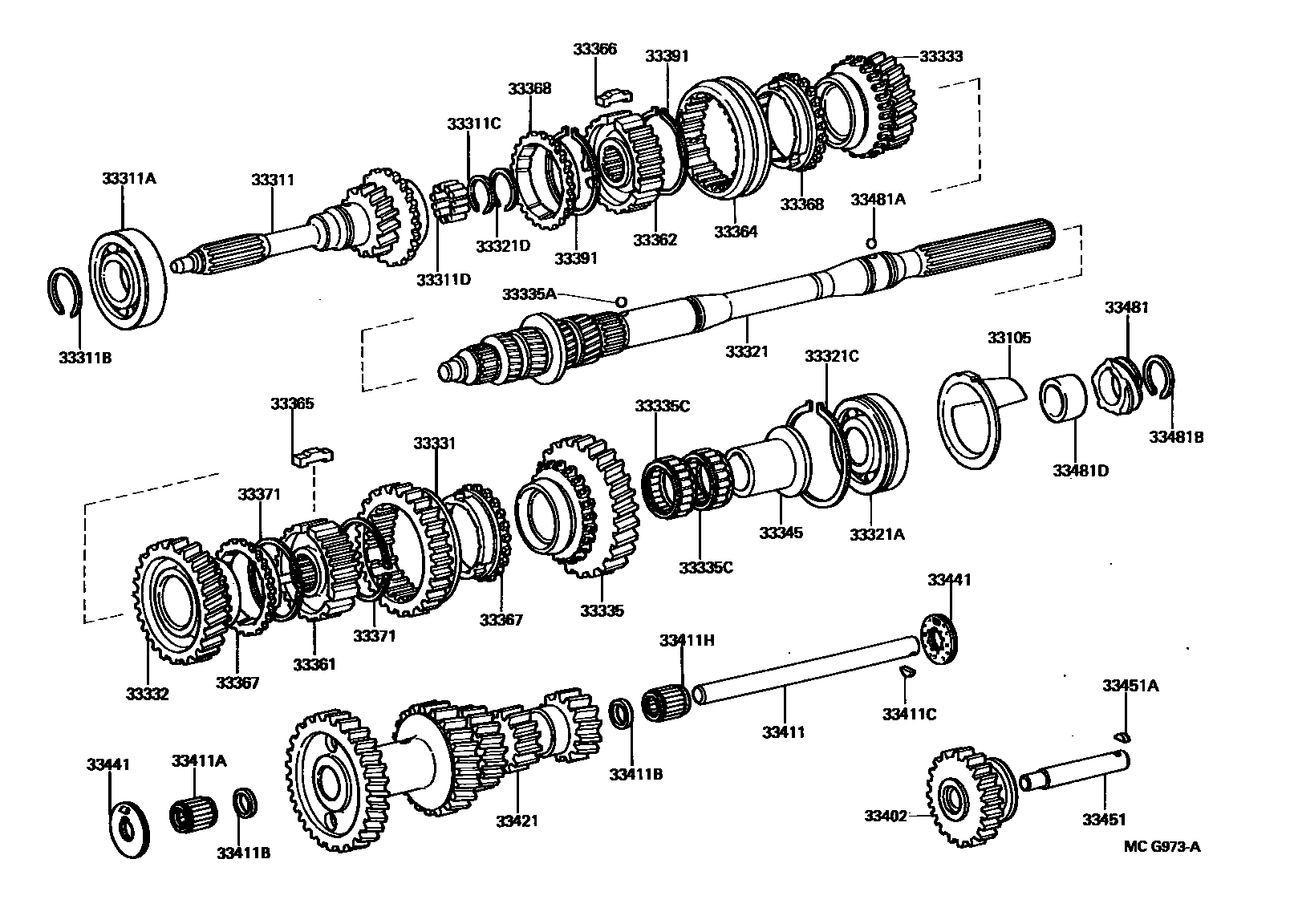

TRANSMISSION GEAR (MTM)
33105BAFFLE SUB-ASSY, EXTENSION HOUSING OIL
33311SHAFT, INPUT
sub33301-35080
sub33301-35071
sub33301-26030
sub33301-26040
sub33301-26030
*AXC=E252,*FGR=41:9
*AXC=E362,*FGR=43:9
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.05,MARK 0
T=2.10,MARK 1
T=2.15,MARK 2
T=2.20,MARK 3
T=2.20,MARK 3,MALAYSIA SPEC
T=2.25,MARK 4,MALAYSIA SPEC
T=2.25,MARK 4
T=2.30,MARK 5,MALAYSIA SPEC
T=2.30,MARK 5
T=2.30-2.35,MARK 11
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)
33311DBEARING, INPUT SHAFT
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.35,MARK 1
T=1.45,MARK 2
T=1.55,MARK 3
T=1.65,MARK 4
T=1.75,MARK 5
T=1.65,ID=71.1
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=1.85-1.90,MARK D-1
T=1.95-2.00,MARK E-1
T=1.75-1.80,MARK C-1
T=2.05-2.10,MARK F-1
T=1.50-1.55,MARK A
T=1.60-1.65,MARK B
T=1.70-1.75,MARK C
T=1.80-1.85,MARK D
T=1.90-1.95,MARK E
T=2.00-2.05,MARK F
T=2.20,MARK 3
T=2.25,MARK 4
T=2.30,MARK 5
33331GEAR, REVERSE
33332GEAR, 2ND
CKD SPEC
33335ABALL, 1ST SHIFT RESTRICT
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33345BUSH, 1ST GEAR
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33364SLEEVE, TRANSMISSION HUB, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33402GEAR SUB-ASSY, REVERSE IDLER
33411COUNTERSHAFT
33411BSPACER(FOR COUNTER GEAR BEARING)
33411CKEY, WOODRUFF(FOR COUNTER GEAR SHAFT)
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33441WASHER, COUNTER GEAR SIDE THRUST, NO.1
T=2.25
T=2.35
T=2.45
T=2.55
T=2.65
T=2.21
33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=5,MARK 5X17-19
N=4
N=5,MARK 5X17-19
N=4,MARK 4X16-18,CKD SPEC
N=4,MARK 4X16-18
N=6,MARK 6X21-23
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
T=1.50,OD=31.3
T=2.20-2.25,MARK 1
T=1.90-1.95,MARK E
T=2.00-2.05,MARK F
T=2.10-2.15,MARK G
33481DSPACER (FOR SPEEDOMETER DRIVE GEAR)
40 parts on this diagram · 2 diagrams in section
