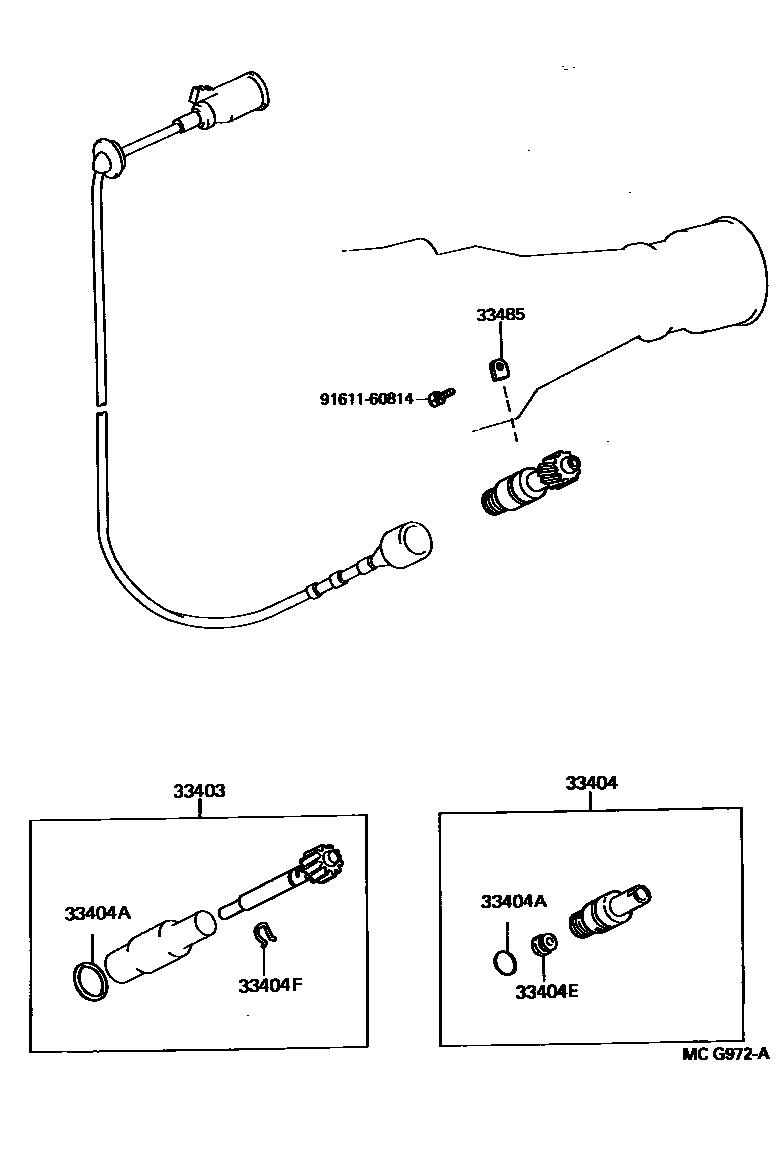

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33482-29035iCM36..4F,5H199008-199804

N=22,MARK 22:6

main33482-29045iCM36,KM37..4H,5F;KM36..SRF..(4H,5F)..GEN198808-199804

N=19,MARK 19:5

main33482-39035iCM36..4F,5H198808-199201

N=21,MARK 21:6

main33482-39085iYM3#..5F198808-199804

N=18,MARK 18:5

main33482-39095iKM36198808-199804

N=16,MARK 16:4

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-35010iCM36,KM3#,YM3#..MTM198808-199804

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iCM36,KM3#,YM3#..MTM198808-199804

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iCM36,KM3#,YM3#..MTM198808-199804

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iCM36,KM3#,YM3#..MTM198808-199804

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iCM36,KM3#,YM3#..MTM198808-199804

9161160814

main91611-60814

7 parts on this diagram · 1 diagram in section
