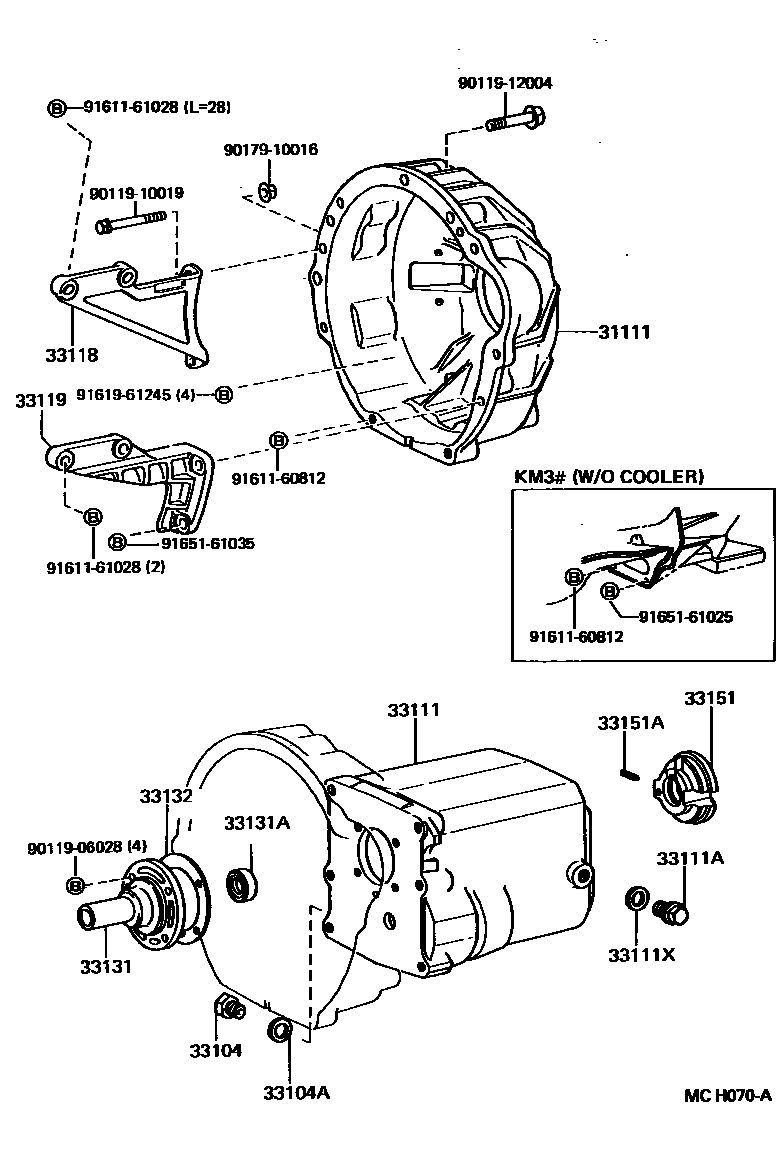

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1L40,L43 0002 1G52,G53 0003 1G52

31111HOUSING, CLUTCH

main31111-20200iCM36..4F198808-199201

main31111-20201iCM36..4F199008-199107

sub31111-20200

main31111-27020iKM36,37..4F,4H198808-199201

main31111-27030iKM36..SRF198808-199804

main31111-28020iYM3#..5F198808-199804

main31111-28030iCM36..5F,5H198808-199804

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iCM36199503-199804

TOYOTA

main90341-18021iCM36198808-199503

AISIN

main90341-18021iKM30,36..MRF..GEN199109-199209

MALAYSIA SPEC,AISIN

main90341-18022iCM36199503-199804

AISIN

main90341-18057iCM36,KM36,YM31..MRF199503-199804

MALAYSIA SPEC

main90341-18057iCM36,KM3#,YM3#..MTM198808-199503

TOYOTA

main90341-18057iKM30,36..MRF..GEN199109-199209

MALAYSIA SPEC,TOYOTA

main90341-18057iYM3#;KM36..SRF199201-199503

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iCM36,KM3#,YM3#..MTM198808-199804

33111CASE, MANUAL TRANSMISSION

main33101-28020iKM36..SRF..05S198808-199209

TOYOTA

sub33101-35060

sub90341-18032

main33101-28020iKM30,36..MRF..GEN199109-199209

MALAYSIA SPEC,TOYOTA

sub33101-35060

sub90341-18032

main33101-28020iCM36,YM35;KM36..SRF199209-199804

sub33101-35060

sub90341-18032

main33101-35060iKM30,36..MRF..GEN198808-199804

AISIN

sub33101-26060

main33101-35060iKM30,36..MRF..GEN199109-199209

MALAYSIA SPEC,AISIN

sub33101-26060

main33111-35031iCM36,KM36,37..4F,4H198808-199201

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iCM36,KM3#,YM3#..MTM198808-199804

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iCM36,KM3#,YM3#..MTM198808-199804

33118PLATE, STIFFENER, RH(MTM)

main33118-12080iKM3#198808-199804

main33118-14033iCM36198808-199804

main33118-28010iYM3#..5F198808-199804

33119PLATE, STIFFENER, LH(MTM)

main33119-12050iKM36..SRF198910-199804

CKD SPEC OR W(FRONT AIR CONDITIONER)

main33119-12050iKM3#..4H,5F198808-199304

main33119-14050iCM36198808-199804

main33119-28010iYM3#198808-199804

33131RETAINER, BEARING, FRONT(MTM)

main33131-20050iCM36,KM36,37..4F,4H198808-199201

main33131-26020iCM36,KM30,36,YM3#..5F,5H198808-199804

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30010iCM36,KM30,36,YM3#..5F,5H198808-199007

sub90311-30014

main90311-30014iCM36,KM30,36,YM3#..5F,5H199007-199804

main90311-32106iCM36,KM36,37..4F,4H198808-199201

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iCM36,KM30,36,YM3#..5F,5H198808-199804

main33132-30030iCM36,KM36,37..4F,4H198808-199201

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-26010iCM36,KM36,37..4F,4H198808-199201

main33151-35030iCM36,KM36,YM3#198808-199804

33151APIN, SLOTTED SPRING(FOR OUTPUT SHAFT REAR BEARING RETAINER)

main90254-05005iCM36,KM36,37..4F,4H198808-199201

9011906028

main90119-06028

9011910019

main90119-10019

9011912004

main90119-12004

9017910016

main90179-10016

9161160812

main91611-60812

9161161028

main91611-61028

9161961245

main91619-61245

9165161025

main91651-61025

9165161035

main91651-61035

22 parts on this diagram · 3 diagrams in section
