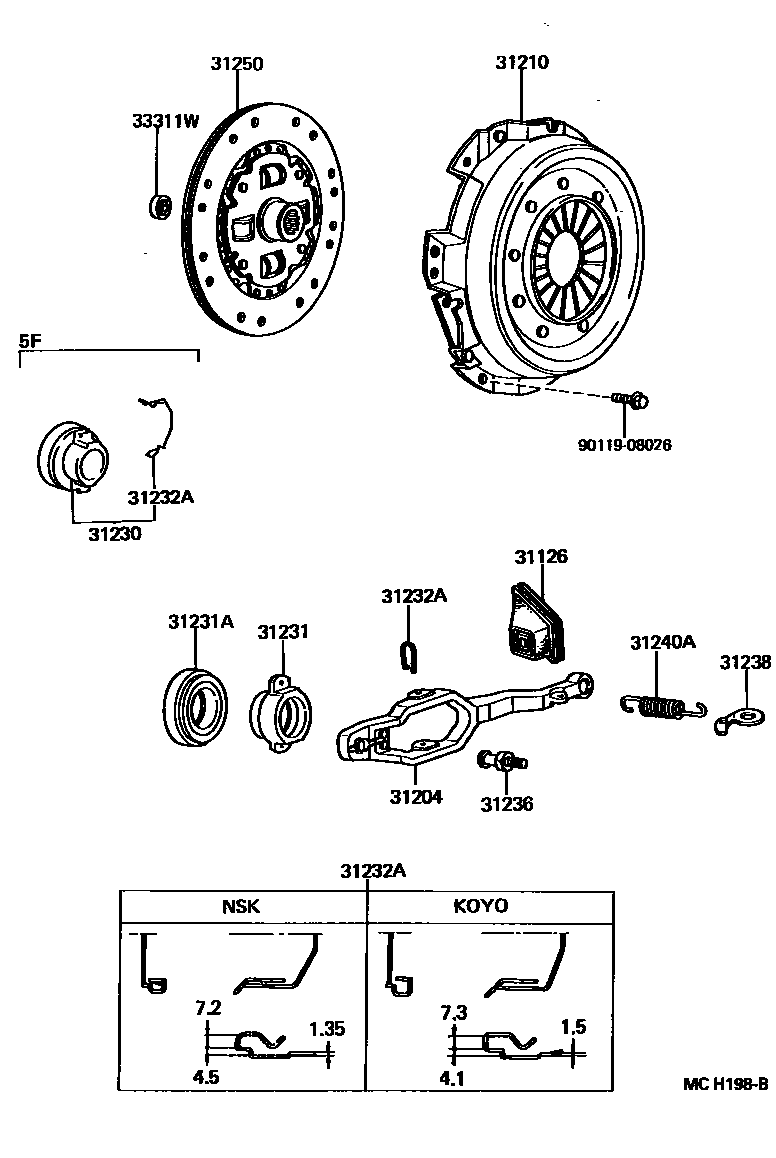

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1

31126BOOT, CLUTCH RELEASE FORK

main31126-0W010iKM36..SRF199608-199804

MALAYSIA SPEC

sub31126-20070

main31126-20060iCM36,YM3#..5F,5H198808-199804

main31126-20070iKM36..SRF198808-199804

main31126-27020iKM36,37..4F,4H198808-199201

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iCM36,YM3#..5F,5H198808-199804

main31204-22040iKM36198808-199804

main31204-27011iKM36,37..4F,4H198808-199201

main31204-35050iCM36..4F198808-199201

31210COVER ASSY, CLUTCH

main31210-12180iKM3#199104-199804

sub31210-12181

main31210-22120iCM36,YM3#..MTM198812-199804

sub31210-22121

main31210-27010iKM3#198808-198907

sub31210-27011

main31210-27011iKM3#198907-199104

sub31210-12180

main31210-35080iCM36,YM3#..MTM198808-198812

sub31210-22120

31230BEARING ASSY, CLUTCH RELEASE

main31230-35090iKM36..5F;CM36,KM30,YM3#..MTM198808-199804

sub31230-35091

31231HUB, CLUTCH RELEASE BEARING

main31231-27030iKM36,37..4F,4H198808-199201

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iKM36,37..4F,4H198808-199201

31232ACLIP, RELEASE BEARING HUB

main31232-30020iKM36,37..4F,4H198808-199201

main31232-35020iCM36,KM30,36,YM3#..MTM..(02S,05S,08S)198911-199804

NSK

main31232-35020iKM36..5F;CM36,YM3#..MTM198808-198911

main31232-35040iCM36,KM30,36,YM3#..MTM..(02S,05S,08S)198911-199804

KOYO

31236BALL, RELEASE FORK

main31236-30060iCM36,KM3#,YM3#..MTM198808-199804

31238HANGER, RELEASE FORK RETRACTING SPRING

main31238-27010iKM36,37..4F,4H198808-199201

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-18311iKM36,37..4F,4H198808-199201

31250DISC ASSY, CLUTCH

main31250-20117iCM36199211-199708

sub31250-20118

main31250-20118iCM36199708-199804

sub31250-28190

main31250-27060iKM3#198808-198908

sub31250-27061

main31250-27061iKM3#198908-199509

sub31250-28140

main31250-27081iCM36198808-199205

sub31250-27082

main31250-27082iCM36199205-199211

sub31250-20117

main31250-28120iYM3#199603-199708

sub31250-28121

main31250-28121iYM3#199708-199804

sub31250-28122

main31250-28140iKM3#199509-199702

sub31250-28141

main31250-28141iKM3#199702-199804

sub31250-28142

main31250-35062iYM3#..5F198808-198812

sub31250-35063

main31250-35063iYM3#..5F198812-199007

sub31250-35064

main31250-35064iYM3#..5F199007-199205

sub31250-35065

main31250-35065iYM3#199205-199603

sub31250-28120

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iYM3#..5F198808-199804

sub90363-12024

main90363-12003iKM3#198808-199804

main90363-12004iCM36198808-199804

9011908026

main90119-08026

13 parts on this diagram · 3 diagrams in section
