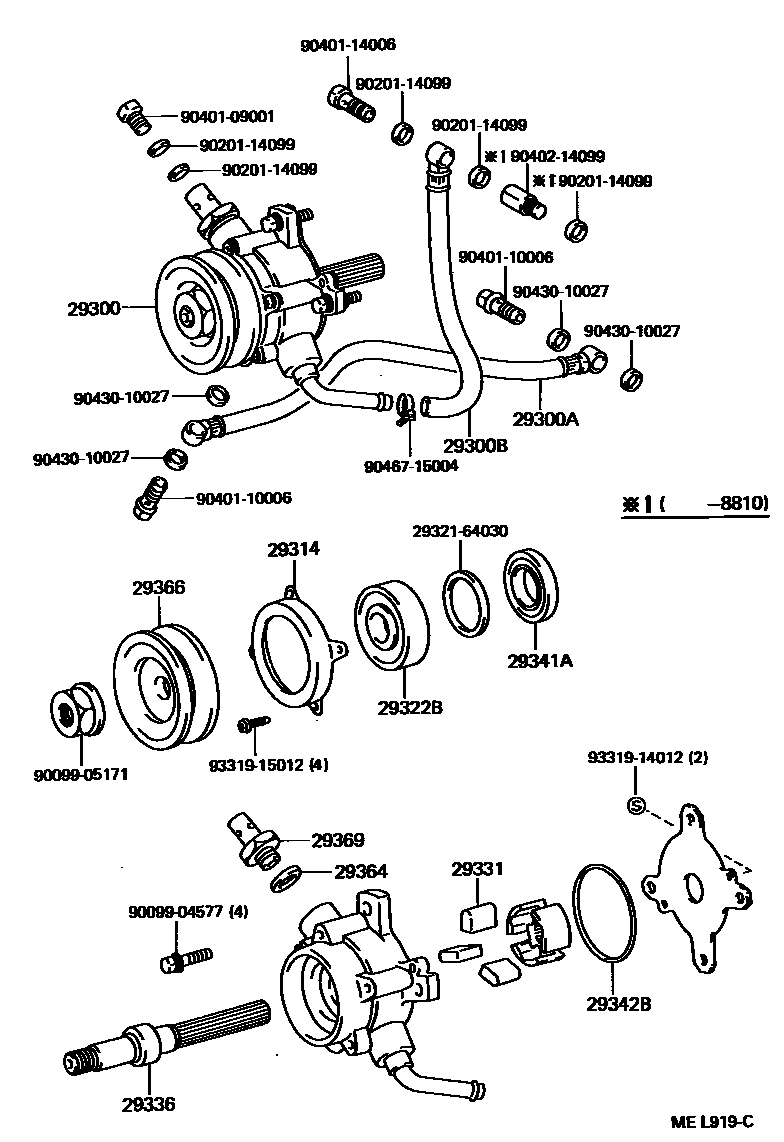

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-64031i2C..CM36198808-199008

main29300-64060i2C..CM36199008-199804

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02099i2C..CM36198808-199804

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-64010i2C..CM36198810-199804

main90923-02102i2C..CM36198808-198810

29314RING, STOP

main29314-64030i2C..CM36198808-199804

29322BBEARING, VACUUM PUMP

main90099-10166i2C..CM36198808-199612

main90099-10199i2C..CM36199612-199804

29331BLADE, VACUUM PUMP, A

main29331-64030i2C..CM36198808-199804

29336SHAFT, VACUUM PUMP

main29336-64030i2C..CM36198808-199008

sub29336-64031

sub90099-10166

main29336-64031i2C..CM36199008-199804

29341ASEAL, OIL

main29341-64030i2C..CM36198808-199804

29342BRING, O

main29342-64030i2C..CM36198808-199804

29364WASHER, VACUUM PUMP

main29364-66010i2C..CM36198808-199804

29366PULLEY, VACUUM PUMP

main29366-64031i2C..CM36198808-199008

main29366-64060i2C..CM36199008-199804

29369VALVE SUB-ASSY, CHECK

main29369-64030i2C..CM36198808-199804

2932164030RING, OIL SEAL STOP, VACUUM PUMP

main29321-64030

9009904577

main90099-04577

9009905171

main90099-05171

9020114099

main90201-14099

9040109001

main90401-09001

9040110006

main90401-10006

9040114006

main90401-14006

9040214099

main90402-14099

9043010027

main90430-10027

9046715004

main90467-15004

9331914012

main93319-14012

9331915012

main93319-15012

24 parts on this diagram · 1 diagram in section
