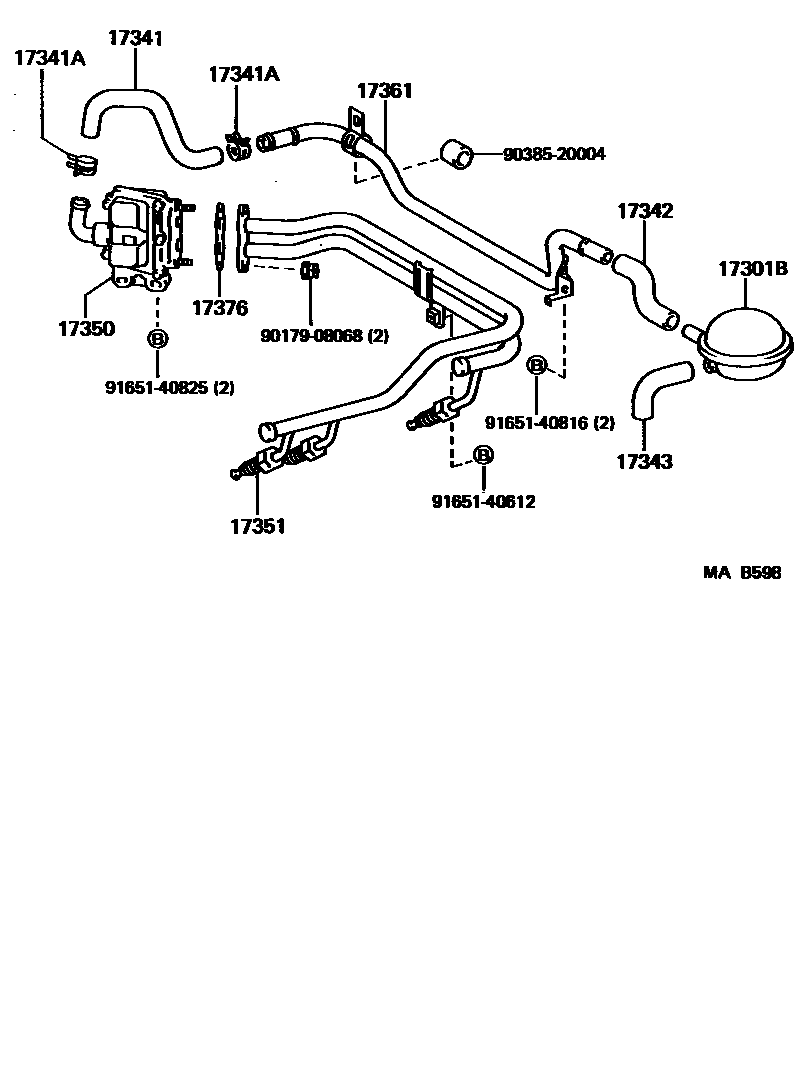

MANIFOLD AIR INJECTION SYSTEM

0001 1 0002 1 0003 1YM35=MALAYSIA SPEC

17301BSILENCER SUB-ASSY, AIR SUCTION

main17301-13020i5KC..KM36198808-199201

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-13050i5KC..KM36198808-199201

main17341-71010i2YC..YM30,35198808-199209

main17341-71010i2Y..YM31199209-199804

MALAYSIA SPEC

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main90467-26001i5KC..KM36198808-199201

sub96134-52600

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-13020i5KC..KM36198808-199201

17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)

main17343-13020i5KC..KM36198808-199201

17350VALVE ASSY, REED

main17350-13080i5KC..KM36198808-199201

main17350-71031i2Y..YM31199209-199406

MALAYSIA SPEC

sub17350-71033

main17350-71033i2Y..YM31199406-199804

MALAYSIA SPEC

17351MANIFOLD, AIR INJECTION

main17306-13050i5KC..KM36198808-199201

main17306-71010i2YC..YM30,35198808-199201

main17351-71020i2Y..YM31199209-199804

MALAYSIA SPEC

17361TUBE, AIR

main17361-13050i5KC..KM36198808-199201

17376GASKET, AIR TUBE, NO.1

main17376-71010i5KC..KM36198808-198912

sub17376-71011

main17376-71011i5KC..KM36198912-199201

9017908068

main90179-08068

9038520004

main90385-20004

9165140612

main91651-40612

9165140816

main91651-40816

9165140825

main91651-40825

14 parts on this diagram · 3 diagrams in section
