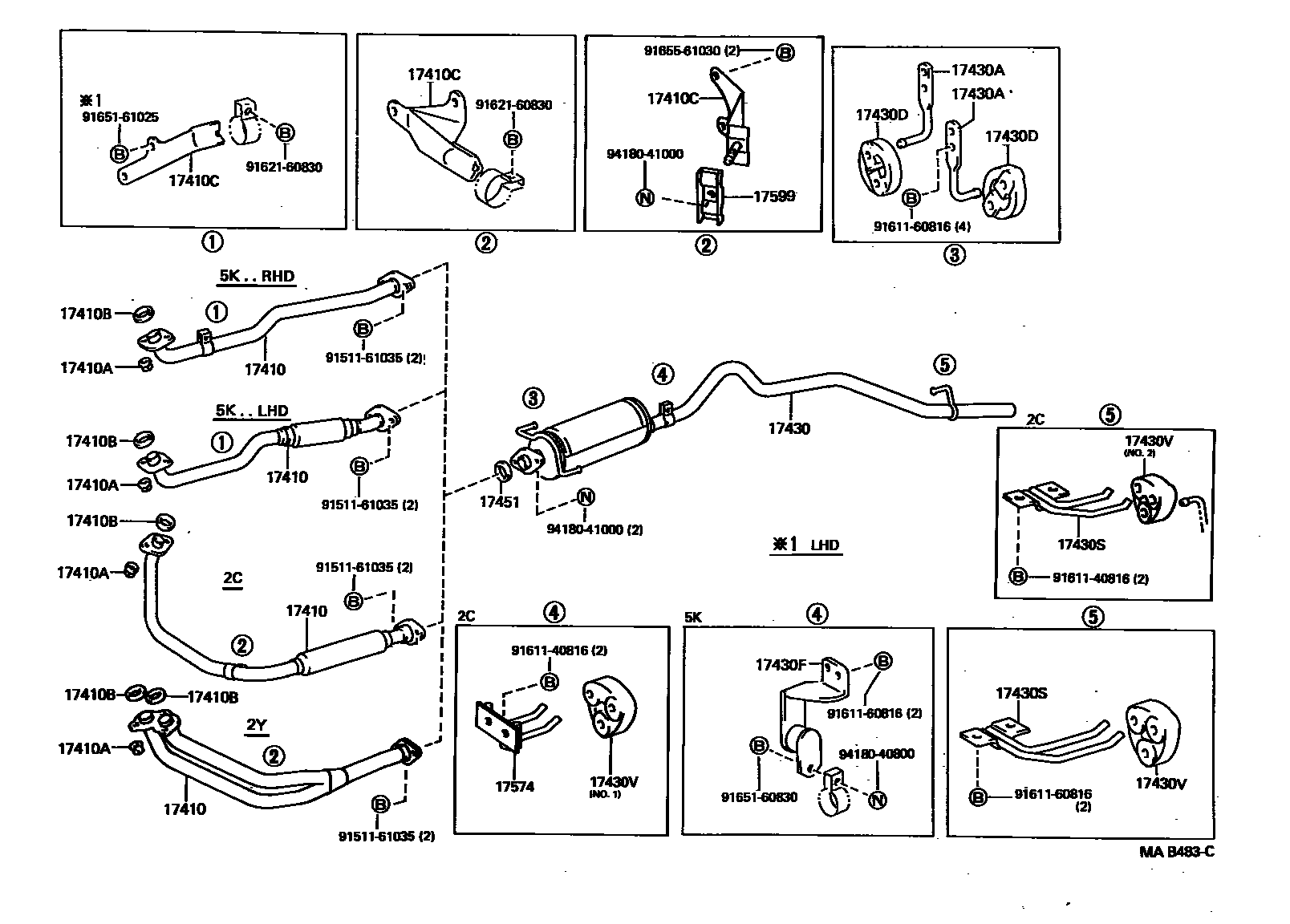

EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-13280i5K..KM36..RHD198808-199804

main17410-13290i5K..KM3#..LHD198808-199804

main17410-13360i5KC..KM36198808-199201

main17410-64370i2C..CM36198808-199804

main17410-72080i2Y..YM31,35198905-199804

main17410-72111i2YC..YM30198808-199201

main17410-72200i2YC..YM35198808-199201

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i2C,5K..CM36,KM3#198808-199804

17410BGASKET, EXHAUST PIPE

main90917-06001i2YC..YM3#198808-198901

sub90917-06038

main90917-06004i2C,5K#..CM36,KM3#198808-199204

sub90917-06039

main90917-06038i2Y#..YM3#198901-199204

main90917-06039i5K#..KM3#198901-199204

main90917-06061i2C,5K..CM36,KM3#199204-199804

main90917-06064i2Y..YM3#199204-199804

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-13160i5K..KM3#198808-199804

main17571-64090i2C..CM36..LHD..4F..05S198808-199201

main17571-64140i2C..CM36..5H;2C..CM36..RHD;2C..CM36..LHD..02S198808-199804

main17571-72040i2Y#..YM3#..VSG198808-199804

main17571-72100i2YC..YM35198808-199201

17430PIPE ASSY, EXHAUST, TAIL

main17430-13250i5K..KM30199001-199804

sub17430-13290

main17430-13361i5K..KM36198808-199804

main17430-13390i5KC,2YC..KM36,YM35198808-199201

main17430-64292i2C..CM36..MRF..5F..GEN199109-199804

main17430-64292i2C..CM36..5F..GEN198808-199108

MALAYSIA SPEC

main17430-64550i2C..CM36..5H;2C..CM36..ARL;2C..CM36..SRF198808-199201

main17430-72140i2Y..YM31199108-199804

MALAYSIA SPEC

main17430-72180i2YC..YM30198808-199001

sub17430-72181

main17430-72181i2YC..YM30199001-199201

main17430-72220i2Y..YM35198905-199804

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17562-13060i2C,5K,2Y..CM36,KM3#,YM31,35198808-199804

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main17563-35020i2C,5K,2Y..CM36,KM3#,YM31,35198808-199804

17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)

main17562-13070i5K..KM3#198808-199804

main17574-13050i5KC,2YC..KM36,YM35198808-199201

NO.1

main17574-72040i2YC..YM35198808-199201

NO.2

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17575-13060i2C..CM36..5F..GEN198808-199108

CKD SPEC

main17575-13060i5K#,2Y#..KM3#,YM31,35;2C..CM36..MRF..5F..GEN198808-199804

main17575-64040i2C..CM36..5H;2C..CM36..ARL;2C..CM36..SRF198808-199201

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main17565-13030i2C,5K,2Y..CM36,KM3#,YM3#198808-199804

main17565-13030i2C..CM36..5F..GEN198808-199108

CKD SPEC

main17565-13030i2C..CM36..5H;2C..CM36..ARL;2C..CM36..SRF198808-199804

NO.1

main17565-13040i2YC..YM30198808-199201

main17565-64130i2C..CM36..5H;2C..CM36..ARL;2C..CM36..SRF198808-199201

NO.2

17451GASKET, EXHAUST PIPE

main90917-06004i2C,5K..CM36,KM3#198808-198901

sub90917-06039

main90917-06020i2YC..YM3#198808-198901

FR

sub90917-06044

main90917-06023i2YC..YM3#198808-198901

RR

sub90917-06041

main90917-06039i2C,5K,2Y..CM36,KM3#,YM31,35198901-199804

main90917-06041i2YC..YM30,35198901-199201

RR

main90917-06044i2YC..YM30,35198901-199201

FR

17574BRACKET, EXHAUST PIPE SUPPORT, NO.4

main17574-64060i2C..CM36..5H;2C..CM36..ARL;2C..CM36..SRF198808-199201

17599HOLDER, EXHAUST PIPE SUPPORT STOPPER

main17599-71010i2Y#..YM3#198808-199804

9151161035

main91511-61035

9161140816

main91611-40816

9161160816

main91611-60816

9162160830

main91621-60830

9165160830

main91651-60830

9165161025

main91651-61025

9165561030

main91655-61030

9418040800

main94180-40800

9418041000

main94180-41000

22 parts on this diagram · 3 diagrams in section
