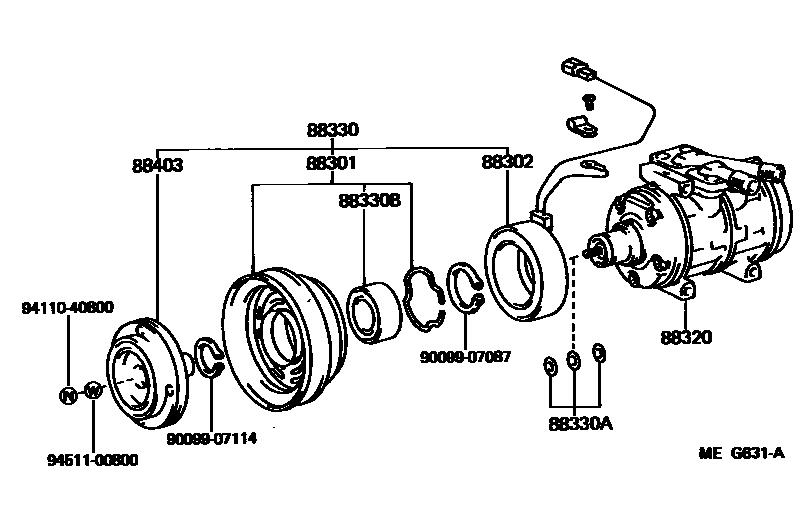

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-20070iCM3#198509-198808

main88412-22030iKM36..RHD..4H198509-198808

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iKM36..RHD..4H198509-198808

88320COMPRESSOR ASSY, COOLER

main88320-27060iYM30,35,4#198509-198808

main88320-27070iKM36..RHD..4H198509-198808

main88320-27090iKM37198509-198808

sub88320-27091

main88320-28040iCM3#198509-198808

88330CLUTCH ASSY, MAGNET

main88410-14120iCM3#198509-198808

main88410-22080iKM36..RHD..4H198509-198808

sub88410-60140

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iKM36..RHD..4H198509-198808

88330BBEARING, MAGNET CLUTCH

main90099-10133iCM3#198509-198808

main90099-10162iKM36..RHD..4H198509-198808

sub90099-10133

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iKM36..RHD..4H198509-198808

9009907087

main90099-07087

9009907114

main90099-07114

9411040800

main94110-40800

9451100800

main94511-00800

11 parts on this diagram · 5 diagrams in section
