HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

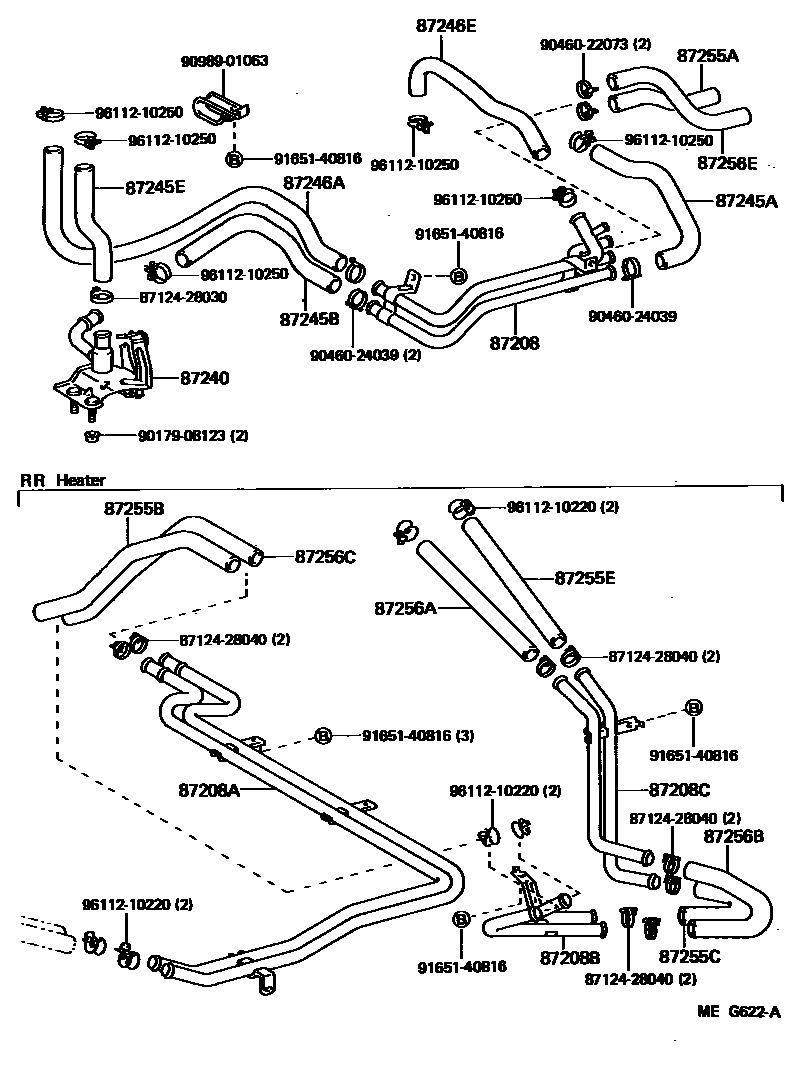

87208PIPE SUB-ASSY, HEATER WATER

main87208-95717iKM36..RHD..4H198509-198808

main87208-95718iKM36..06S..ARL198509-198808

W/RR HEATER

main87208-95719iKM3#..LHD198509-198808

main87208-95720iKM37198509-198808

W/RR HEATER

main87208-95732iYM30,4#..ARL198509-198808

87208APIPE SUB-ASSY, HEATER WATER, A

main87208-95725iKM36..06S..ARL198509-198510

main87208-95727iKM37198509-198808

main87208-95738iKM36..06S..ARL198510-198808

87208BPIPE SUB-ASSY, HEATER WATER, B

main87208-95728iKM36..06S..ARL198509-198808

87208CPIPE SUB-ASSY, HEATER WATER, C

main87208-95730iKM36,YM41..MRF198509-198808

87240VALVE ASSY, HEATER WATER

main87240-95707iYM30..ARL;CM3#,YM31,35,4#198509-198808

87245AHOSE, HEATER WATER, INLET A

main87245-95734iKM36..RHD..4H198509-198808

main87245-95735iKM37198509-198808

W/RR HEATER

main87245-95736iCM3#198509-198808

main87245-95737iYM31;YM30,35,4#..ARL198509-198808

main99556-30500iKM3#..LHD198509-198808

*H,L=420

87245BHOSE, HEATER WATER, INLET B

main99556-30300iYM30..ARL;CM3#,YM31,35,4#198509-198802

*H,L=250

main99556-30980iYM30..ARL;CM3#,YM31,35,4#198509-198808

*H,L=740

sub99556-31000

87245EHOSE, HEATER WATER, INLET E

main99556-30180iYM30..ARL;CM35,YM31,35,4#198509-198808

sub99556-30200

87246AHOSE, HEATER WATER, OUTLET A

main99556-30980iYM30..ARL;CM35,YM31,35,4#198509-198808

*H,L=820

sub99556-31000

main99556-30980iKM36..RHD..4H198509-198808

*H,L=840

sub99556-31000

87246EHOSE, HEATER WATER, OUTLET E

main87245-95732iKM36..RHD..4H198509-198808

main87245-95733iKM3#..LHD198509-198808

main87245-95739iCM3#198509-198808

main87245-95740iYM31;YM30,35,4#..ARL198509-198808

87255AHOSE, REAR HEATER WATER INLET, A(FROM ENGINE)

main87245-95738iYM30,4#..ARL198509-198808

main87245-95748iKM37198509-198808

sub87245-95J35

main87245-95754iKM36..06S..ARL198510-198808

sub87245-95J35

87255BHOSE, REAR HEATER WATER INLET, B

main87245-95742iKM36..06S..ARL198509-198808

87255CHOSE, REAR HEATER WATER INLET, C

main87245-95749iKM36,YM41..MRF198509-198808

87255EHOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)

main87245-95744iKM36,YM41..MRF198509-198706

sub99556-20200

main87245-95745iYM30,40..ARL198509-198808

sub87245-95J36

main87245-95746iKM37198509-198808

sub87245-95J36

main99556-20200iKM36,YM41..MRF198706-198808

*H,L=130

87256AHOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)

main99556-20200iKM36,YM41..MRF198509-198808

*H,L=130

main99556-20700iKM37198509-198706

L=700

main99556-20700iYM30,40..ARL198509-198808

*H,L=600

main99556-20700iKM37198706-198808

*H,L=680

87256BHOSE, REAR HEATER WATER OUTLET, B

main87245-95750iKM36,YM41..MRF198509-198808

87256CHOSE, REAR HEATER WATER OUTLET, C

main87245-95743iKM36..06S..ARL198509-198808

main87245-95751iYM30,4#..ARL198509-198808

87256EHOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)

main87245-95753iYM30,4#..ARL198509-198808

main99556-20300iKM3#..MRF198509-198808

*H,L=300

8712428030CLAMP, HEATER

main87124-28030

8712428040CLAMP, HEATER

main87124-28040

9017908123

main90179-08123

9046022073

main90460-22073

9046024039

main90460-24039

9098901063

main90989-01063

9165140816

main91651-40816

9611210220

main96112-10220

9611210250

main96112-10250

27 parts on this diagram · 4 diagrams in section
