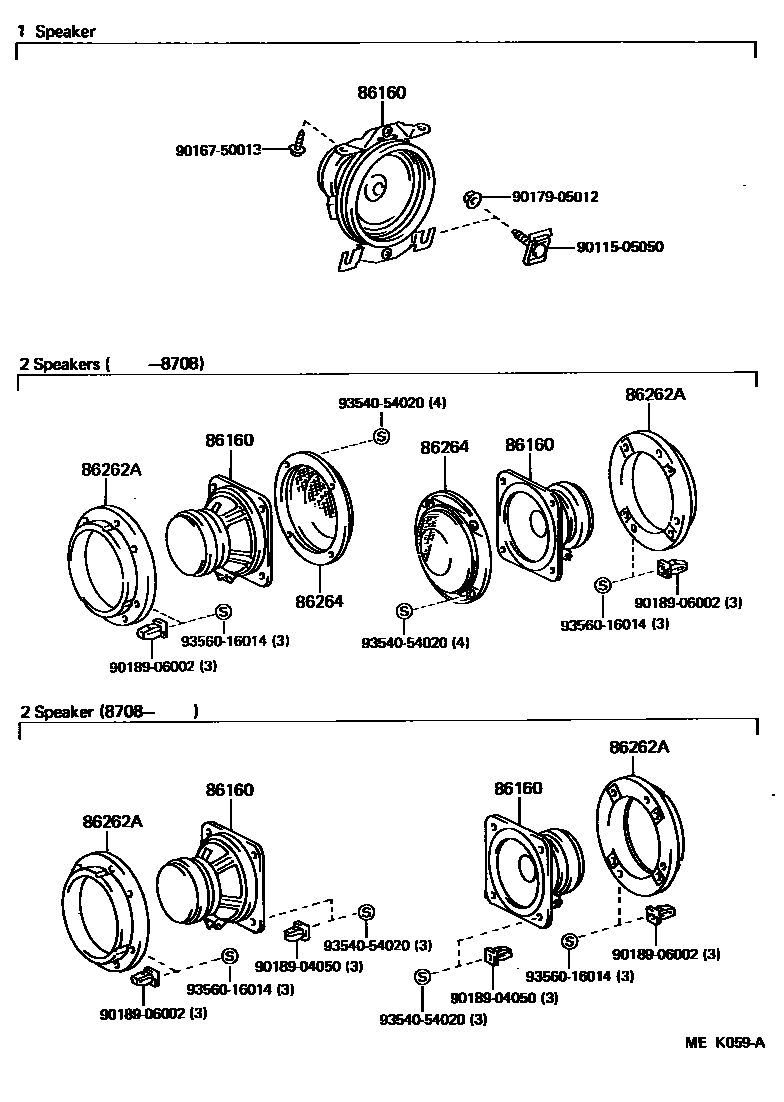

SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-95716iCM35,KM36,YM30,35,4#..ARL198509-198808

1 SPEAKER

main86160-95722iYM30..ARL;CM3#,KM3#,YM35,4#198509-198808

2 SPEAKERS

86262ACOVER, SPEAKER, FRONT

main86262-95704iYM30..ARL;CM3#,KM3#,YM35,4#198509-198808

86264GRILLE, SPEAKER, FRONT

main86269-95716iYM30..ARL;CM35,KM3#,YM35,4#198509-198708

9011505050

main90115-05050

9016750013

main90167-50013

9017905012

main90179-05012

9018904050

main90189-04050

9018906002

main90189-06002

9354054020

main93540-54020

9356016014

main93560-16014

10 parts on this diagram · 1 diagram in section
