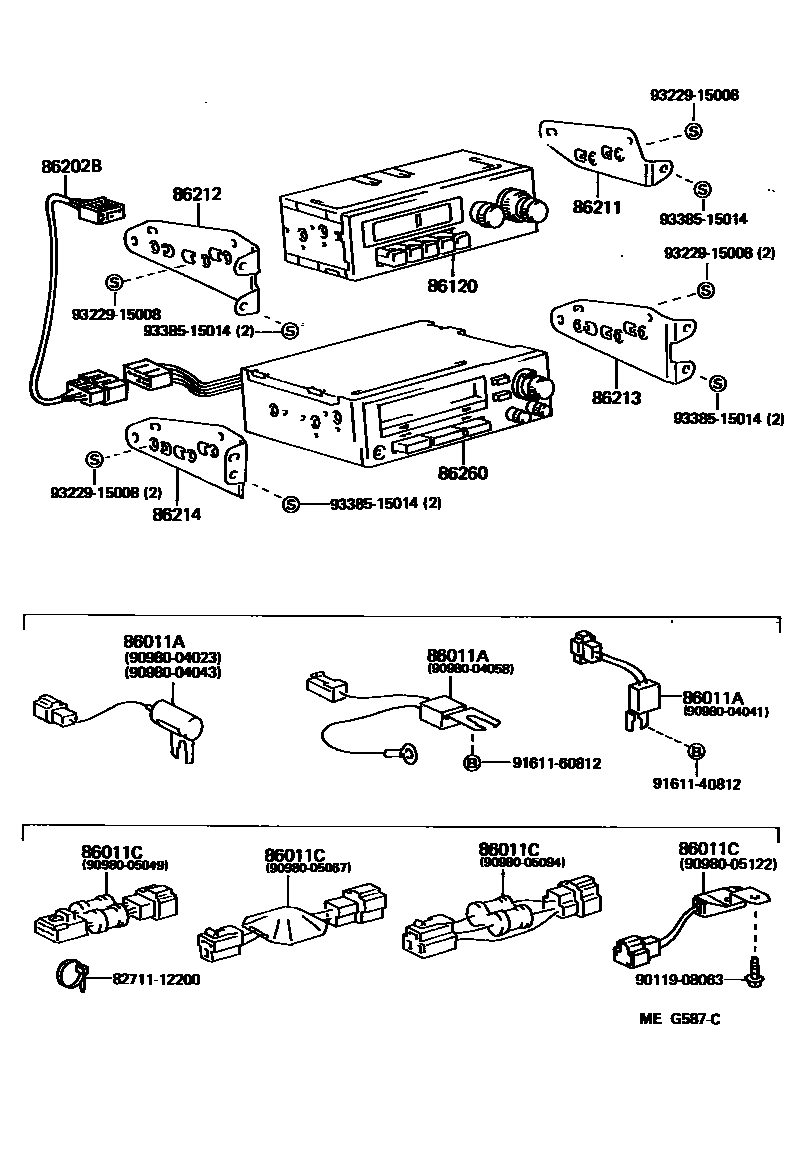

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011ACONDENSER, RADIO SETTING

main90980-04023iKM3#198509-198705

REGULATOR

sub90980-04043

main90980-04041iYM3#,4#198509-198808

main90980-04043iKM3#198705-198808

REGULATOR

main90980-04058iKM3#198509-198808

I.G. COIL

86011CFILTER, NOISE

main90980-05049iKM36,YM35,40..MRF198509-198808

WIPER MOTOR

main90980-05067iCM3#,KM3#,YM30,35,4#198509-198808

STOP LAMP SW

main90980-05094iCM3#,KM3#,YM30,35,4#198509-198808

FLASHER

main90980-05122iKM3#..LHD198512-198808

W/MW/SW RADIO

86120RECEIVER ASSY, RADIO

main86120-14392iKM36..4H198509-198608

MW/SW

main86120-14421iCM35,KM36,YM30,31..GEN198509-198608

AM

sub86120-10260

sub86203-20180

main86120-14431iCM35..RHD..GEN198509-198608

AM/FM

main86120-14461iKM36,YM30,35,4#..MRF..ARL198603-198608

AM/FM MPX

sub86120-16430

sub86203-20180

main86120-16350iCM35,KM36,YM35,41..ARL198608-198808

FUJITSU TEN,AM

sub86120-10290

main86120-16430iKM36,YM30,35,4#..MRF..ARL198608-198808

FUJITSU TEN,AM/FM MPX

main86120-16460iKM36..4H..GEN;CM3#,KM37..GEN198608-198808

MATSUSHITA,ID=5108,MW/SW

main86120-16470iCM3#..RHD..GEN198608-198808

FUJITSU TEN,AM/FM

86202BWIRE, TAPE PLAYER

main86203-95713iCM35,KM36,YM30,35,4#..ARL198509-198608

main86203-95715iCM3#,KM3#..GEN198608-198808

86211BRACKET, RADIO, NO.1

main86215-95700iCM35,KM3#,YM3#,4#198509-198808

86212BRACKET, RADIO, NO.2

main86212-95704iCM35,KM3#,YM3#,4#198509-198808

86213BRACKET, RADIO, NO.3

main86211-95712iCM35,KM36,YM3#,4#..RHD198509-198808

main86211-95713iCM35,KM3#..LHD198509-198808

86214BRACKET, RADIO, NO.4

main86212-95704iCM35,KM3#..LHD198509-198808

main86212-95705iCM35,KM36,YM3#,4#..RHD198509-198808

86260TAPE PLAYER ASSY

main86260-16140iCM3#,KM3#..GEN198608-198808

main86260-19015iCM35,KM36,YM30,35,4#..ARL198509-198608

sub86260-90B09

sub86203-16100

sub86203-20180

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9011908063

main90119-08063

9098004023

main90980-04023

9098004041

main90980-04041

9098004043

main90980-04043

9098004058

main90980-04058

9098005049

main90980-05049

9098005067

main90980-05067

9098005094

main90980-05094

9098005122

main90980-05122

9161140812

main91611-40812

9161160812

main91611-60812

9322915008

main93229-15008

9338515014

main93385-15014

23 parts on this diagram · 2 diagrams in section
