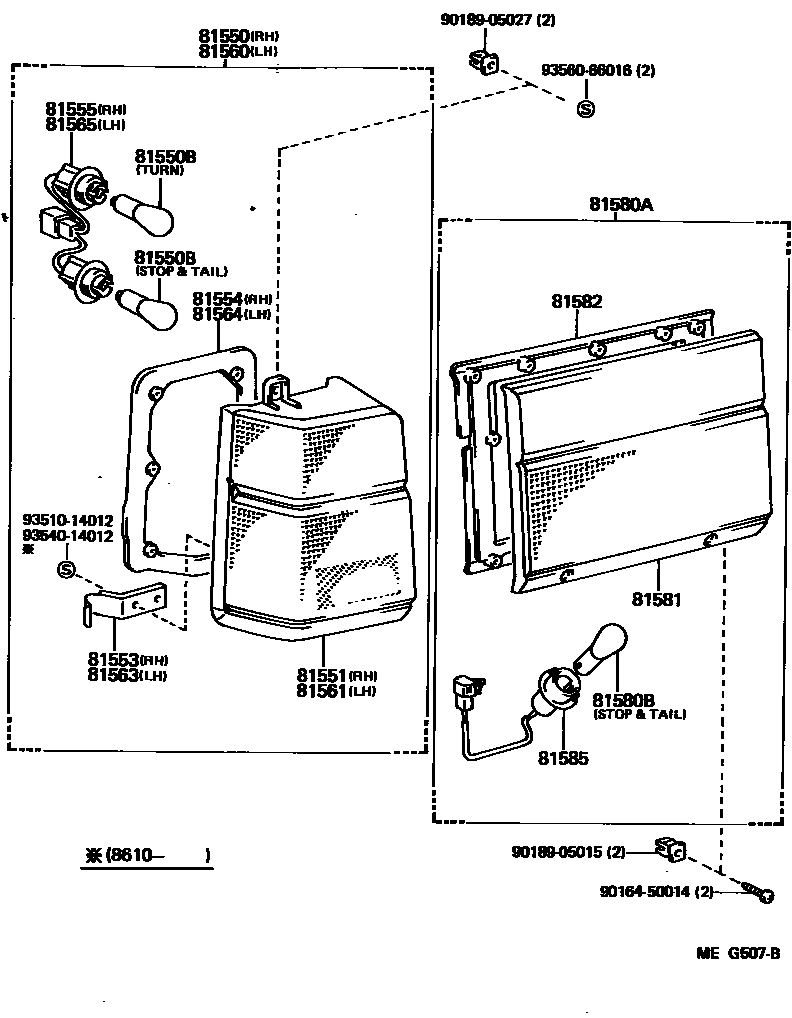

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-95707iCM3#,KM3#,YM3#,4#198509-198808

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11230iCM3#,KM3#,YM3#,4#198509-198808

12V 23W,12V 23W(TURN)

main99132-21210iCM3#,KM3#,YM3#,4#198509-198808

12V 21/5W,12V 21/5W(STOP & TAIL)

81551LENS, REAR COMBINATION LAMP, RH

main81551-95707iCM3#,KM3#,YM3#,4#198509-198808

81553BRACKET, REAR COMBINATION LAMP, NO.1 RH

main81556-95707iCM3#,KM3#,YM3#,4#198509-198808

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-95707iCM3#,KM3#,YM3#,4#198509-198808

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-95707iCM3#,KM3#,YM3#,4#198509-198808

81560LAMP ASSY, REAR COMBINATION, LH

main81560-95707iCM3#,KM3#,YM3#,4#198509-198808

81561LENS, REAR COMBINATION LAMP, LH

main81561-95707iCM3#,KM3#,YM3#,4#198509-198808

81563BRACKET, REAR COMBINATION LAMP, NO.1 LH

main81556-95707iCM3#,KM3#,YM3#,4#198509-198808

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81564-95707iCM3#,KM3#,YM3#,4#198509-198808

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-95707iCM3#,KM3#,YM3#,4#198509-198808

81580ALAMP ASSY, REAR

main81550-95709iYM40198601-198808

RH

main81560-95709iYM40198601-198808

LH

81580BBULB (FOR REAR LAMP)

main99132-21210iYM40198601-198808

12V 21/5W

81581LENS, REAR LAMP

main81551-95709iYM40198601-198808

RH

main81561-95709iYM40198601-198808

LH

81582GASKET, REAR LAMP

main81554-95709iYM40198601-198808

RH

main81564-95709iYM40198601-198808

LH

81585SOCKET & WIRE, REAR LAMP

main81555-95709iYM40198601-198808

9016450014

main90164-50014

9018905015

main90189-05015

9018905027

main90189-05027

9351014012

main93510-14012

9354014012

main93540-14012

9356066016

main93560-66016

22 parts on this diagram · 1 diagram in section
