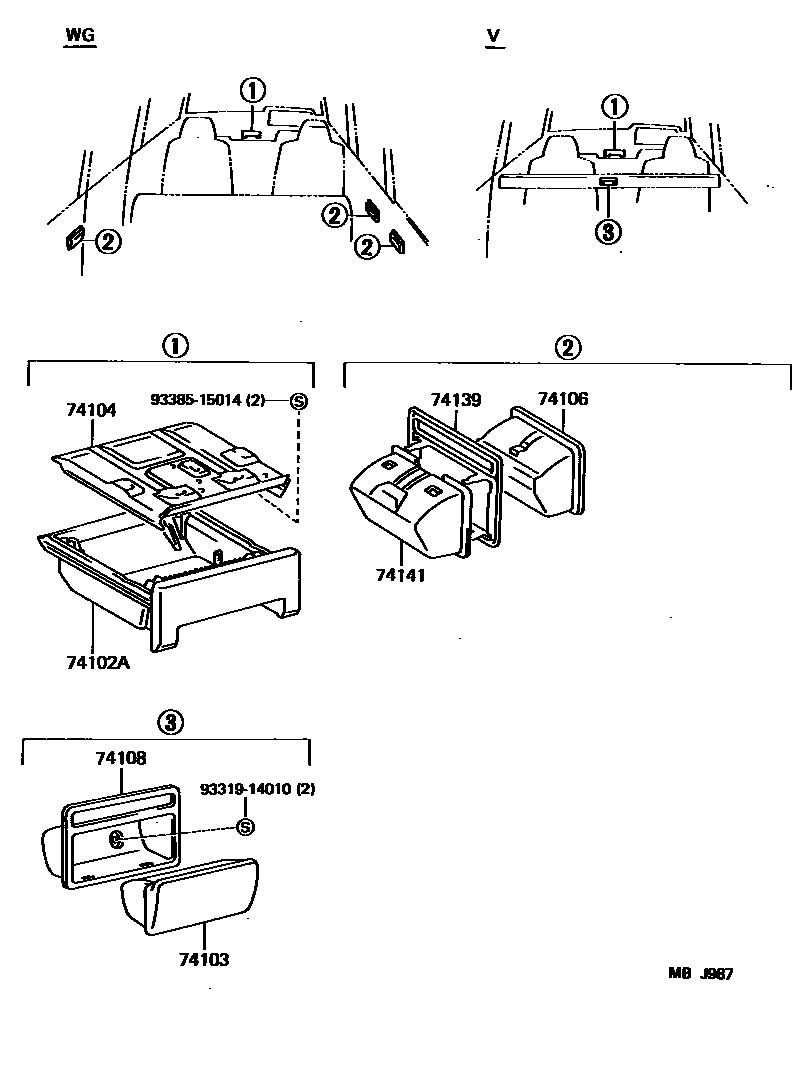

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-95702-04iYM30,40198509-198808

BLUE,BLUE

sub74102-95703

sub74102-95702

main74102-95702-06iCM3#,KM3#,YM3#,4#198509-198808

BROWN,BROWN

sub74102-95703

sub74102-95702

74103RECEPTACLE SUB-ASSY, ASH, NO.1

main74105-10010-26iKM36..RHD..06S..GEN198509-198808

BROWN,BROWN

sub74105-10010

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-95710iCM3#,KM3#,YM3#,4#198509-198808

74106RECEPTACLE SUB-ASSY, ASH, NO.2

main74105-10010-26iKM36..LHD..06S;KM36..06S..ARL;CM3#,KM36,YM31,41..05S198509-198808

BROWN,BROWN

sub74105-10010

main74105-10010-34iYM30,40198509-198808

BLUE,BLUE

sub74105-10010

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74141-95550iKM36..RHD..06S..GEN198509-198808

74139RETAINER, REAR ASH RECEPTACLE, OUTER

main74135-10030iKM36..LHD..06S;KM36..06S..ARL;CM3#,KM36,YM31,41..05S198509-198808

74141RETAINER, REAR ASH RECEPTACLE, INNER

main74137-10030iKM36..LHD..06S;KM36..06S..ARL;CM3#,KM36,YM31,41..05S198509-198808

9331914010

main93319-14010

9338515014

main93385-15014

9 parts on this diagram · 1 diagram in section
