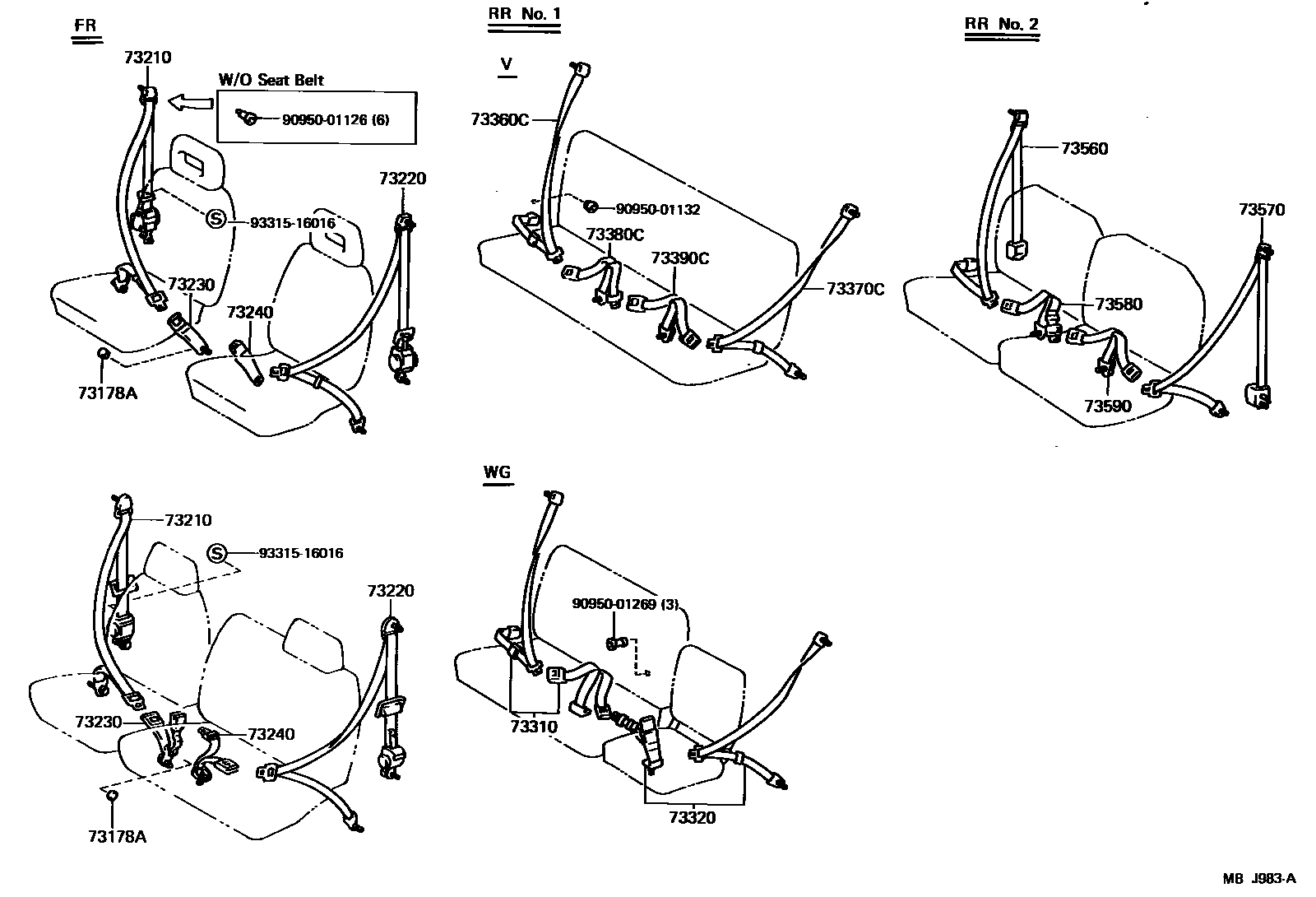

SEAT BELT
73178ACAP, SEAT BELT ANCHOR COVER
73210BELT ASSY, FRONT SEAT OUTER, RH
BROWN,BROWN
*ELR,BLUE,BLUE
*ELR,BROWN,BROWN
W/CENTER SEAT BELT,BROWN,BROWN
BLUE,BLUE
BROWN,BROWN
73220BELT ASSY, FRONT SEAT OUTER, LH
BROWN,BROWN
*ELR,BLUE,BLUE
*ELR,BROWN,BROWN
W/CENTER SEAT BELT,BROWN,BROWN
BLUE,BLUE
BROWN,BROWN
73230BELT ASSY, FRONT SEAT INNER, RH
BROWN,BROWN
BROWN,BROWN
BLUE,BLUE
BROWN,BROWN
73240BELT ASSY, FRONT SEAT INNER, LH
BROWN,BROWN
BROWN,BROWN
BLUE,BLUE
BROWN,BROWN
BROWN,BROWN
73310BELT ASSY, REAR SEAT 3 POINT TYPE, RH
BLUE,BLUE
BROWN,BROWN
BLUE,BLUE
BROWN,BROWN
73320BELT ASSY, REAR SEAT 3 POINT TYPE, LH
BLUE,BLUE
BROWN,BROWN
BLUE,BLUE
BROWN,BROWN
73360CBELT ASSY, REAR NO.1 SEAT, OUTER RH
73370CBELT ASSY, REAR NO.1 SEAT, OUTER LH
73380CBELT ASSY, REAR NO.1 SEAT, INNER RH
BROWN,BROWN
73390CBELT ASSY, REAR NO.1 SEAT, INNER LH
BROWN,BROWN
73560BELT ASSY, REAR NO.2 SEAT, OUTER RH
BLUE,BLUE
BROWN,BROWN
73570BELT ASSY, REAR NO.2 SEAT, OUTER LH
BLUE,BLUE
BROWN,BROWN
73580BELT ASSY, REAR NO.2 SEAT, INNER RH
BLUE,BLUE
BROWN,BROWN
73590BELT ASSY, REAR NO.2 SEAT, INNER LH
BLUE,BLUE
BROWN,BROWN
9095001126
main90950-01126
9095001132
main90950-01132
9095001269
main90950-01269
9331516016
main93315-16016
19 parts on this diagram · 1 diagram in section
