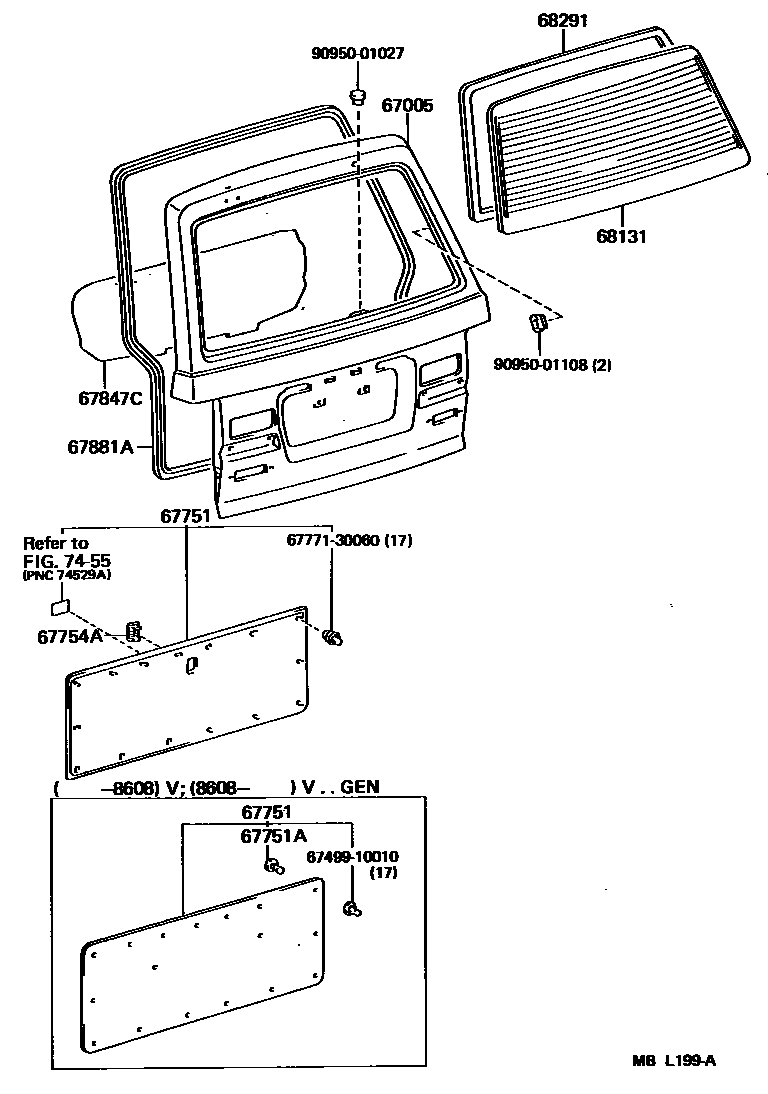

BACK DOOR PANEL & GLASS

67005PANEL SUB-ASSY, BACK DOOR

main67005-95784iKM36..03S..ARL198509-198808

W/RR WIPER

sub67005-95G41

main67005-95788iCM35,KM3#,YM35..MRF198509-198808

W/RR WIPER

sub67005-95G37

main67005-95G02iKM37..SRF198509-198808

sub67005-95G43

main67005-95G06iCM35,KM37,YM35..MRF198509-198808

sub67005-95G44

main67005-95G10iYM30..GEN198509-198808

main67005-95G12iYM40198601-198808

main67005-95G13iKM36..05S198509-198712

sub67005-95G57

sub90119-06469

main67005-95G13iCM36198709-198712

CKD SPEC

sub67005-95G57

sub90119-06469

main67005-95G13iCM35..RHD..05S198509-198709

MALAYSIA SPEC

sub67005-95G57

sub90119-06469

main67005-95G14iCM35..RHD..05S198509-198712

MALAYSIA SPEC,W/*DEF

sub67005-95G58

sub90119-06469

main67005-95G15iYM31198509-198808

sub67005-95G59

sub90119-06469

main67005-95G15iCM3#..RHD..05S198602-198712

W/RR WIPER

sub67005-95G59

sub90119-06469

main67005-95G28iKM36..05S198712-198808

CKD SPEC

sub67005-95G57

main67005-95G29iCM36198712-198808

CKD SPEC,W/*DEF

sub67005-95G58

main67005-95G30iKM36..DLX198712-198808

W/RR WIPER

sub67005-95G59

67751BOARD, BACK DOOR TRIM

main67750-95700-06iKM37198509-198808

BROWN,BROWN

sub67750-95704

main67750-95701-06iCM35,KM36,YM35..VSP..ARL198608-198808

BROWN,SABLE

main67750-95702-06iCM3#,KM36..STD..GEN198509-198808

BROWN,SABLE

main67750-95704-04iYM30,40198509-198808

W/RR WIPER,BLUE,BLUE

sub67750-95704

main67750-95704-06iKM37,YM30,40198509-198808

W/RR WIPER,BROWN,BROWN

sub67750-95704

main67750-95705-06iCM35,KM36,YM35,41..ARL198608-198808

W/RR WIPER,BROWN,BROWN

sub67750-95705

main67750-95706-06iYM31,41198509-198808

BROWN,BROWN

sub67750-95706

main67750-95706-06iCM35,KM36,YM35..ARL198509-198808

W/RR WIPER,BROWN,BROWN

sub67750-95706

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-07037-16iCM35,KM36,YM31,35198509-198610

BROWN,BROWN

sub90467-07037

sub90467-07054

main90467-07054-06iCM3#,KM36,YM35198610-198808

BROWN,SABLE

sub90467-07054

67754ACOVER, BACK DOOR HOLE

main55528-30020-06iKM36..DLX198509-198808

BROWN,BROWN

sub55528-30020

main55528-30020-24iYM30,40198509-198808

BLUE,BLUE

sub55528-30020

67847CCOVER, BACK DOOR SERVICE HOLE, NO.1

main67847-95700iCM35,KM36,YM35..ARL198509-198808

W/RR WIPER

main67847-95700iKM37,YM30,31,4#198509-198808

main67847-95701iCM35,KM36,YM35..VSP..ARL198509-198808

67881AWEATHERSTRIP, BACK DOOR

main67881-95702iCM3#,KM3#,YM31..SRF198509-198808

sub67881-95704

main67881-95703iCM35,KM3#,YM30,35,4#..MRF198509-198808

sub67881-95705

68131GLASS, BACK DOOR

main68131-95712iKM36..DLX;KM36..SRF..4H;CM35,YM31..SRF198509-198808

*EHT,T=4.0,*EHT,T=4.0

main68131-95713iCM35..05S;KM36..06S..GEN198509-198808

*EHTT,T=4.0,*EHTT,T=4.0

sub68131-95726

main68131-95714iCM3#,KM3#..SRF198509-198808

*TEM,T=4.0,*TEM,T=4.0

sub68131-95715

main68131-95715iCM35..05S;KM36..06S..GEN198509-198808

*TT,T=4.0,*TT,T=4.0

main68131-95716iCM35,KM3#,YM30,35,4#..MRF198509-198808

*EHT,T=4.0,*EHT,T=4.0

main68131-95717iKM3#,YM30,4#..MRF198509-198808

*EHTT,T=4.0,*EHTT,T=4.0

sub68131-95728

main68131-95719iCM35,KM37,YM35..MRF198509-198808

*TEM,T=4.0,*TEM,T=4.0

main68131-95720iKM37198509-198808

*TT,T=4.0,*TT,T=4.0

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-95706iCM3#,KM36,YM31..SRF198509-198808

main68291-95708iCM35,KM3#,YM30,35,4#..MRF198509-198808

7455

6749910010RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-10010

6777130060WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30060

9095001027

main90950-01027

9095001108

main90950-01108

13 parts on this diagram · 1 diagram in section
