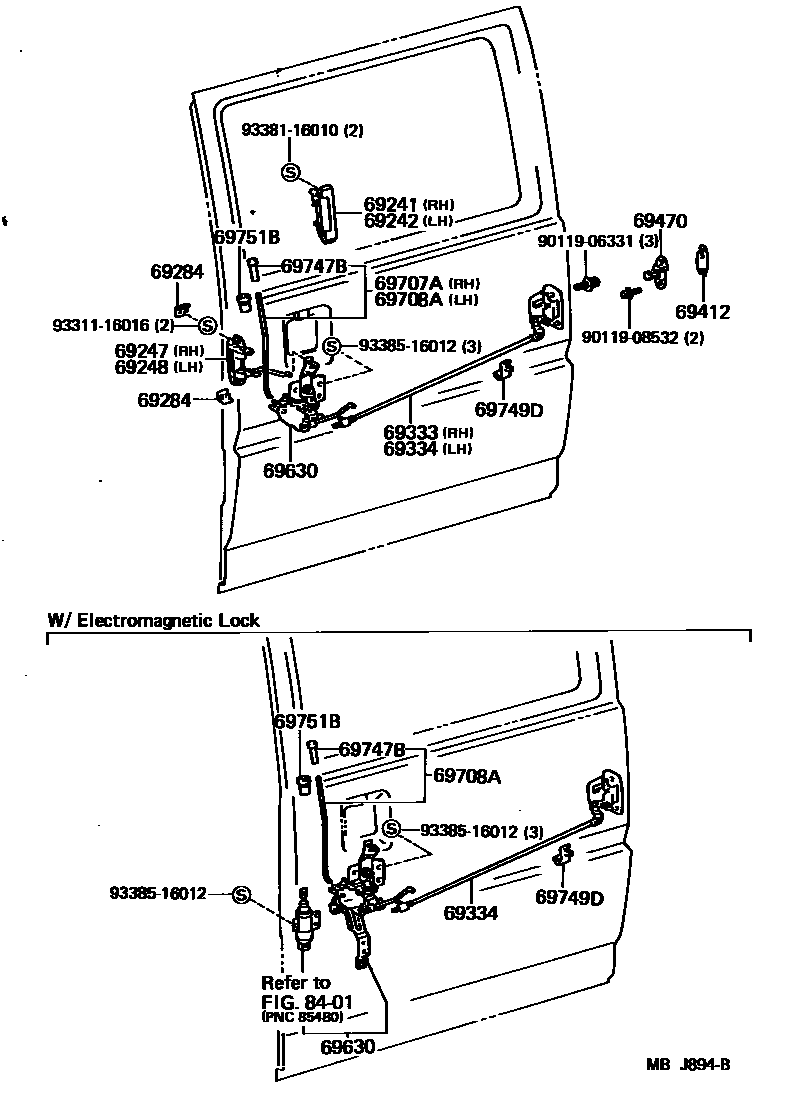

REAR DOOR LOCK & HANDLE

69241HANDLE ASSY, SLIDE DOOR OUTSIDE, RH

main69230-87003iKM36..V5D;CM35,KM3#..LHD..(02S,05S,06S,09S)198509-198802

main69230-95J00iKM36..V5D;CM35,KM3#..LHD..(02S,05S,06S,09S)198802-198808

69242HANDLE ASSY, SLIDE DOOR OUTSIDE, LH

main69240-87002iKM36..03S,05S;KM36..RHD..06S;CM3#,YM3#,4#..RHD198509-198802

main69240-95J00iKM36..03S,05S;KM36..RHD..06S;CM3#,YM30,35,40..RHD198802-198808

69247HANDLE, SLIDE DOOR INSIDE, RH

main69070-95700-06iKM36..V5D;CM35,KM3#..LHD..(02S,05S,06S,09S)198509-198808

BROWN,BROWN

69248HANDLE, SLIDE DOOR INSIDE, LH

main69080-95700-04iYM30,40198509-198808

BLUE,BLUE

sub69080-95700

main69080-95700-06iKM36..03S,05S;KM36..RHD..06S;CM3#,YM3#,4#..RHD198509-198808

BROWN,BROWN

sub69080-95700

69284PLUG, SLIDE DOOR INSIDE HANDLE

main69284-87001-04iYM30,40198509-198808

BLUE,BLUE

main69284-87001-06iYM30,40198509-198808

BROWN,BROWN

69333LOCK ASSY, SLIDE DOOR, RH

main69330-95702iKM36..V5D;CM35,KM3#..LHD..(02S,05S,06S,09S)198509-198808

69334LOCK ASSY, SLIDE DOOR, LH

main69340-95702iKM36..03S,05S;KM36..RHD..06S;CM3#,YM3#,4#..RHD198509-198808

69412SHIM, DOOR LOCK STRIKER

main69413-87002iKM36..V4D;CM3#,KM37,YM3#,4#198509-198808

sub69413-28020

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-95701iKM36..V4D;CM3#,KM37,YM3#,4#198509-198808

69630CONTROL ASSY, SLIDE DOOR LOCK REMOTE

main69630-95706iKM36..V5D;CM35,KM3#..LHD..(02S,05S,06S,09S)198509-198808

RH

main69640-95706iCM35..RHD..05S;KM36..RHD..06S..GEN198509-198808

W/*EL,LH

main69640-95706iCM36198709-198808

main69640-95707iKM36..03S,05S;KM36..RHD..06S;CM3#,YM3#,4#..RHD198509-198808

LH

69707AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, RH

main69707-95700-06iKM36..V5D;CM35,KM3#..LHD..(02S,05S,06S,09S)198509-198808

BROWN,BROWN

69708AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, LH

main69708-95700-04iYM30,40198509-198808

BLUE,BLUE

main69708-95700-06iKM36..03S,05S;KM36..RHD..06S;CM3#,YM3#,4#..RHD198509-198808

BROWN,BROWN

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69741-95703-04iYM30,40198509-198808

BLUE,BLUE

sub69741-95703

main69741-95703-06iKM36..V4D;CM3#,KM37,YM3#,4#198509-198808

BROWN,BROWN

sub69741-95703

69749DCLAMP, SLIDE DOOR LOCK LINK

main69749-95700iKM36..V4D;CM3#,KM37,YM3#,4#198509-198808

69751BHOLDER, DOOR LOCKING(FOR REAR DOOR)

main69751-95701-04iYM30,40198509-198808

BLUE,BLUE

sub69751-95701

main69751-95701-06iKM36..V4D;CM3#,KM37,YM3#,4#198509-198808

BROWN,BROWN

sub69751-95701

8401

9011906331

main90119-06331

9011908532

main90119-08532

9331116016

main93311-16016

9338116010

main93381-16010

9338516012

main93385-16012

21 parts on this diagram · 1 diagram in section
