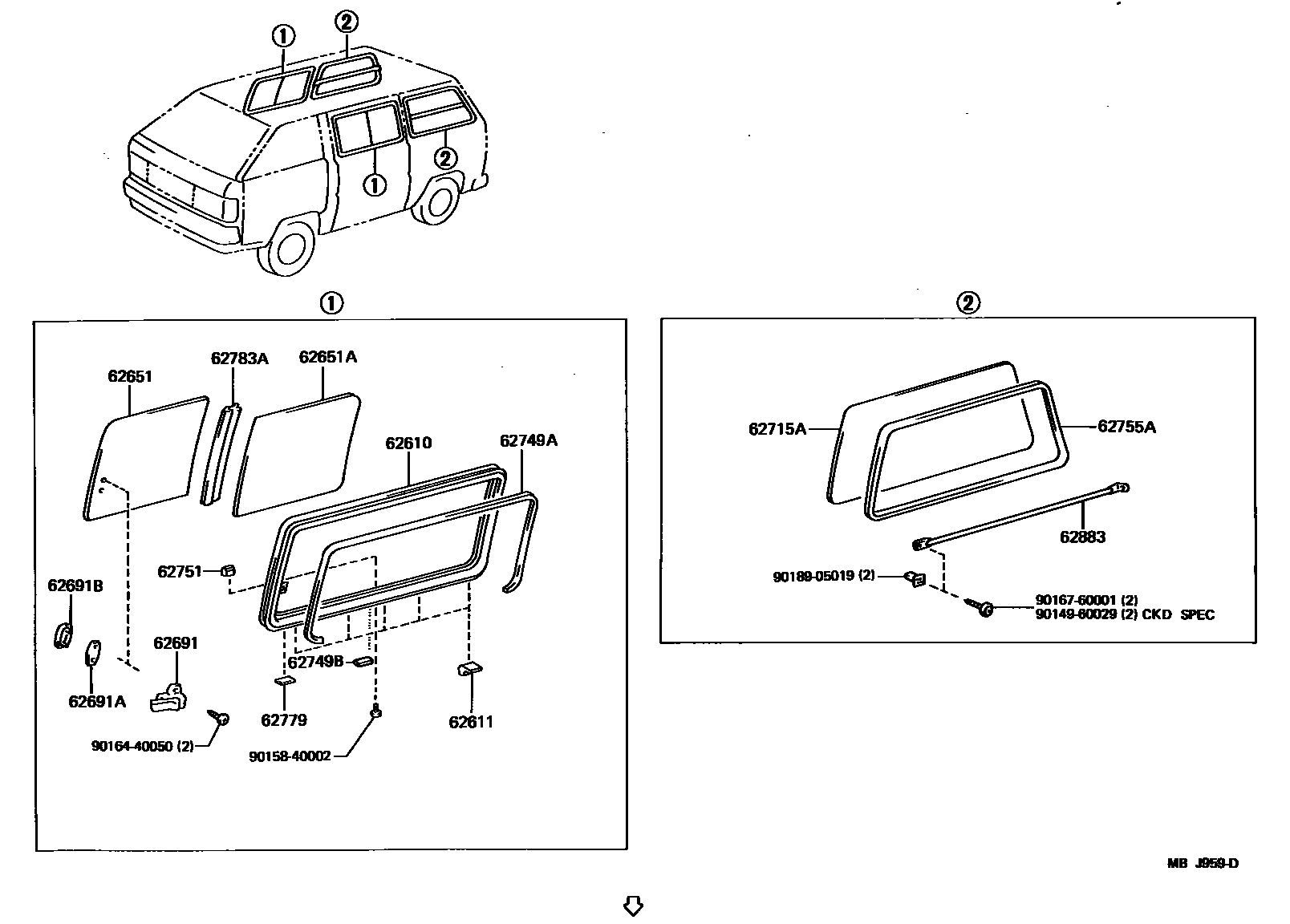

SIDE WINDOW

0001 1 0002 1

62610SASH ASSY, SIDE WINDOW OUTER, NO.1 (FOR SLIDE TYPE)

main62707-95701iCM3#,KM36,YM31,41..RHD..VSG198509-198808

RH

sub62707-27010

main62707-95702iYM30,40198509-198808

RH

sub62707-27020

main62708-95700iCM35,KM36..LHD..VSG198509-198808

LH

sub62708-27010

main62708-95702iKM37198509-198808

LH

sub62708-27020

main67043-95700iCM35,KM3#..LHD..(05S,06S,09S)198509-198808

RH

sub67043-27010

main67044-95700iCM3#,KM36,YM31,41..RHD..VSG198509-198808

LH

sub67044-27010

main67044-95701iYM30,40198509-198808

LH

sub67044-27020

62611SPACER, SIDE WINDOW SUPPORT, NO.1

main62279-95701iCM3#,KM3#,YM30,31,4#..05S,06S,08S,09S198509-198808

62651GLASS, SIDE WINDOW, NO.1, FRONT (FOR SLIDE TYPE)

main62711-95703iCM3#,KM36,YM30,31,4#..RHD..(05S,06S,08S)198509-198808

*TEM,T=4.0,RH,*TEM,T=4.0

sub62711-95704

main62711-95704iKM36..DLX;KM36..RHD..06S;CM3#,YM30,4#..RHD..(05S,08S)198509-198808

*TT,T=4.0,RH,*TT,T=4.0

main62712-95711iCM35,KM3#..LHD..(05S,06S,09S)198509-198808

*TEM,T=4.0,LH,*TEM,T=4.0

sub62712-95712

main62712-95712iCM35,KM3#..LHD..(05S,06S,09S)198509-198808

*TT,T=4.0,LH,*TT,T=4.0

main62732-95715iCM35,KM36..LHD..VSG198509-198808

*TEM,T=4.0,RH,*TEM,T=4.0

sub62732-95716

main62732-95716iKM37198509-198808

*TT,T=4.0,RH,*TT,T=4.0

main62733-95706iCM3#,KM36,YM31,41..RHD..VSG198509-198808

*TEM,T=4.0,LH,*TEM,T=4.0

sub62733-95707

main62733-95707iYM30,40198509-198808

*TT,T=4.0,LH,*TT,T=4.0

62651AGLASS, SIDE WINDOW, NO.1, REAR (FOR SLIDE TYPE)

main62713-95710iCM3#,KM36,YM31,41..RHD..VSG198509-198808

*TEM,T=4.0,RH,*TEM,T=4.0

sub62713-95711

main62713-95711iKM36..DLX;KM36..RHD..06S;CM3#,YM41..RHD..05S198509-198808

*TT,T=4.0,RH,*TT,T=4.0

main62713-95712iYM30,40198509-198808

*TEM,T=4.0,RH,*TEM,T=4.0

sub62713-95713

main62713-95713iYM30,40198509-198808

*TT,T=4.0,RH,*TT,T=4.0

main62714-95706iCM35,KM36..LHD..VSG198509-198808

*TEM,T=4.0,LH,*TEM,T=4.0

sub62714-95707

main62714-95707iCM35,KM36..LHD..VSG198509-198808

*TT,T=4.0,LH,*TT,T=4.0

main62714-95708iKM37198509-198808

*TEM,T=4.0,LH,*TEM,T=4.0

sub62714-95709

main62714-95709iKM37198509-198808

*TT,T=4.0,LH,*TT,T=4.0

main62735-95704iCM35,KM36..LHD..VSG198509-198808

*TEM,T=4.0,RH,*TEM,T=4.0

sub62735-95705

main62735-95705iCM35,KM36..LHD..VSG198509-198808

*TT,T=4.0,RH,*TT,T=4.0

main62735-95706iKM37198509-198808

*TEM,T=4.0,RH,*TEM,T=4.0

sub62735-95707

main62735-95707iKM37198509-198808

*TT,T=4.0,RH,*TT,T=4.0

main62736-95701iCM3#,KM36,YM31,41..RHD..VSG198509-198808

*TEM,T=4.0,LH,*TEM,T=4.0

sub62736-95702

main62736-95702iKM36..DLX;KM36..RHD..06S;CM35,YM41..RHD..05S198509-198808

*TT,T=4.0,LH,*TT,T=4.0

main62736-95703iYM30,40198509-198808

*TEM,T=4.0,LH,*TEM,T=4.0

sub62736-95704

main62736-95704iYM30,40198509-198808

*TT,T=4.0,LH,*TT,T=4.0

62691LOCK, SIDE WINDOW, NO.1 GLASS (FOR SLIDE TYPE)

main62910-95702iCM3#,KM36,YM31,41..VSG198509-198808

62691APACKING, SIDE WINDOW LOCK, NO.1

main62792-95A00iCM3#,KM36,YM31,41..VSG198509-198808

62691BRETAINER, SIDE WINDOW LOCK, NO.1

main62793-95704iCM3#,KM36,YM31,41..VSG198509-198808

62715AGLASS, SIDE WINDOW, NO.2(FOR FIXED TYPE)

main62715-95700iCM3#,KM3#,YM41..STD..(05S,06S,09S)198509-198808

*TEM,T=3.5,RH,*TEM,T=3.5

sub62715-95701

main62715-95701iYM30,40..ARL198509-198808

*TT,T=3.5,RH,*TT,T=3.5

main62716-95700iCM3#,KM36,YM30,31,4#..05S,06S,08S198509-198808

*TEM,T=3.5,LH,*TEM,T=3.5

sub62716-95701

main62716-95701iKM36..06S;CM3#,YM30,4#..05S,08S198509-198808

*TT,T=3.5,LH,*TT,T=3.5

62749ASEAL, SIDE WINDOW, UPPER

main62749-95701iCM35,KM3#..LHD..(05S,06S,09S)198509-198808

LH

main62749-95701iCM35,KM3#..LHD..(05S,06S,09S)198509-198808

RH

main62749-95702iCM35,KM3#..LHD..(05S,06S,09S)198509-198808

RH

sub62749-95701

main62749-95702iCM3#,KM36,YM30,31,4#..RHD..(05S,06S,08S)198509-198808

LH

sub62749-95701

62749BSEAL, SIDE WINDOW FRAME

main62749-95704iCM3#,KM3#,YM30,31,4#..05S,06S,08S,09S198510-198808

62751STOP, SIDE WINDOW FIX GLASS

main62751-95661iCM3#,KM36,YM31,41..VSG198509-198808

62755AWEATHERSTRIP, SIDE WINDOW, NO.2(FOR FIXED TYPE)

main62743-95702iYM30,40..ARL198509-198808

62779PACKING, SIDE WINDOW GLASS, NO.1

main62719-95701iCM3#,KM3#,YM30,31,4#..05S,06S,08S,09S198509-198808

62783ASASH, SIDE WINDOW, CENTER

main62783-95700iCM3#,KM3#,YM30,31,4#..05S,06S,08S,09S198509-198808

62883GUARD ASSY, SIDE WINDOW

main62897-95702iCM35,KM36,YM31,41..RHD..VSG198509-198808

RH

main62897-95703iCM35,KM36..LHD..VSG198509-198808

RH

main62898-95702iCM35,KM36,YM31,41..RHD..VSG198509-198808

LH

main62898-95703iCM35,KM36..LHD..VSG198509-198808

LH

9014960029

main90149-60029

9015840002

main90158-40002

9016440050

main90164-40050

9016760001

main90167-60001

9018905019

main90189-05019

20 parts on this diagram · 2 diagrams in section
