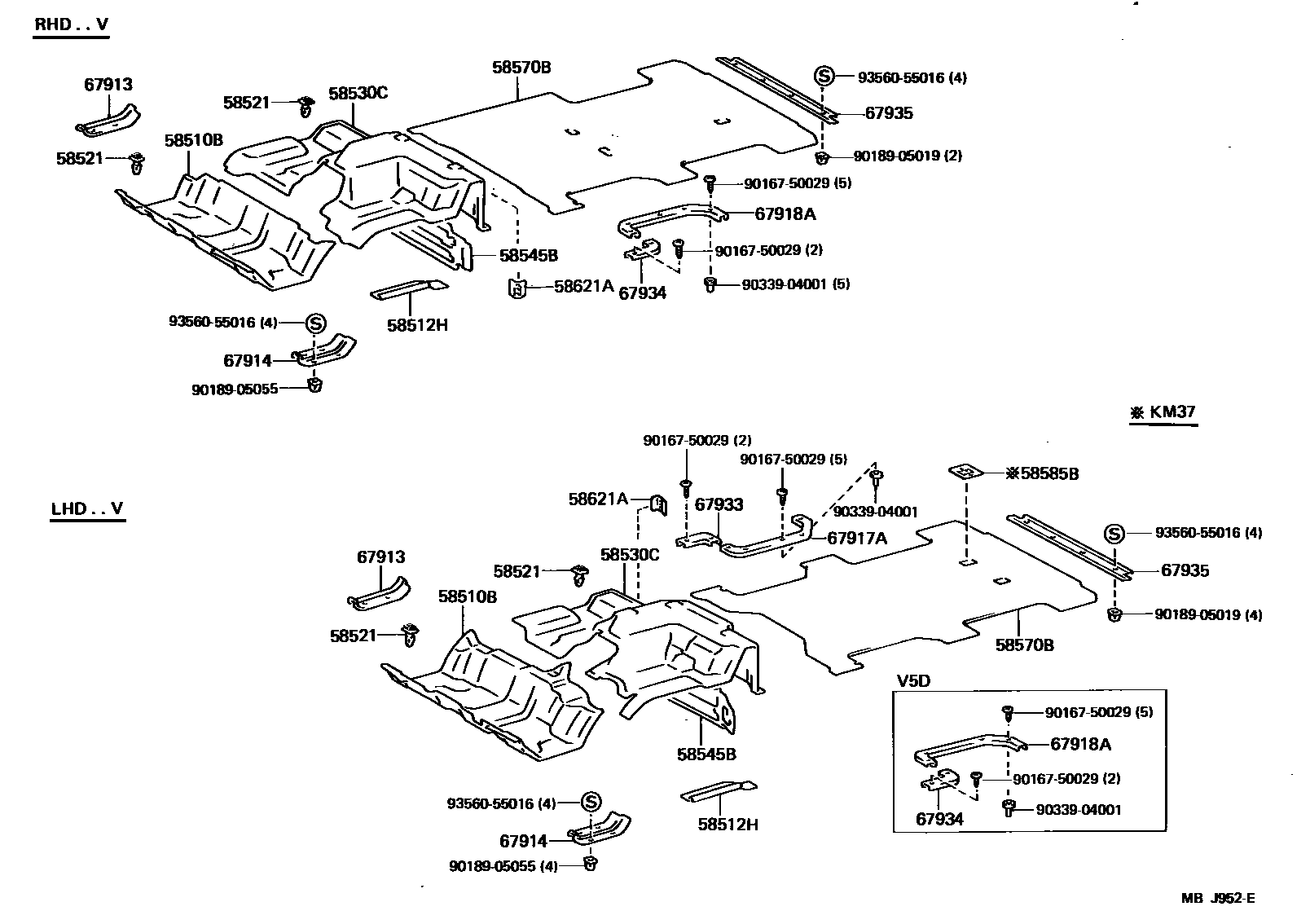

FLOOR MAT & SILENCER PAD
58510BMAT, FRONT FLOOR, FRONT
BROWN,BROWN
BROWN,BROWN
BROWN,BROWN
58512HMAT, FLOOR, FRONT LH
58521HOOK, MALE, NO.1
58530CMAT, FRONT FLOOR, REAR
BROWN,BROWN
BROWN,BROWN
BROWN,BROWN
BROWN,BROWN
BROWN,BROWN
BROWN,BROWN
BROWN,BROWN
BROWN,BROWN
58545BSILENCER, HEADER PANEL
58570BMAT ASSY, REAR FLOOR
BROWN,BROWN
BROWN,BROWN
BROWN,BROWN
W/RR HEATER,BROWN,BROWN
BROWN,BROWN
W/O RR SEAT,BROWN,BROWN
BROWN,BROWN
BROWN,BROWN
W/O RR SEAT,BROWN,BROWN
BROWN,BROWN
BROWN,BROWN
BROWN,BROWN
BROWN,BROWN
BROWN,BROWN
BROWN,BROWN
58585BCOVER, REAR FLOOR SEAT LOCK
BROWN,BROWN
BLUE,BLUE
BROWN,BROWN
58621APLATE, MAT SET, NO.1 LH
67913PLATE, FRONT DOOR SCUFF, RH
67914PLATE, FRONT DOOR SCUFF, LH
67917APLATE, REAR DOOR SCUFF, RH
67918APLATE, REAR DOOR SCUFF, LH
BLUE,BLUE
BROWN,BROWN
BLUE,BLUE
BROWN,BROWN
67933PLATE, QUARTER SCUFF, INNER RH
BROWN,BROWN
67934PLATE, QUARTER SCUFF, INSIDE LH
BLUE,BLUE
BROWN,BROWN
67935PLATE, BACK DOOR SCUFF
9016750029
main90167-50029
9018905019
main90189-05019
9018905055
main90189-05055
9033904001
main90339-04001
9356055016
main93560-55016
20 parts on this diagram · 3 diagrams in section
