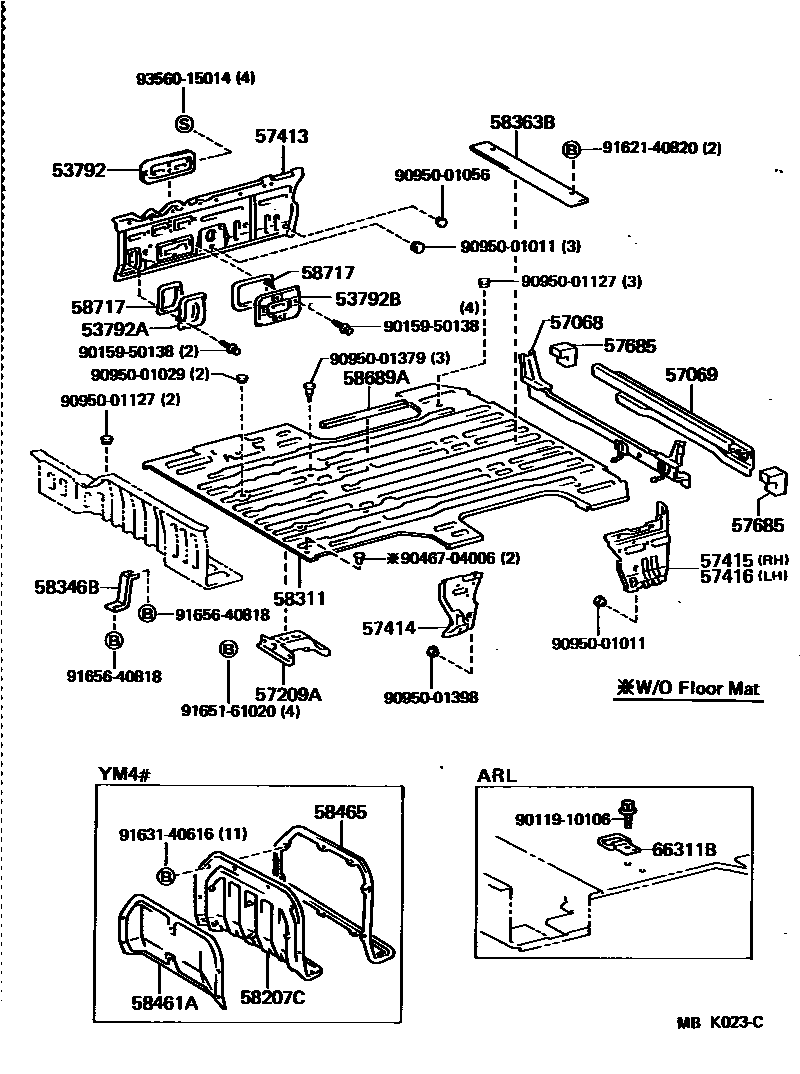

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

53792COVER, COOLER AIR INLET

main53792-95704iYM30,40..ARL¥2,260198509-198808

53792ACOVER, COOLER AIR INLET NO.1

main53792-95706iYM30,40..ARL¥1,410198509-198808

53792BCOVER, COOLER AIR INLET NO.2

main53792-95705iYM30,40..ARL¥1,820198509-198808

57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

main57068-95700iYM30..GEN¥10,600198509-198808

sub57068-95704¥12,000

main57068-95702iYM30,4#..ARL¥12,000198509-198808

57069MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER

main57069-95701iCM3#,KM3#,YM3#,4#¥11,600198509-198808

sub57069-95702¥12,000

sub90333-20001¥70

main57069-95702iCM36,KM36,YM30..(05S,08S)..GEN¥12,000198712-198808

CKD SPEC

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57209-95701iYM3#..5F¥7,500198509-198708

sub57209-95711¥9,600

main57209-95702iYM4#¥7,500198601-198708

sub57209-95715¥7,400

main57209-95703iYM30,35..4FC¥7,500198509-198708

sub57209-95712¥7,400

main57209-95705iCM35¥7,500198509-198708

sub57209-95713¥7,400

main57209-95708iKM3#..LHD¥7,500198509-198708

sub57209-95710¥7,400

main57209-95710iKM3#..LHD¥7,400198708-198808

main57209-95711iYM30,35..5F¥9,600198708-198808

main57209-95712iYM30,35..4FC¥7,400198708-198808

main57209-95713iCM3#¥7,400198708-198808

main57209-95715iYM40¥7,400198708-198808

57413RAIL, FLOOR SIDE, CENTER RH

main57405-95724iKM36,YM41..MRF¥15,700198509-198808

W/RR HEATER

main57405-95725iYM31,41¥16,000198509-198808

main57405-95728iYM30,40..ARL¥15,700198509-198808

W/RR HEATER

sub57405-95720¥15,700

main57405-95729iYM30,40..ARL¥15,700198509-198808

sub57405-95721¥15,700

main57405-95730iCM35,KM36,YM35..VSP..ARL¥16,000198509-198808

main57413-95735iKM36..V5D;CM35,KM3#..LHD..(02S,05S,06S,09S)¥4,870198509-198808

sub57405-95719¥4,680

sub90333-15002¥90

sub90333-25001¥140

57414RAIL, FLOOR SIDE, CENTER LH

main57406-95708iKM37¥15,700198509-198808

W/RR HEATER

main57406-95711iCM35,KM3#..LHD..(02S,05S,06S,09S)¥15,700198509-198808

main57406-95714iYM30,40..ARL¥4,680198509-198808

sub57406-95718¥4,910

sub90333-15002¥90

sub90950-01575¥300

main57414-95718iYM30..GEN¥4,870198509-198808

sub57406-95718¥4,910

sub90333-15002¥90

sub90333-25001¥140

sub90950-01848¥480

57415RAIL, FLOOR SIDE, REAR RH

main57047-95705iCM3#,KM3#,YM31,35,41¥6,700198509-198808

main57047-95707iYM30,40..ARL¥6,700198509-198808

sub57047-95704¥6,700

57416RAIL, FLOOR SIDE, REAR LH

main57048-95705iCM3#,KM3#,YM31,35,41¥6,700198509-198808

main57048-95707iYM30,40..ARL¥6,700198509-198808

sub57048-95704¥6,700

57685DUST PROOF, REAR FLOOR CROSSMEMBER

main57685-95700iCM35,KM3#,YM3#,4#¥850198509-198708

58207CCOVER SUB-ASSY, TRANSMISSION SERVICE HOLE

main58207-95702iYM4#¥8,800198601-198608

main58207-95703iYM40¥8,700198608-198808

main58207-95704iYM41¥8,700198608-198808

58311PAN, REAR FLOOR

main58311-95767iCM3#..RHD..05S¥45,100198509-198808

main58311-95773iCM35,KM36..LHD..VSG¥45,100198509-198808

main58311-95774iKM36..RHD..VSG..GEN¥45,100198509-198808

main58311-95780iKM37¥45,100198509-198808

W/RR HEATER

main58311-95781iKM37¥45,100198509-198808

main58311-95782iYM30..GEN¥45,200198509-198612

main58311-95784iYM30..ARL¥45,100198509-198808

W/RR HEATER

main58311-95785iYM30..ARL¥45,100198509-198808

main58311-95786iYM40¥45,400198601-198808

W/RR HEATER

main58311-95787iYM40¥45,400198601-198808

main58311-95G03iYM41¥45,400198601-198808

main58311-95G09iCM35,KM36..RHD..V4D..VSP..GEN¥45,100198509-198808

main58311-95G12iKM36..RHD..V5D¥45,100198509-198808

main58311-95G15iCM35..LHD..02S¥45,100198509-198808

main58311-95G16iCM35,KM36..VSP..ARL¥45,100198509-198808

main58311-95G17iKM36..06S..ARL198509-198808

main58311-95G18iCM35,KM36..RHD..V4D..VSP..GEN¥45,100198509-198808

W/RR FLOOR MAT

main58311-95G18iCM35..RHD..05S;KM36..RHD..06S..GEN¥45,100198602-198808

W/O RR SEAT

main58311-95G19iKM36..RHD..V5D¥45,100198509-198808

W/RR FLOOR MAT

main58311-95G23iYM31198509-198608

main58311-95G24iKM36..LHD..03S¥45,100198509-198808

main58311-95G25iKM36..LHD..03S¥45,100198509-198808

W/RR FLOOR MAT

main58311-95G26iCM35..LHD..02S¥45,100198509-198808

W/RR FLOOR MAT

main58311-95G26iCM35,KM36..LHD..VSG¥45,100198605-198808

W/O RR SEAT

main58311-95G27iYM35..4FC¥45,100198510-198808

main58311-95G44iYM30..GEN198612-198808

58346BBRACKET, REAR FLOOR HEAT INSULATOR, NO.3

main58348-95700iKM36..RHD..GEN¥680198509-198808

58363BBALANCER, REAR FLOOR, NO.1

main58363-95700iYM31¥22,300198509-198808

RR

main58363-95701iYM31¥22,300198509-198808

FR

58461ASILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1

main59289-95700iYM4#198601-198808

58465PACKING, TRANSMISSION SERVICE HOLE COVER, NO.1

main58465-95702iYM4#¥2,680198601-198808

58689AWEIGHT, REAR FLOOR

main58688-95700iYM4#¥3,680198509-198808

L=460

main58688-95701iCM35,KM36..VSP..ARL¥3,030198509-198808

L=300

58717PACKING, COOLER AIR INLET COVER

main58717-95700iYM30,40..ARL¥1,870198509-198808

RR

main58717-95701iYM30,40..ARL¥1,510198509-198808

FR

sub58717-95700¥1,870

66311BHOOK, ROPE

main66311-95J00iCM35,KM36,YM35,41..ARL¥520198509-198808

9011910106

main90119-10106¥230

9015950138

main90159-50138¥70

9046704006

main90467-04006¥250

9095001011

main90950-01011¥170

9095001029

main90950-01029¥280

9095001056

main90950-01056¥230

9095001127

main90950-01127¥360

9095001379

main90950-01379¥250

9095001398

main90950-01398¥100

9162140820

main91621-40820¥130

9163140616

main91631-40616¥170

9165161020

main91651-61020¥130

9165640818

main91656-40818¥140

9356015014

main93560-15014¥70

34 parts on this diagram · 6 diagrams in section
