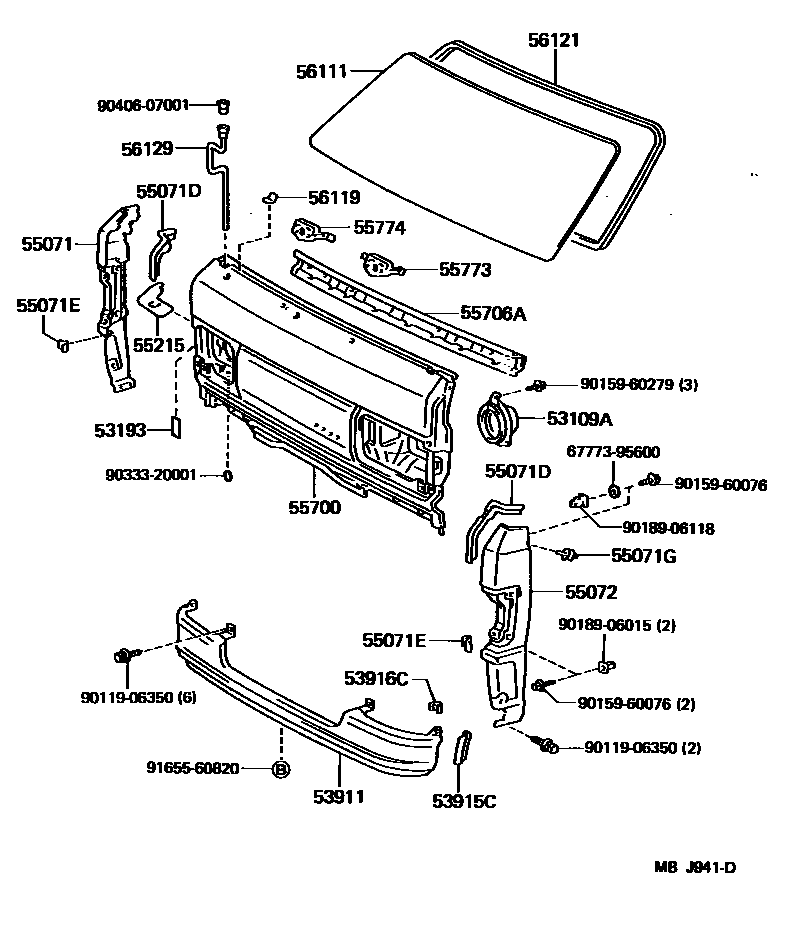

FRONT PANEL & WINDSHIELD GLASS

53109ACOVER SUB-ASSY, HEADLAMP SERVICE HOLE

main53109-95700iCM35,KM3#..LHD198509-198808

53193SEAL, HEADLAMP COVER

main53196-95700iCM35,KM36,YM30,35,4#..ARL198509-198808

53911PANEL, FRONT VALANCE

main53901-95702iCM3#,KM3#,YM3#,4#198509-198808

53915CPROTECTOR, LOWER SHROUD

main53915-95704×2iCM3#,KM3#,YM3#,4#198509-198808

53916CPROTECTOR, LOWER SHROUD, NO.2

main53916-95702×2iCM3#,KM3#,YM3#,4#198509-198808

55071PANEL SUB-ASSY, FRONT SIDE, RH

main53801-95706iCM3#,KM3#,YM3#,4#198509-198808

55071DPROTECTOR, FRONT SIDE PANEL, NO.2

main53823-95702iCM35,KM3#,YM3#,4#198509-198701

RH

main53823-95703iCM3#,KM3#,YM30,35,4#198701-198808

RH

main53824-95702iCM35,KM3#,YM3#,4#198509-198701

LH

main53824-95703iCM3#,KM3#,YM30,35,4#198701-198808

LH

55071EPROTECTOR, FRONT SIDE PANEL, NO.3

main53828-95702×2iCM3#,KM3#,YM3#,4#198509-198808

55071GRETAINER, FRONT SIDE PANEL SET

main53867-95700×2iCM3#,KM3#,YM3#,4#198509-198808

55072PANEL SUB-ASSY, FRONT SIDE, LH

main53802-95708iCM3#,KM36,YM31..RHD..GEN198509-198808

sub53802-95713

main53802-95709iYM30,4#198509-198808

55215PAD, HEADLAMP COVER SILENCER, RH

main55215-95700iCM35..ARL198509-198808

55700PANEL ASSY, FRONT

main55701-95729iCM3#,KM36,YM31..RHD..GEN198509-198807

W/FR HEATER

sub55701-95748

main55701-95731iYM30..GEN198509-198608

sub55701-95754

main55701-95732iKM36..DLX;CM3#..RHD..GEN;KM36..RHD..4H..GEN198509-198807

main55701-95733iCM35,KM3#..LHD198509-198807

W/FR HEATER

sub55701-95747

main55701-95735iCM35,KM3#..LHD198509-198807

main55701-95738iCM35,KM36,YM35,41..ARL198509-198807

main55701-95739iYM30,40..ARL198509-198807

main55701-95745iCM3#,KM36..RHD..GEN198807-198808

W/FR HEATER

sub55701-95754

main55701-95749iCM35,KM3#..LHD198807-198808

sub55701-95755

main55701-95750iKM36..DLX;CM3#..RHD..GEN;KM36..RHD..4H..GEN198807-198808

sub55701-95756

main55701-95751iCM35,KM3#..LHD198807-198808

W/FR HEATER

sub55701-95757

main55701-95752iCM35,KM36,YM35..ARL198807-198808

main55701-95753iYM30,40..ARL198807-198808

55706AREINFORCEMENT SUB-ASSY, FRONT PANEL, UPPER

main55706-95706iCM3#,KM36,YM3#,4#..RHD198509-198808

main55706-95707iCM35,KM3#..LHD198509-198808

55773RETAINER, WIPER SHAFT, CENTER

main55773-95704iCM3#,KM3#,YM3#,4#198509-198808

sub55773-95705

55774RETAINER, WIPER SHAFT SIDE

main55774-95704iCM3#,KM36,YM3#,4#..RHD198509-198808

sub55774-95706

main55774-95705iCM35,KM3#..LHD198509-198808

56111GLASS, WINDSHIELD

main56111-95711iCM3#,KM3#..GEN198509-198808

*ZT,T=5.0,*ZT,T=5.0

main56111-95712iKM36..4H..GEN;CM3#,KM37..GEN198509-198808

*TZT,T=5.0,*TZT,T=5.0

sub56111-95718

main56111-95714iKM36..4H..GEN;CM3#,KM37,YM30,31..GEN198509-198808

*LAM,T=5.3,*LAM,T=5.3

main56111-95716iKM36..4H..GEN;CM3#,KM37..GEN198509-198808

*TL,T=5.3,*TL,T=5.3

main56111-95717iCM35,KM36,YM30,35,4#..ARL198509-198808

*LAM,T=5.3,*LAM,T=5.3,TOP SHADE

56119SEAL, WINDSHIELD GLASS

main56119-95700×2iCM3#,KM3#,YM3#,4#198509-198808

56121WEATHERSTRIP, WINDSHIELD

main56121-95708iCM3#,KM3#,YM31,35,41198509-198808

sub56121-27010

main56121-95709iYM30,40198509-198808

sub56121-27020

56129HOSE, WINDSHIELD DRAIN

main56129-95700×2iCM3#,KM3#,YM3#,4#198509-198808

6777395600

main67773-95600

9011906350

main90119-06350

9015960076

main90159-60076

9015960279

main90159-60279

9018906015

main90189-06015

9018906118

main90189-06118

9033320001

main90333-20001

9040607001

main90406-07001

9165560820

main91655-60820

28 parts on this diagram · 1 diagram in section
