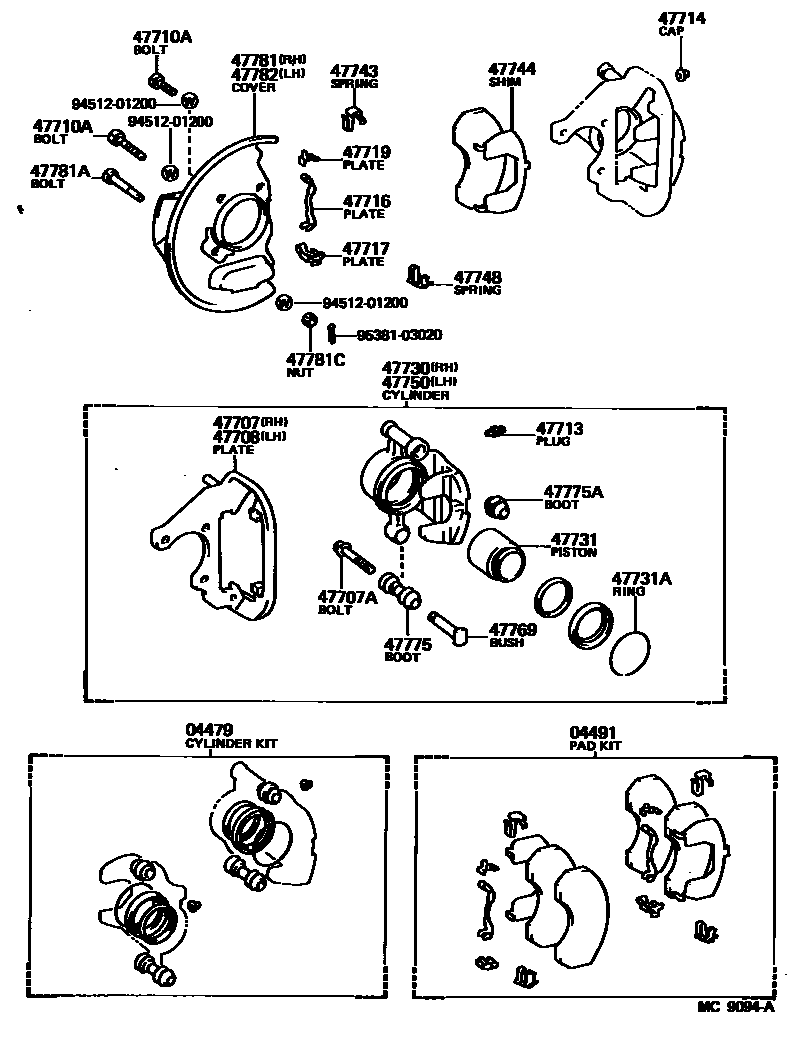

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1 0004 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-27010iYM4#198601-198808

04491PAD KIT, DISC BRAKE, FRONT

main04491-27030iYM4#198601-198608

sub04491-27050

main04491-27050iYM4#198608-198808

sub04465-27080

main04491-28070iCM35,KM36,YM30,35..ARL198509-198808

sub04465-28010

main04491-28190iCM3#,KM3#,YM30..GEN198608-198808

sub04465-28010

47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH

main47707-27010iYM4#198601-198808

main47707-27040iCM3#,KM3#,YM30..GEN198608-198808

main47707-28010iCM35,KM36,YM30,31..GEN198509-198608

sub47707-27040

main47707-28060iCM35,KM36,YM30,35..ARL198509-198808

47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)

main90119-08384iCM3#,KM3#,YM3#,4#198509-198808

47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH

main47708-27010iYM4#198601-198808

main47708-27040iCM3#,KM3#,YM30..GEN198608-198808

main47708-28010iCM35,KM36,YM30,31..GEN198509-198608

sub47708-27040

main47708-28060iCM35,KM36,YM30,35..ARL198509-198808

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12010iCM3#,KM3#,YM3#198509-198808

*12-1.25PX50-26,L=50

main90101-12030iCM3#,KM3#,YM3#198509-198808

*12-1.25PX31-20,L=30

main90101-12123iYM4#198601-198808

*12-1.25PX28.1-20

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iCM3#,KM3#,YM3#,4#198509-198808

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iCM3#,KM3#,YM3#,4#198509-198808

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-28020iCM3#,KM3#,YM30,31..GEN198509-198808

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-14050iCM35,KM3#,YM3#,4#198509-198611

RH

main47718-14090iCM35,KM3#,YM3#,4#198509-198611

LH

47719PLATE, FRONT DISC BRAKE PAD GUIDE

main47736-14030iCM3#,KM3#,YM3#,4#198509-198808

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-27020iYM4#198601-198808

main47730-27030iCM35,KM36,YM30,35..ARL198509-198608

main47730-27060iCM3#,KM3#,YM30..GEN198608-198808

main47730-27070iCM35,KM36,YM30,35..ARL198608-198808

main47730-28012iCM35,KM36,YM30,31..GEN198509-198608

47731PISTON, FRONT DISC BRAKE

main47731-14090iCM3#,KM3#,YM3#,4#198509-198808

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-69002iCM3#,KM3#,YM3#,4#198509-198808

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-14040iCM3#,KM3#,YM3#,4#198509-198808

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-14070iYM4#198601-198808

INNER

main47744-14080iYM4#198601-198608

OUTER

main47744-27020iYM4#198608-198808

OUTER

main47744-28010iCM3#,KM3#,YM30,31..GEN198509-198808

sub47744-28020

main47744-28020iCM35,KM36,YM30,35..ARL198509-198808

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-14050iCM3#,KM3#,YM3#,4#198509-198808

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-27020iYM4#198601-198808

main47750-27030iCM35,KM36,YM30,35..ARL198509-198608

main47750-27060iCM3#,KM3#,YM30..GEN198608-198808

main47750-27070iCM35,KM36,YM30,35..ARL198608-198808

main47750-28012iCM35,KM36,YM30,31..GEN198509-198608

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-28010iCM3#,KM3#,YM3#,4#198509-198808

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-17010iCM3#,KM3#,YM3#198509-198808

47775ABOOT, PIN

main47776-14010iCM3#,KM3#,YM3#,4#198509-198808

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-28050iCM3#,KM3#,YM30,31..GEN198509-198808

main47781-28060iCM35,KM36,YM30,35..ARL198509-198808

main47781-28080iYM4#198601-198808

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90102-12001iCM3#,KM3#,YM3#198509-198808

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main94145-71200iCM3#,KM3#,YM3#198509-198808

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-28050iCM3#,KM3#,YM30,31..GEN198509-198808

main47782-28060iCM35,KM36,YM30,35..ARL198509-198808

main47782-28080iYM4#198601-198808

9451201200

main94512-01200

9538103020

main95381-03020
