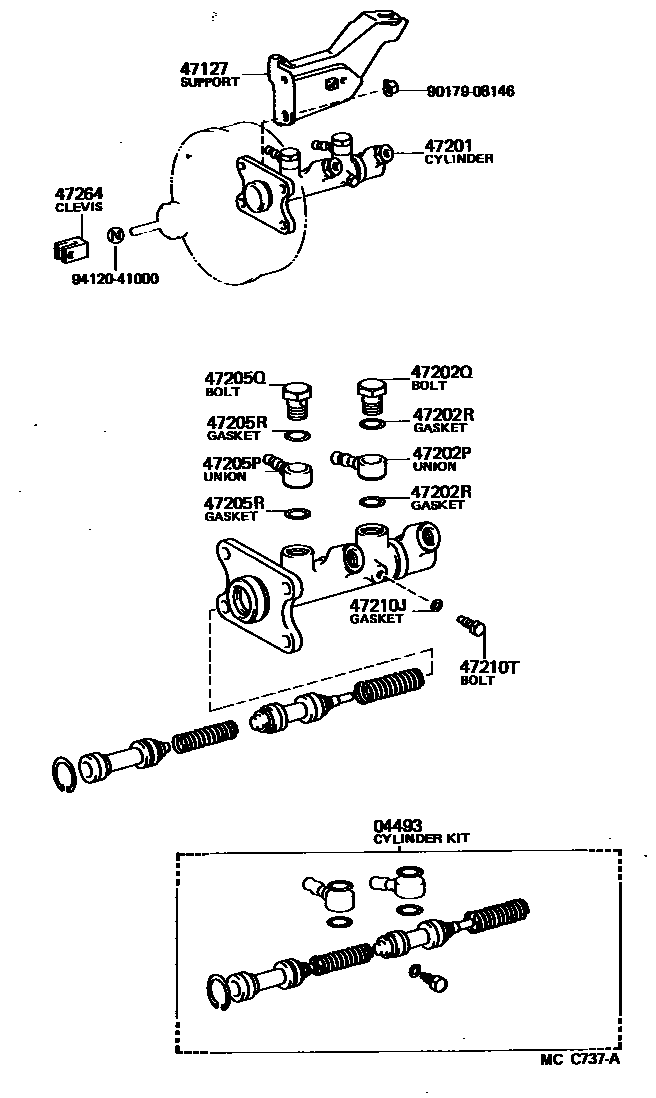

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-27080iCM3#,KM3#,YM3#,4#198509-198808

47127SUPPORT SUB-ASSY, BRAKE MASTER CYLINDER

main55175-95710iCM3#,KM36,YM3#,4#..RHD198509-198808

sub55175-27010

main55175-95711iCM35,KM3#..LHD198509-198808

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-27140iCM35,KM3#..LHD198509-198808

main47201-27150iCM3#,KM36,YM3#,4#..RHD198509-198808

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-27130iCM3#,YM30..RHD..GEN198509-198808

W/LEVEL WARNING

main47220-27140iKM36..RHD..GEN198509-198808

W/LEVEL WARNING

main47220-28100iCM3#,YM3#,4#..RHD..MTM198509-198808

main47220-28110iYM30,35..4FC198509-198808

main47220-28120iCM35..LHD198509-198808

main47220-28130iKM3#..LHD198509-198808

main47220-28140iCM35..LHD198509-198808

W/LEVEL WARNING

main47220-28150iKM3#..LHD198509-198808

W/LEVEL WARNING

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90405-10003iCM3#,KM3#,YM3#,4#198509-198808

47202QBOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90401-16002iCM3#,KM3#,YM3#,4#198509-198808

47202RGASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90430-16242iCM3#,KM3#,YM3#,4#198509-198808

47205PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER REAR SIDE)

main90405-10003iCM3#,KM3#,YM3#,4#198509-198808

47205QBOLT, RSVR UNION, NO.2(FOR BRAKE MASTER CYLINDER RR SIDE)

main90401-16002iCM3#,KM3#,YM3#,4#198509-198808

47205RGASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR SIDE)

main90430-16242iCM3#,KM3#,YM3#,4#198509-198808

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iCM3#,KM3#,YM3#,4#198509-198808

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iCM3#,KM3#,YM3#,4#198509-198808

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-10080iCM3#,KM3#,YM3#,4#198509-198808

9017908146

main90179-08146

9412041000

main94120-41000

15 parts on this diagram · 2 diagrams in section
